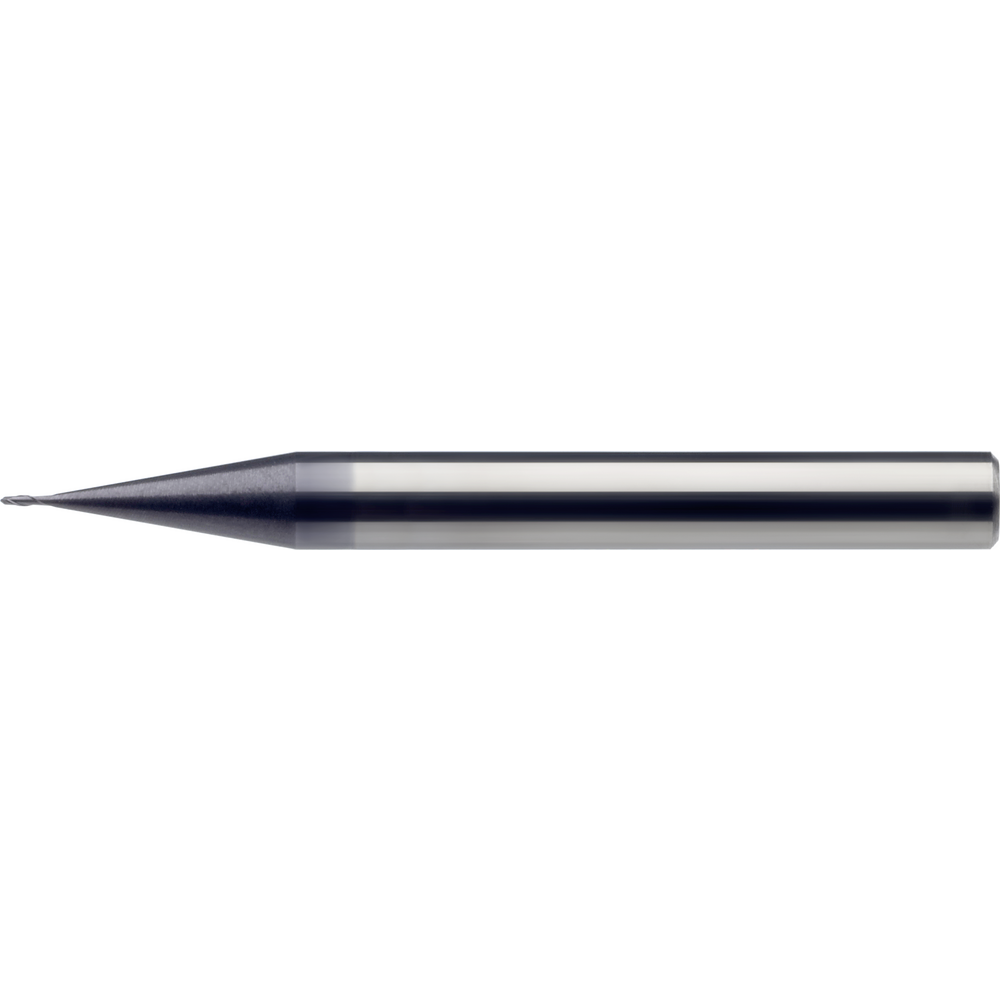

Solid carbide mini-radius milling cutter 30° 0,2mm, Z=2 RockTec-52

Solid carbide mini-radius milling cutter 30° 0,2mm, Z=2 RockTec-52
Solid carbide mini-radius milling cutter 30° 0,2mm, Z=2 RockTec-52 Solid carbide mini-radius milling cutter 30° 0,2mm, Z=2 RockTec-52
Price:
62,80 €
prices excl. vat plus shipping costs

Stock status
in stock
Add to shopping cart
Tool Finder

Ordered by 19:30 - delivered tomorrow.

RockTec 52 mini radius milling cutter
  • Short, stable design for machining materials up to 52 HRC
  • Cutting edge tolerance: at Ø 0.1 – 0.7 mm = 0/– 0.012 mm, at Ø 0.8 – 0.9 mm = 0/– 0.020 mm
  • Radius tolerance: 0/-0.01 mm
  • Cutting material: ultra-fine grain solid carbide
  • Rake angle 3°

Article no./ATORN no.
2570250002 / 11860118
Packaging unit
1
Catalogue page
KS-0522
Cutting values
SW-0754

Technical characteristics

Application direction milling Lining, ramping and drilling
Coating AlTiN
Coolant supply External
Cutting data Cutting angle Information - yes
Cutting material Solid carbide
D 0,2 mm
D1 4 mm
Durchmesser max. 0,9 mm
Durchmesser min. 0,2 mm
Durchmesser min./max. 0,2-0,9 mm
Eignung Edelstahl gesamt 2
Eignung nicht Eisen gesamt 3
Eignung Titan/Nickel/Super gesamt 2
Feed for side milling fz steel < 1400 mm² 0,004 mm/tooth
fitness hartl total 2
Form Radius
fz steel 1300 0,003 mm
Geeignet für Werkstoffgruppe H 2
Geeignet für Werkstoffgruppe K 1
Geeignet für Werkstoffgruppe M 2
Geeignet für Werkstoffgruppe N 3
Geeignet für Werkstoffgruppe P 1
Geeignet für Werkstoffgruppe S 3
L 40 mm
L1 0,4 mm
Overall length Normal
R 0,1 mm
Rake angle 3 °
Surface RockTec 52
Tolerance of cutting edge diameter 0/-0,012
Tolerance of shank diameter h6
Tool holding device HA parallel shank
Twist angle 30°
Type N
Z 2 pc.

Usage characteristics

cast iron GG/GTS
cast iron GGG
hardened steel ≤ 55 HRC
stainless steel austenitic
stainless steel duplex
stainless steel ferrit./martens.
steel < 1000 N/mm²
steel < 1400 N/mm²
steel < 700 N/mm²
superalloys Fe/NiCo based < 30 HRC
superalloys Fe/NiCo based ≥ 30 HRc
titanium alloys

very suitable
suitable
