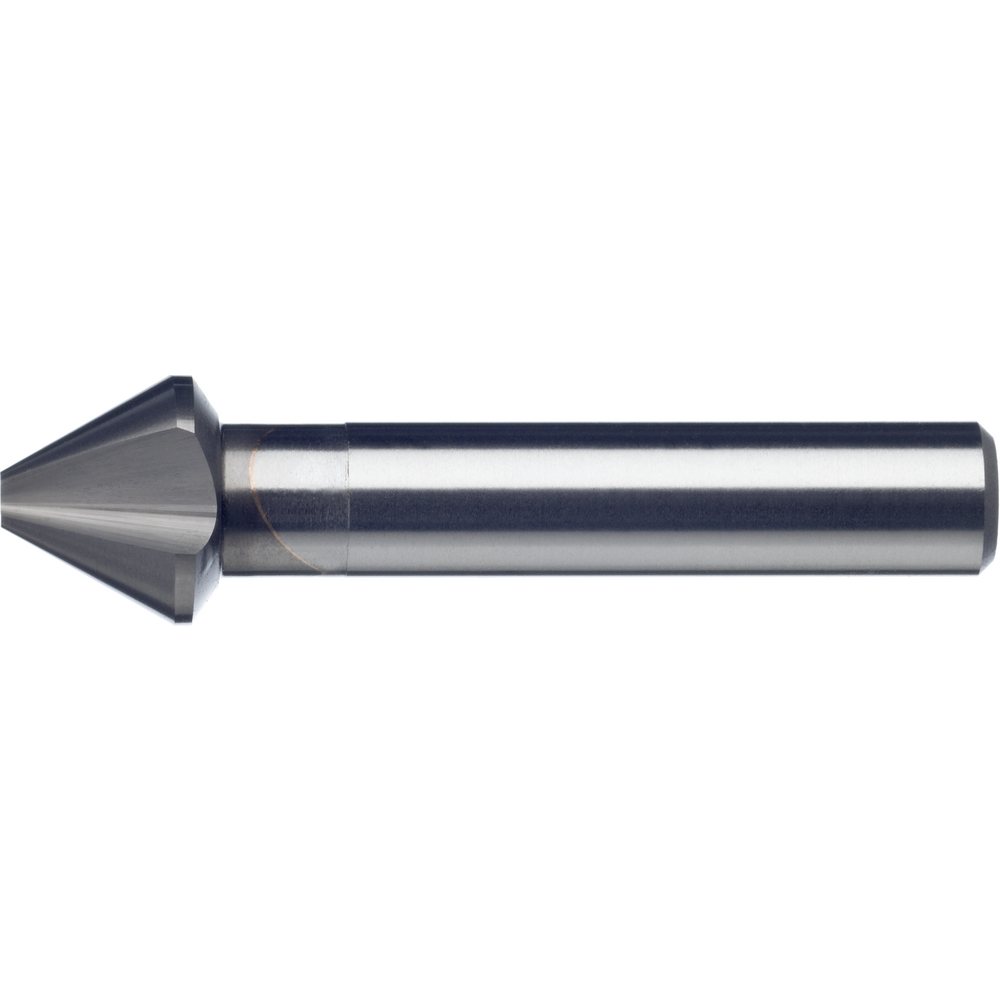

Solid carbide deburring countersink sim. to. DIN334C 60° 8mm

Solid carbide deburring countersink sim. to. DIN334C 60° 8mm
Solid carbide deburring countersink sim. to. DIN334C 60° 8mm Solid carbide deburring countersink sim. to. DIN334C 60° 8mm
Price:
201,00 €
prices excl. vat plus shipping costs

Stock status
subsequent delivery
External stock
available
Add to shopping cart
Tool Finder
Smooth countersinks, high endurance

Taper and deburring countersinks
  • 3 cutting edges, radially relief-ground
  • Shank tolerance h9
  • Straight shank
  • Cutting material: solid carbide
  • Design: Ø 8 mm in solid carbide, Ø 10 - 25 mm solid carbide head and soldered shank
  • We recommend the carbide version for machining solid steels.

Smooth countersinks, high endurance

Taper and deburring countersinks
  • 3 cutting edges, radially relief-ground
  • Shank tolerance h9
  • Straight shank
  • Cutting material: solid carbide
  • Design: Ø 8 mm in solid carbide, Ø 10 - 25 mm solid carbide head and soldered shank
  • We recommend the carbide version for machining solid steels.

Article no./ATORN no.
1501330080 / 10644000
Packaging unit
1
Catalogue page

Technical characteristics

Angle of the tip - S 60 °
Angle of the tip - S 60 °
Anschlussdurchmesser 5,7 mm
Coating uncoated
Coating uncoated
Coolant supply External
Coolant supply External
Countersink angle 60 °
Countersink angle 60 °
Cutting data Cutting angle Information - yes
Cutting data Cutting angle Information - yes
Cutting material HM
Cutting material HM
D 8 mm
D 8 mm
D1 6 mm
D1 6 mm
DIN 334
DIN 334
Drallwinkel 0°
Eignung Edelstahl gesamt 1
Eignung nicht Eisen gesamt 1
Eignung Titan/Nickel/Super gesamt 2
f Stahl 1300 0,08 mm/rev
Feed f steel < 1000 N/mm² 0,07 mm/rev
Feed f steel < 1000 N/mm² 0,07 mm/rev
fitness hartl total 3
Form C
Form C
Konischer Übergang Halskontur (xsg) 9,6 mm
Kraglänge 14 mm
L 50 mm
L 50 mm
Nutzlänge 5,2 mm
Schaftlänge 40,4 mm
Schaftlänge berechnet 40,4 mm
Spannutlänge 7,2 mm
Surface Uncoated
Surface Uncoated
Tip diameter 2 mm
Tip diameter 2 mm
Tolerance of shank diameter h9
Tolerance of shank diameter h9
Tool holding device HA parallel shank
Tool holding device HA parallel shank
Type Kegelsenker 60°
Type Kegelsenker 60°
Z 3 pc.
Z 3 pc.

Usage characteristics

aluminium < 8 % Si
aluminium < 8 % Si
aluminium ≥ 8 % Si
aluminium ≥ 8 % Si
brass long
brass long
brass short
brass short
bronze long
bronze long
bronze short
bronze short
cast iron GG/GTS
cast iron GG/GTS
cast iron GGG
cast iron GGG
plastic
plastic
stainless steel austenitic
stainless steel austenitic
stainless steel ferrit./martens.
stainless steel ferrit./martens.
steel < 1000 N/mm²
steel < 1000 N/mm²
steel < 1400 N/mm²
steel < 1400 N/mm²
steel < 700 N/mm²
steel < 700 N/mm²
superalloys Fe/NiCo based < 30 HRC
superalloys Fe/NiCo based < 30 HRC
superalloys Fe/NiCo based ≥ 30 HRc
superalloys Fe/NiCo based ≥ 30 HRc
titanium alloys
titanium alloys

very suitable
suitable
