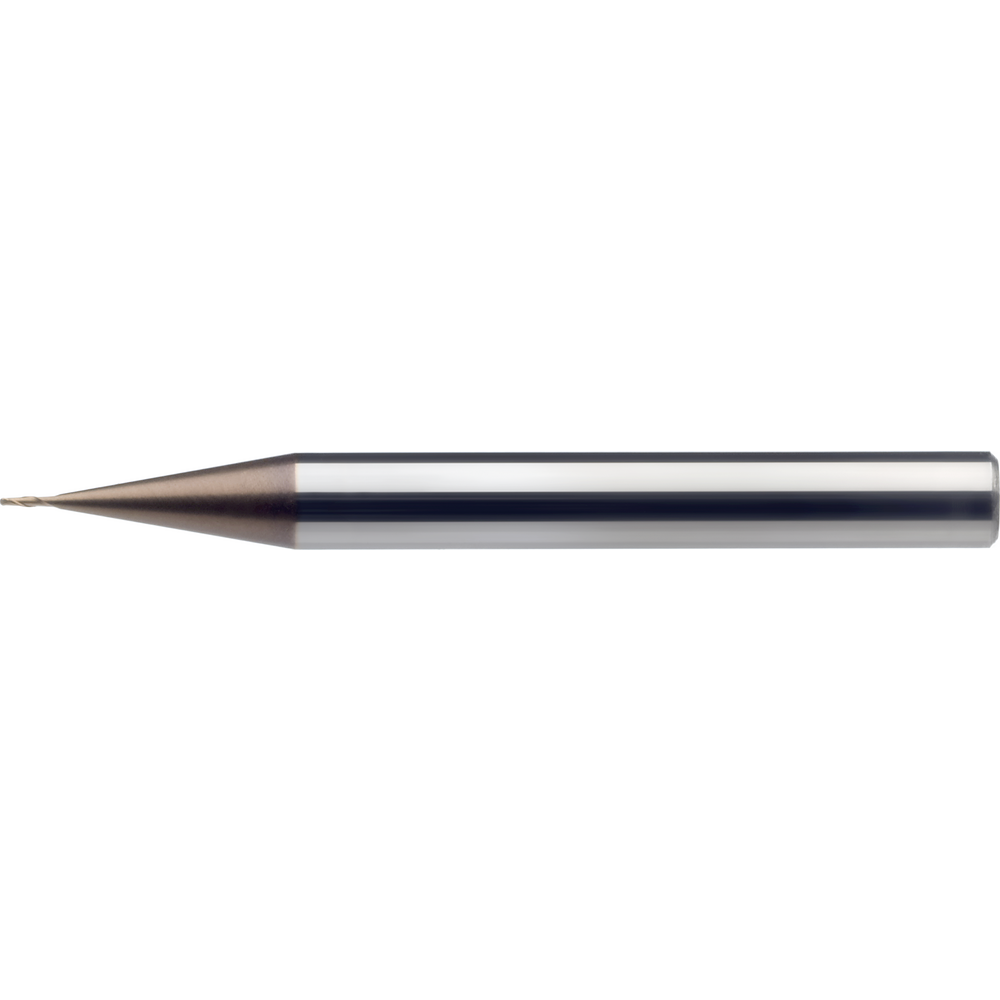

Solid carbide mini-radius milling cutter 30° 0,2mm, Z=2 RockTec-65

Solid carbide mini-radius milling cutter 30° 0,2mm, Z=2 RockTec-65
Solid carbide mini-radius milling cutter 30° 0,2mm, Z=2 RockTec-65 Solid carbide mini-radius milling cutter 30° 0,2mm, Z=2 RockTec-65
Price:
70,00 €
prices excl. vat plus shipping costs

Stock status
in stock
External stock
available
Add to shopping cart
Tool Finder

Ordered by 19:30 - delivered tomorrow.

RockTec 65 mini radius milling cutter
  • Short, stable design for machining materials up to 65 HRC
  • Cutting edge tolerance: at Ø 0.1 – 0.7 mm = 0/– 0.012 mm, at Ø 0.8 – 0.9 mm = 0/– 0.020 mm
  • Radius tolerance: 0/-0.01 mm
  • Cutting material: ultra-fine grain solid carbide
  • Rake angle -5°

Article no./ATORN no.
2570260002 / 11860518
Packaging unit
1
Catalogue page
KS-0522
Cutting values
SW-0775

Technical characteristics

Application direction milling Lining, ramping and drilling
Coating TiSiN
Coolant supply External
Cutting data Cutting angle Information - yes
Cutting material Solid carbide
D 0,2 mm
D1 4 mm
Durchmesser max. 0,9 mm
Durchmesser min. 0,2 mm
Durchmesser min./max. 0,2-0,9 mm
Eignung Edelstahl gesamt 3
Eignung nicht Eisen gesamt 3
Eignung Titan/Nickel/Super gesamt 3
Feed for side milling fz hardened steel ≥ 60 HRc 0,0025 mm/tooth
fitness hartl total 1
Form Radius
fz hard 52 HRC 0,002 mm
Geeignet für Werkstoffgruppe H 1
Geeignet für Werkstoffgruppe K 3
Geeignet für Werkstoffgruppe M 3
Geeignet für Werkstoffgruppe N 3
Geeignet für Werkstoffgruppe P 1
Geeignet für Werkstoffgruppe S 3
L 40 mm
L1 0,4 mm
Overall length Normal
R 0,1 mm
Rake angle -5 °
Surface RockTec 65
Tolerance of cutting edge diameter 0/-0,012
Tolerance of shank diameter h6
Tool holding device HA parallel shank
Twist angle 30°
Type H
Z 2 pc.

Usage characteristics

hardened steel < 60 HRc
hardened steel ≤ 55 HRC
hardened steel ≤ 65 HRC
steel < 1400 N/mm²
superalloys Fe/NiCo based < 30 HRC
superalloys Fe/NiCo based ≥ 30 HRc
titanium alloys

very suitable
suitable
