Magnetic measuring+clamping V-block LxWxH=70x45x70mm f. workpiece 2-40mm harden.

Magnetic measuring+clamping V-block LxWxH=70x45x70mm f. workpiece 2-40mm harden.
Magnetic measuring+clamping V-block LxWxH=70x45x70mm f. workpiece 2-40mm harden.
Price:
479,00 €
prices excl. vat plus shipping costs

Stock status
subsequent delivery
External stock
available
Add to shopping cart
Tool Finder

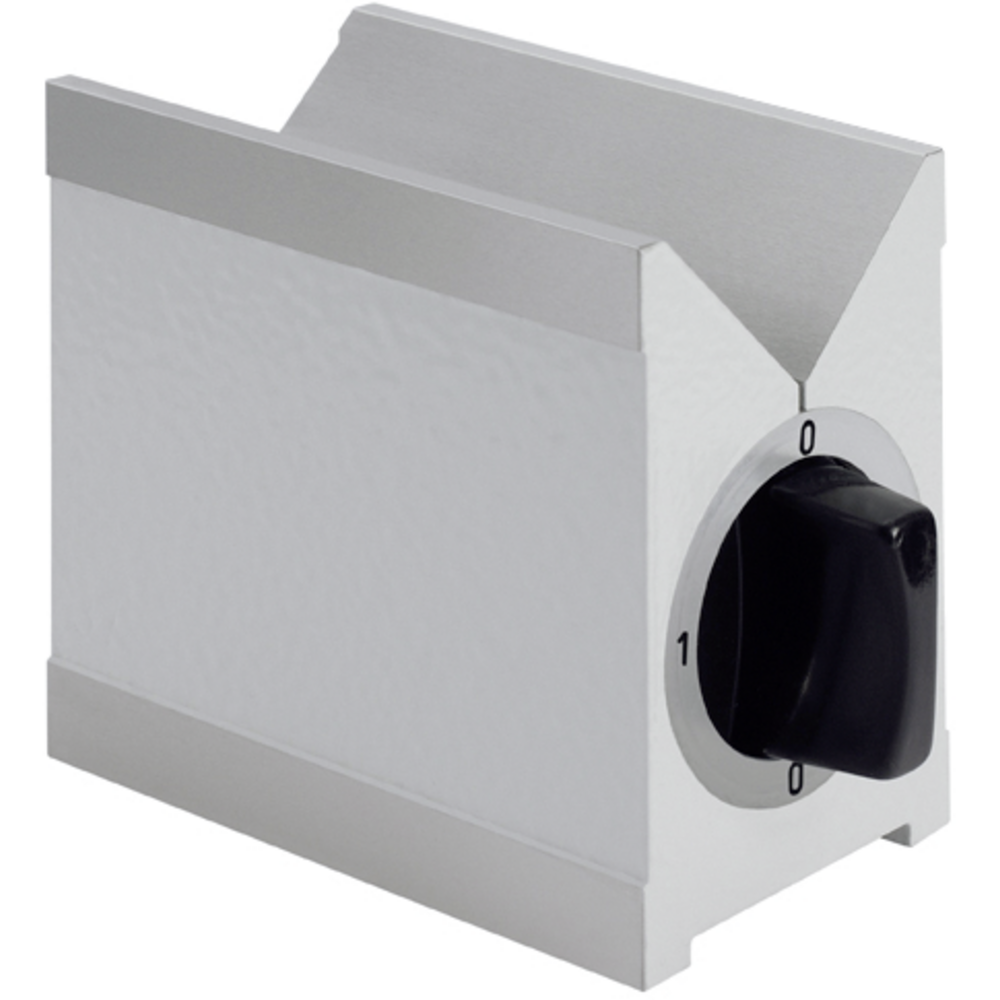

Magnetic measuring and clamping V-block
  • Steel
  • 90° recess
  • Level, parallel and perpendicular finish
  • Magnetic force can be switched on/off
  • Magnetic holding surface on the side opposite the switch
  • Planarity and parallelism tolerance 0.004 mm,
    Perpendicularity tolerance 0.01 mm
  • Supplied in a case

Hardened finish
Article no./ATORN no.
5560190070 / 30380080
Packaging unit
1
Catalogue page
KS-1475

Technical characteristics

Adherence strength 600/Ø 300 N
Breite 45 mm
Ebenheitstoleranz 0,004 mm
for min./max. workpiece diameter 2-40 mm
Höhe 70 mm
Länge 70 mm
Length x width x height 70 x 45 x 70 mm
Werkstückdurchmesser max. 40 mm
Werkstückdurchmesser min. 2 mm
Winkel 90 °
