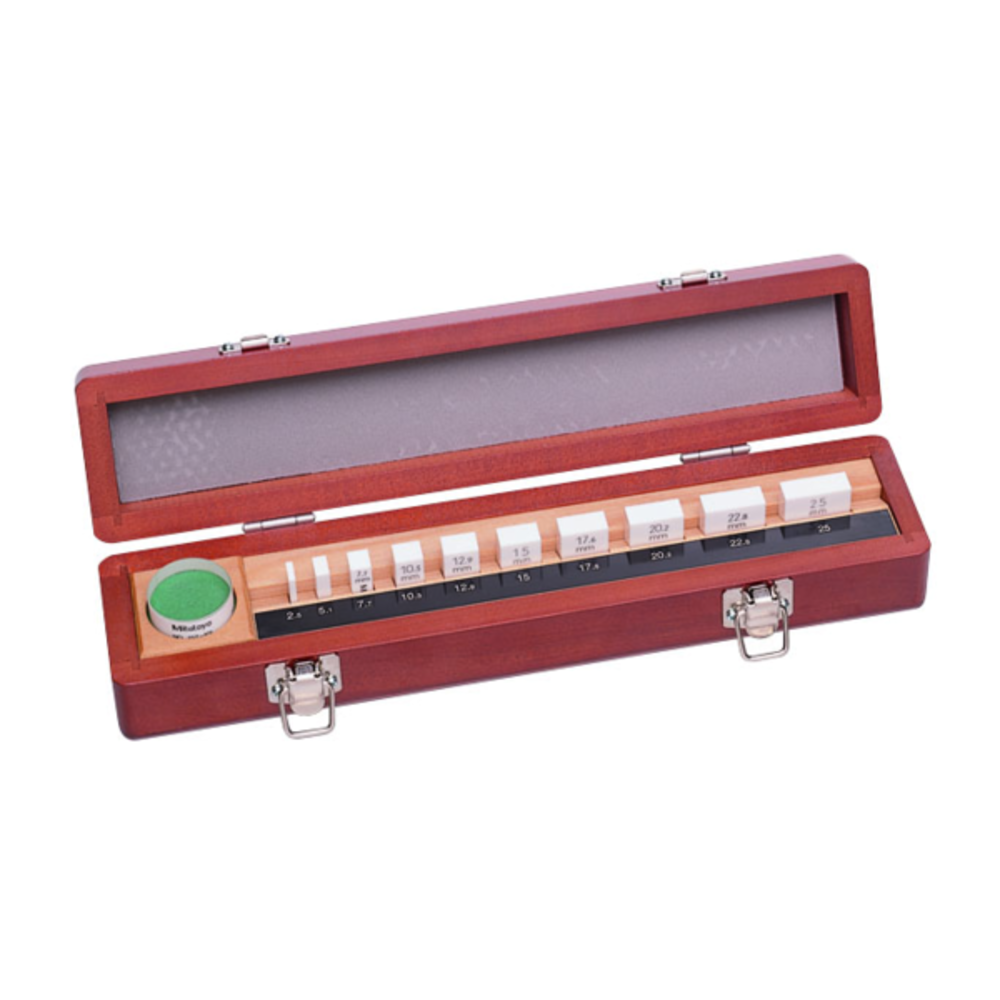

Parallelendmaß-Satz DIN EN ISO 3650 Gen.0 (10 St.) Keramik inkl. Prüfzertifikat

Parallelendmaß-Satz DIN EN ISO 3650 Gen.0 (10 St.) Keramik inkl. Prüfzertifikat
Parallelendmaß-Satz DIN EN ISO 3650 Gen.0 (10 St.) Keramik inkl. Prüfzertifikat
Individual price after or registration
prices excl. vat plus shipping costs

Stock status
subsequent delivery
Gauge block set for monitoring testing equipment
  • For monitoring test equipment
  • For testing pocket callipers of up to 200 mm
  • Test equipment directive VDI/VDE/DGQ 2618, Part 9.1
  • Steel gauge blocks for external measurements
  • Ring gauges for internal measurements
  • Calibration B: 5-point measurement, calibration C: 1-point measurement
  • Set contents
    1 individual gauge block, 30.0 mm
    1 individual gauge block, 41.3 mm
    1 individual gauge block, 131.4 mm
    1 ring gauge, Ø 4 mm
    1 ring gauge, Ø 25 mm
  • Supplied in a wooden box with 1 pair of gloves

Article no./ATORN no.
5360250010
Vendor Article no.
516-156-10
Packaging unit
1
Catalogue page

Technical characteristics

Degree of accuracy 0
for measurement ranges up to 25 mm
Included in delivery Sturdy box + Manufacturer’s test certificate
Individual dimensions 2,5/5,1/7,7/10,3/12,9/15/17,6/20,2/22,8/25 mm + optische Parallele (h=12 mm)
Max. length of application area 25 mm
Nominal dimension in assortment 2,5/5,1/7,7/10,3/12,9/15/17,6/20,2/22,8/25 mm + optische Parallele (h=12 mm) mm
Standard gauge block DIN EN ISO 3650
