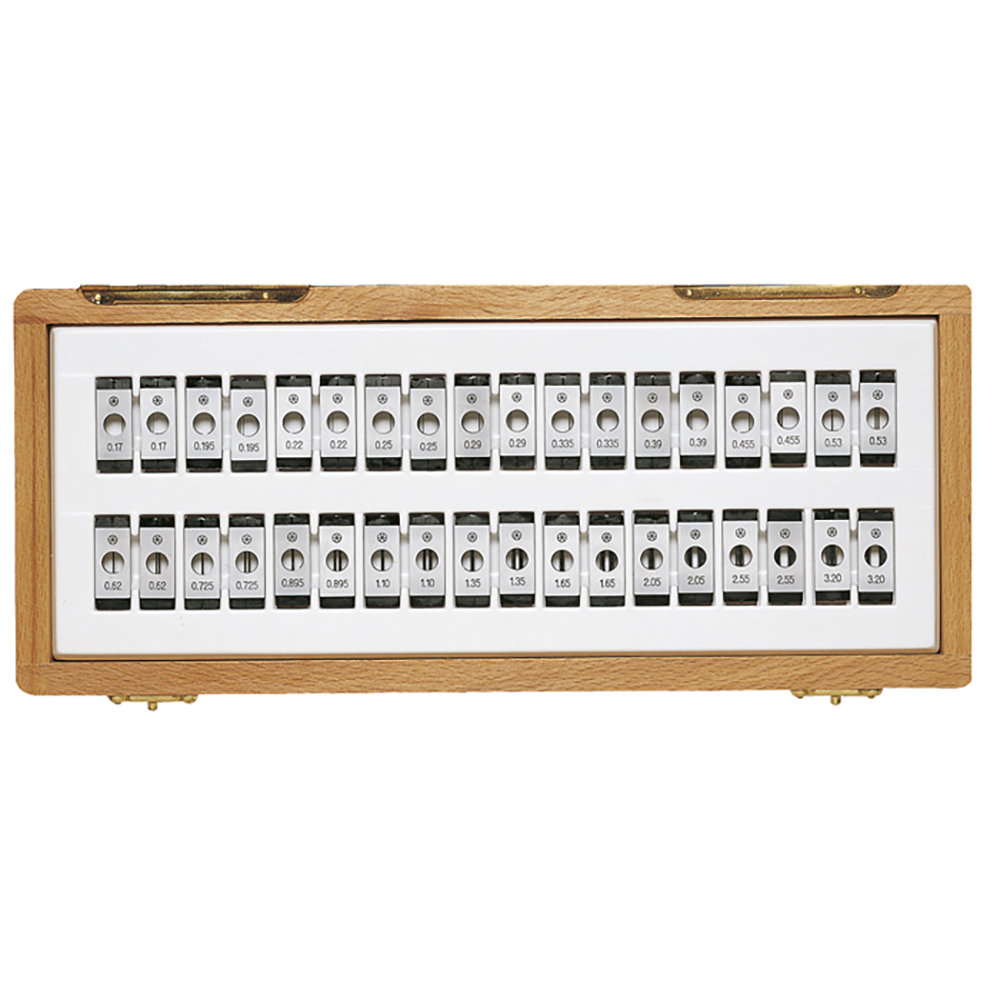

Gewindemessdraht (Aufnahme-ø 6,35mm), 18 Paar

Gewindemessdraht (Aufnahme-ø 6,35mm), 18 Paar
Gewindemessdraht (Aufnahme-ø 6,35mm), 18 Paar
Price:
2.797,00 €
prices excl. vat plus shipping costs

Stock status
subsequent delivery
Add to shopping cart
Tool Finder

Add service

*
*
Thread measuring wires
  • For mounting on micrometers
  • For determining the pitch diameter of outside threads based on the three-wire method
  • hardened, precision-lapped
  • Error margin 0.001mm
  • with locating bore Ø 6.35mm
  • other versions available on request
  • Free software for check gauge calculation is available on our homepage

Check gauge M for metric thread DIN 13 Sheet 1
M3 = 3.113mm / M10 = 10.414mm / M22 = 23.163mm
M4 = 4.305mm / M12 = 12.650mm / M24 = 25.606mm
M5 = 5.153mm / M14 = 15.021mm / M27 = 28.605mm
M6 = 6.346mm / M16 = 17.021mm / M30 = 30.848mm
M8 = 8.282mm / M20 = 21.163mm / M33 = 33.848mm
Set
Thread measuring wires
  • For mounting on micrometers
  • For determining the pitch diameter of outside threads based on the three-wire method
  • hardened, precision-lapped
  • Error margin 0.001mm
  • with locating bore Ø 6.35mm
  • other versions available on request
  • Free software for check gauge calculation is available on our homepage

Check gauge M for metric thread DIN 13 Sheet 1
M3 = 3.113mm / M10 = 10.414mm / M22 = 23.163mm
M4 = 4.305mm / M12 = 12.650mm / M24 = 25.606mm
M5 = 5.153mm / M14 = 15.021mm / M27 = 28.605mm
M6 = 6.346mm / M16 = 17.021mm / M30 = 30.848mm
M8 = 8.282mm / M20 = 21.163mm / M33 = 33.848mm
Set
Article no./ATORN no.
5040195000
Vendor Article no.
313-101
Packaging unit
1
Catalogue page

Technical characteristics

Description messdrähte Ø 0,17/0,195/0,22/0,25/0,29/0,335/0,39/0,455/0,53/0,62/0,725/0,895/1,
Description messdrähte Ø 0,17/0,195/0,22/0,25/0,29/0,335/0,39/0,455/0,53/0,62/0,725/0,895/1,
Holding fixture Ø 6,35 mm
Holding fixture Ø 6,35 mm
