Einbaumessschieber digital 100mm (0,01mm) horizontal, mit Zählrichtungsumkehr

Einbaumessschieber digital 100mm (0,01mm) horizontal, mit Zählrichtungsumkehr
Einbaumessschieber digital 100mm (0,01mm) horizontal, mit Zählrichtungsumkehr
Price:
505,00 €
prices excl. vat plus shipping costs

Stock status
subsequent delivery
Add to shopping cart
Tool Finder

Add service

*
*
Built-in sliding calliper
  • With data output
  • Stainless steel
  • "ABSOLUTE" scale
  • Capacitive measuring system with dirt wiper in the slider
  • Battery life approx. 20,000 hours
  • Readings: 0.01 mm

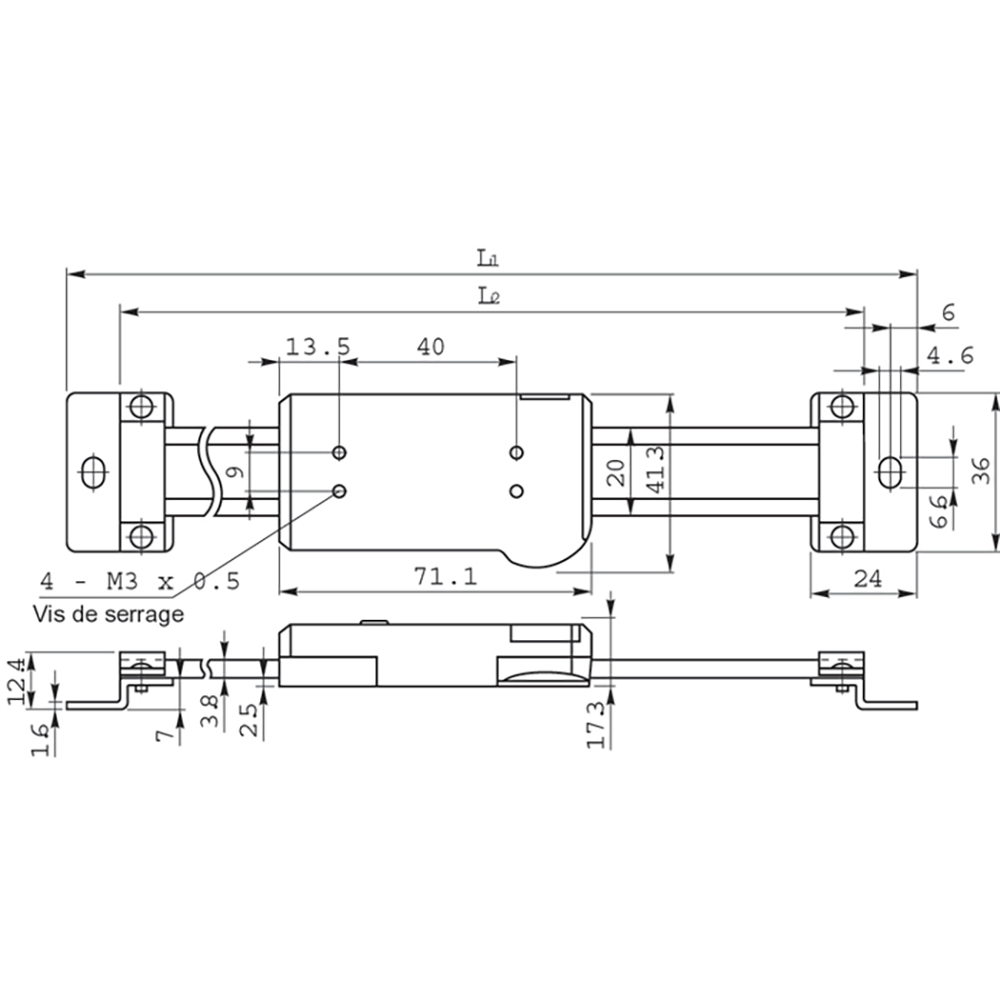

  • With threaded bores (2x M3 x 0.5) on the rear side of the display
  • Functions:
    1 ON/OFF
    2 Zero point at battery change (ORIGIN)
    3 user-defined zeroing (ZERO/ABS), battery check
  • Supplied in cardboard packaging with SR44 battery, no. 500534 0001
  • Optional accessories: Digimatic cable type C, no. 563100 0021 (1 m), no. 563100 0002 (2 m); USB cable type C-USB, no. 563110 0003

Horizontal readings
Built-in sliding calliper
  • With data output
  • Stainless steel
  • "ABSOLUTE" scale
  • Capacitive measuring system with dirt wiper in the slider
  • Battery life approx. 20,000 hours
  • Readings: 0.01 mm
  • With threaded bores (2x M3 x 0.5) on the rear side of the display
  • Functions:
    1 ON/OFF
    2 Zero point at battery change (ORIGIN)
    3 user-defined zeroing (ZERO/ABS), battery check
  • Supplied in cardboard packaging with SR44 battery, no. 500534 0001
  • Optional accessories: Digimatic cable type C, no. 563100 0021 (1 m), no. 563100 0002 (2 m); USB cable type C-USB, no. 563110 0003

Horizontal readings
Article no./ATORN no.
5720050101
Vendor Article no.
572-460
Packaging unit
1
Catalogue page

Technical characteristics

Accuracy 0,03 mm
Data transmission type DIGIMATIC/USB
Design mit Zählrichtungsumkehr
Designation mit Zählrichtungsumkehr
Digit increment 0,01 mm
Error limit 0,03 mm
Max. length measuring range 100 mm
Measurement range 100 mm
Output data format USB
Resolution 0,01 mm
Total length 244 mm
