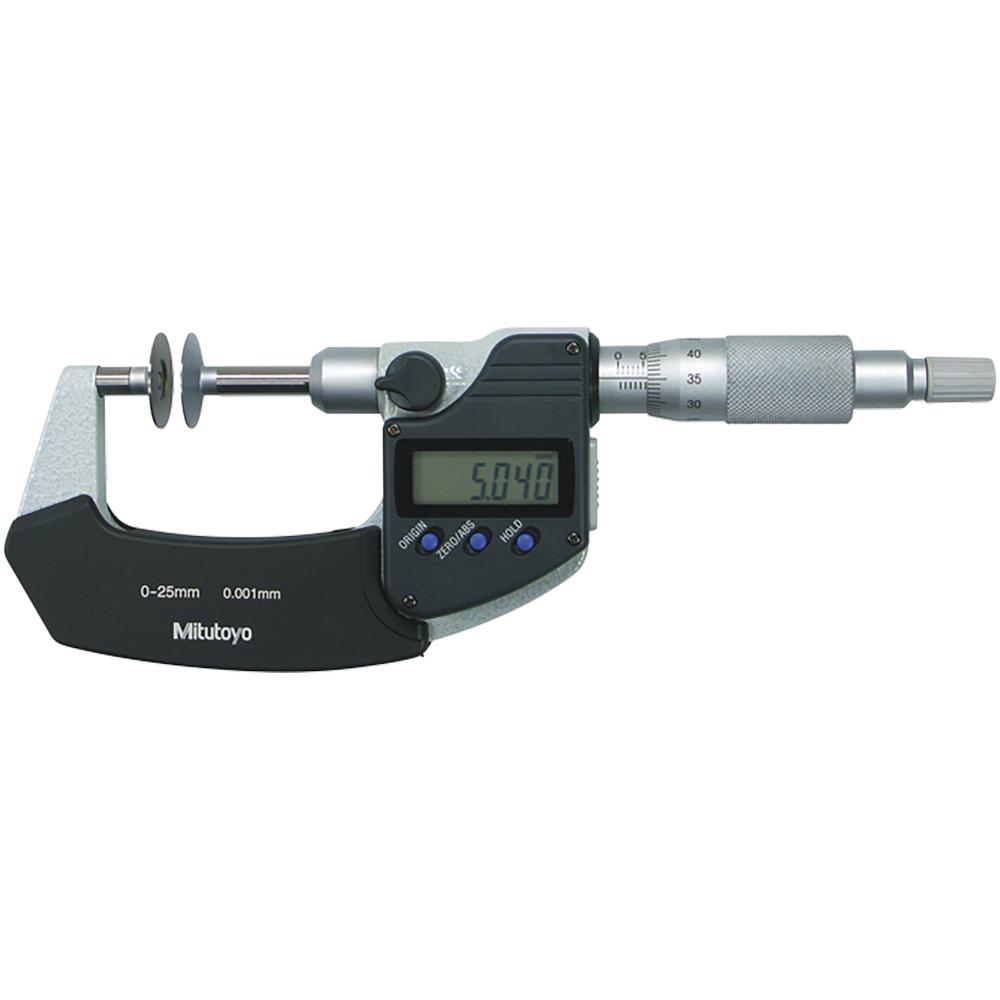

Bügelmessschraube digital Form D6 0-25mm (0,001mm) abgesetzte Tellermessflächen

Bügelmessschraube digital Form D6 0-25mm (0,001mm) abgesetzte Tellermessflächen
Bügelmessschraube digital Form D6 0-25mm (0,001mm) abgesetzte Tellermessflächen
Price:
927,00 €
prices excl. vat plus shipping costs

Stock status
subsequent delivery
Add to shopping cart
Tool Finder

Add service

*
*
Special-purpose digital outside micrometers
  • Sturdy, with ratchet
  • Painted steel frame with hand protection
  • Spindle fixed by means of a lever button
  • Readings via large LCD display with 7.5 mm high digits
  • Scale barrel Ø: 18 mm
  • Spindle Ø: 6.35 mm
  • Calibration includes setting gauge
  • Functions: Pre-set (PRESET), zeroing/absolute (ZERO/ABS), hold value (HOLD), automatic switch-off, battery check
  • Supplied with adjustment key, SR44 battery (no. 500534 0001) and setting gauge
  • Optional accessories: Digimatic cable type B, no. 563100 0011 (1 m), no. 563100 0012 (2 m); USB cable type B-USB, no. 563110 0002

Type D6
  • with disc measuring faces and non-rotating spindle

Special-purpose digital outside micrometers
  • Sturdy, with ratchet
  • Painted steel frame with hand protection
  • Spindle fixed by means of a lever button
  • Readings via large LCD display with 7.5 mm high digits
  • Scale barrel Ø: 18 mm
  • Spindle Ø: 6.35 mm
  • Calibration includes setting gauge
  • Functions: Pre-set (PRESET), zeroing/absolute (ZERO/ABS), hold value (HOLD), automatic switch-off, battery check
  • Supplied with adjustment key, SR44 battery (no. 500534 0001) and setting gauge
  • Optional accessories: Digimatic cable type B, no. 563100 0011 (1 m), no. 563100 0012 (2 m); USB cable type B-USB, no. 563110 0002

Type D6
  • with disc measuring faces and non-rotating spindle

Article no./ATORN no.
5036130025
Vendor Article no.
369-250-30
Packaging unit
1
Catalogue page

Technical characteristics

Data transmission type RS232C/DIGIMATIC/USB
Data transmission type DIGIMATIC/USB
Description nichtdrehende Spindel
Designation nichtdrehende Spindel
Digit increment 0,001 mm
Digit increment 0,001 mm
DIN 863/3
DIN 863/3
Display Digital
Error limit 0,004 mm
Error limit 0,004 mm
Included in delivery Sturdy box
Included in delivery Sturdy box
Measurement range 0-25 mm
Measurement range 0-25 mm
Measuring spindle increments 0,5 mm
Measuring spindle increments 0,5 mm
Measuring surface diameter 20 mm
Measuring surface diameter 20 mm
