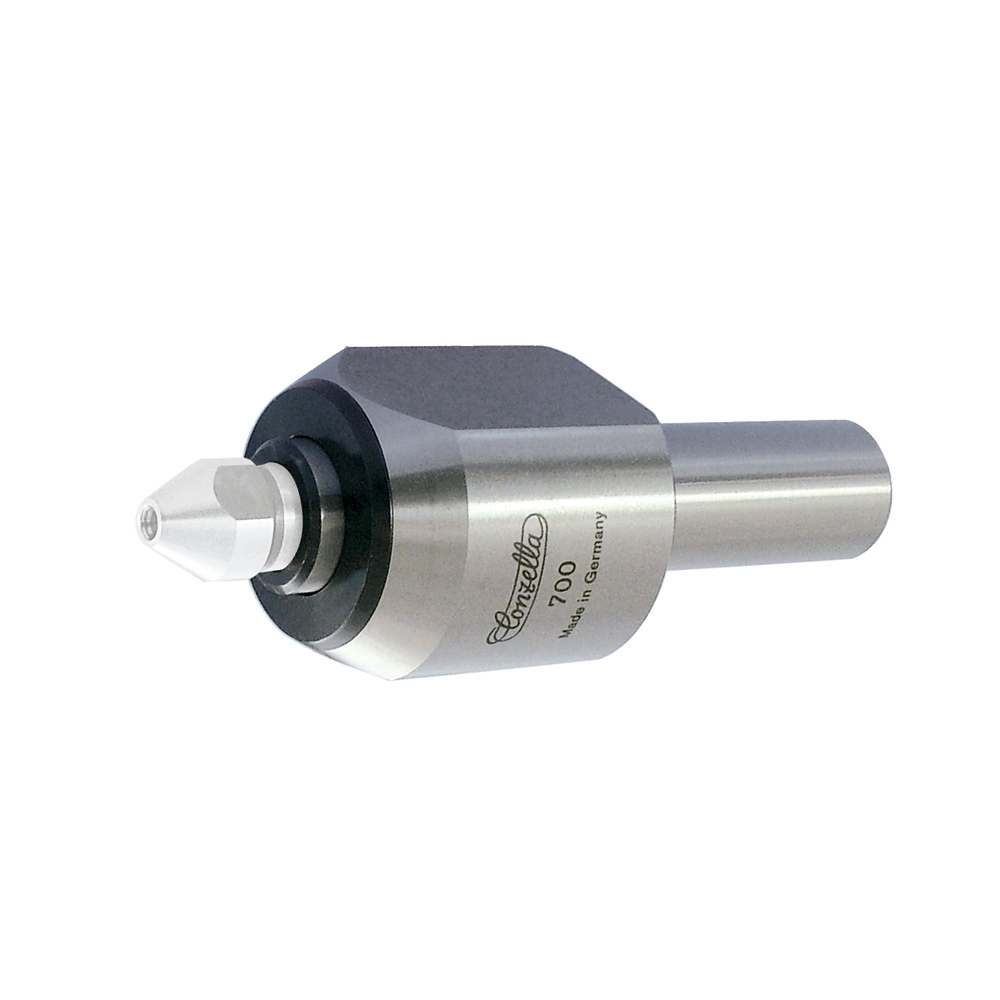

Centring point live, spring-loaded (2,4mm), str. shank 3/4" (195mm)

Centring point live, spring-loaded (2,4mm), str. shank 3/4" (195mm)
Centring point live, spring-loaded (2,4mm), str. shank 3/4" (195mm) Centring point live, spring-loaded (2,4mm), str. shank 3/4" (195mm)
Price:
342,00 €
prices excl. vat plus shipping costs

Stock status
subsequent delivery
Add to shopping cart
Tool Finder
Live lathe centres, spring-loaded
  • Replaceable centre inserts, straight shank
  • Spring-loaded version for axial longitudinal displacement when machining
  • Fully hardened and ground
  • Maintenance-free permanent lubrication
  • Shaft sealing ring prevents the ingress of dirt and coolant

Spring stroke 2.4 mm
  • Ejecting drift for replacing inserts
  • Supplied without insert

Live lathe centres, spring-loaded
  • Replaceable centre inserts, straight shank
  • Spring-loaded version for axial longitudinal displacement when machining
  • Fully hardened and ground
  • Maintenance-free permanent lubrication
  • Shaft sealing ring prevents the ingress of dirt and coolant

Spring stroke 2.4 mm
  • Ejecting drift for replacing inserts
  • Supplied without insert

Article no./ATORN no.
4015250001
Vendor Article no.
700 D19,05
Packaging unit
1
Catalogue page
KS-1114

Technical characteristics

Head diameter x head length 40 x 38 mm
Head diameter x head length 40 x 38 mm
L4 52 mm
L4 52 mm
Max. concentricity 0,01 mm
Max. concentricity 0,01 mm
Rotational speed max. 4000 r/min
Rotational speed max. 4000 r/min
Shank mount diameter 3/4" mm
Shank mount diameter 3/4" mm
Workpiece weight max. 200 kg
Workpiece weight max. 200 kg
