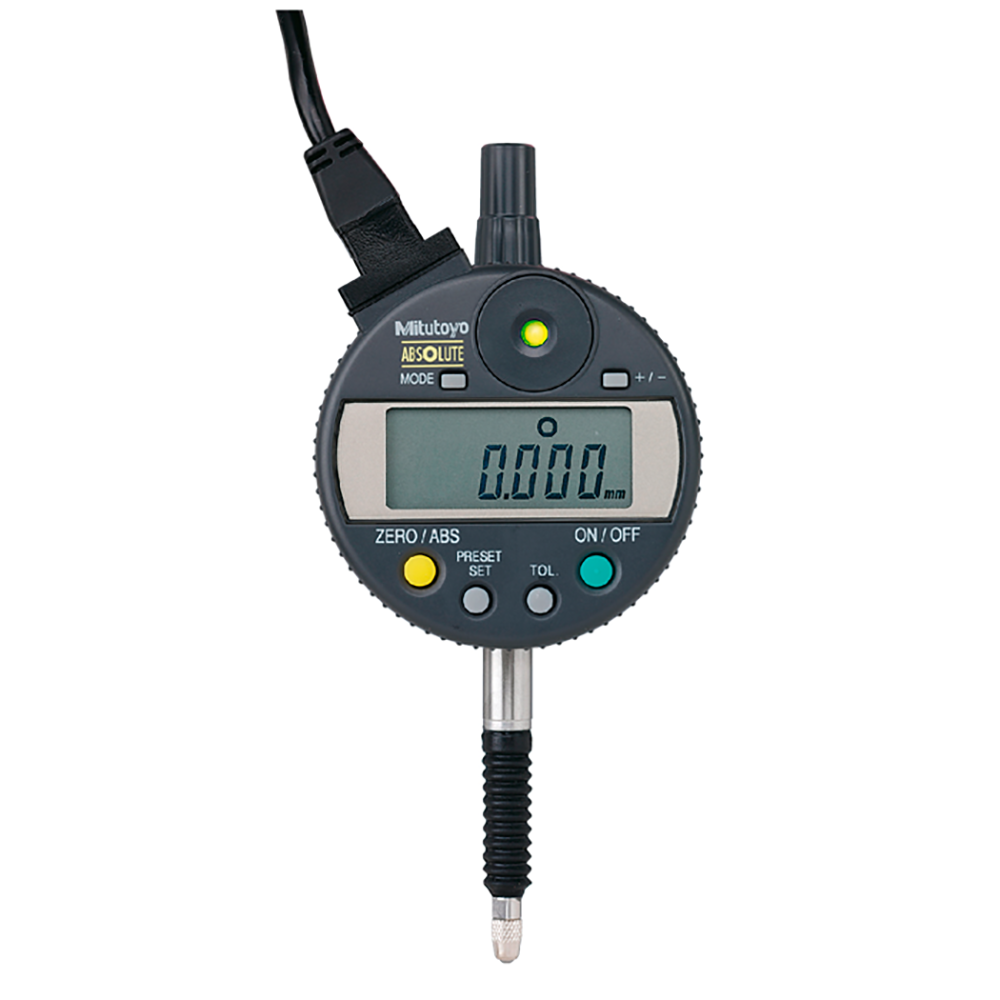

Digital ABSOLUTE dial gauge IDC

• Bidirectional communication e.g. for parameterisation via PC (Digimatic S1 interface) possible
• ABSOLUTE scale
• Very good reading due to a large digital/analogue display with 11 mm digit height
• Display 330° rotatable
• Models with digital digit step from 0.5 µm to 0.001 mm and 0.01 mm
• Simple calculation possibilities and max / min value storage for impact tolerances
• Warning function for calibration time
• Input of upper and lower tolerance for a GO/±NG assessment
• Function lock protects the dial gauge against unauthorised use
• Programmable key assignment
• Delivery in shaped packaging including battery CR2032 No. 548079 6032
• Special accessories: Digimatic cable type H No. 563100 0071 (1 m), No. 563100 0072 (2 m), USB cable type H 563110 0021
