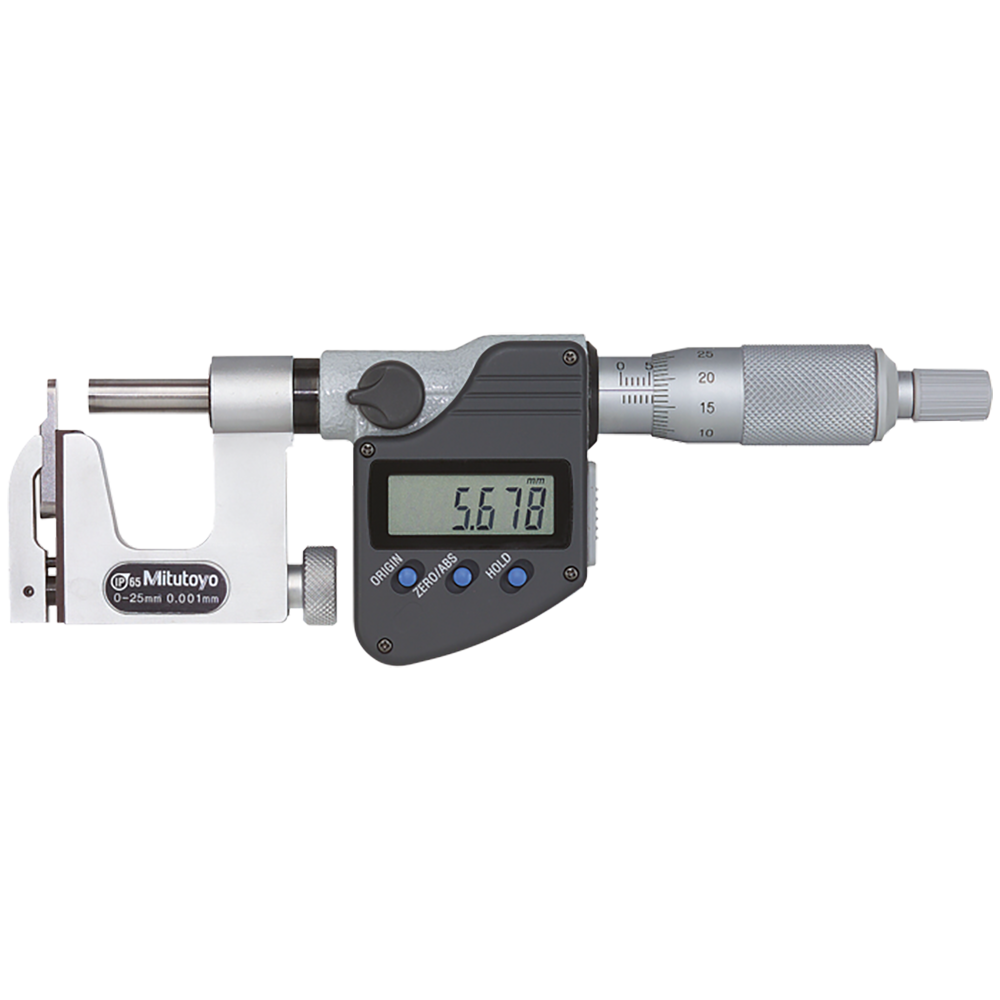

Digital outside micrometer with replaceable special anvil

• For measuring the wall thickness of cylinders and tubes as well as openings and slots or points that are difficult to access
• With two anvils:
  1x flat anvil,
  1x round anvil (measurement range 0 - 25 mm = Ø 3 mm / measurement range 25 - 50 mm = Ø 5 mm)
• With data output
• IP65 protection rating
• Spindle Ø 6.35 mm
• Spindle pitch 0.5 mm
• 0.001 mm readings
• Supplied in a case with SR44 battery (no. 500534 0001) and adjustment key, versions over 25 mm include setting gauge
• Optional accessories: Digimatic cable type B, no. 563100 0011 (1 m), no. 563100 0012 (2 m)
  USB cable type B-USB, no. 563110 0002
