Parallelendmaß-Satz für Bügelmessschrauben bis 25mm Gen.0 Stahl

Parallelendmaß-Satz für Bügelmessschrauben bis 25mm Gen.0 Stahl
Parallelendmaß-Satz für Bügelmessschrauben bis 25mm Gen.0 Stahl
Price:
585,00 €
prices excl. vat plus shipping costs

Stock status
subsequent delivery
External stock
available
Add to shopping cart
Tool Finder
Gauge block set for monitoring testing equipment
  • For monitoring test equipment
  • For testing pocket callipers of up to 200 mm
  • Test equipment directive VDI/VDE/DGQ 2618, Part 9.1
  • Steel gauge blocks for external measurements
  • Ring gauges for internal measurements
  • Calibration B: 5-point measurement, calibration C: 1-point measurement
  • Set contents
    1 individual gauge block, 30.0 mm
    1 individual gauge block, 41.3 mm
    1 individual gauge block, 131.4 mm
    1 ring gauge, Ø 4 mm
    1 ring gauge, Ø 25 mm
  • Supplied in a wooden box with 1 pair of gloves

Gauge block set for monitoring testing equipment
  • For monitoring test equipment
  • For testing pocket callipers of up to 200 mm
  • Test equipment directive VDI/VDE/DGQ 2618, Part 9.1
  • Steel gauge blocks for external measurements
  • Ring gauges for internal measurements
  • Calibration B: 5-point measurement, calibration C: 1-point measurement
  • Set contents
    1 individual gauge block, 30.0 mm
    1 individual gauge block, 41.3 mm
    1 individual gauge block, 131.4 mm
    1 ring gauge, Ø 4 mm
    1 ring gauge, Ø 25 mm
  • Supplied in a wooden box with 1 pair of gloves

Article no./ATORN no.
5360051009
Vendor Article no.
516-106-10
Packaging unit
1
Catalogue page

Technical characteristics

Degree of accuracy 0
Degree of accuracy 0
DIN DIN EN ISO 3650
for measurement ranges up to 25 mm
Included in delivery Sturdy box + Manufacturer’s test certificate

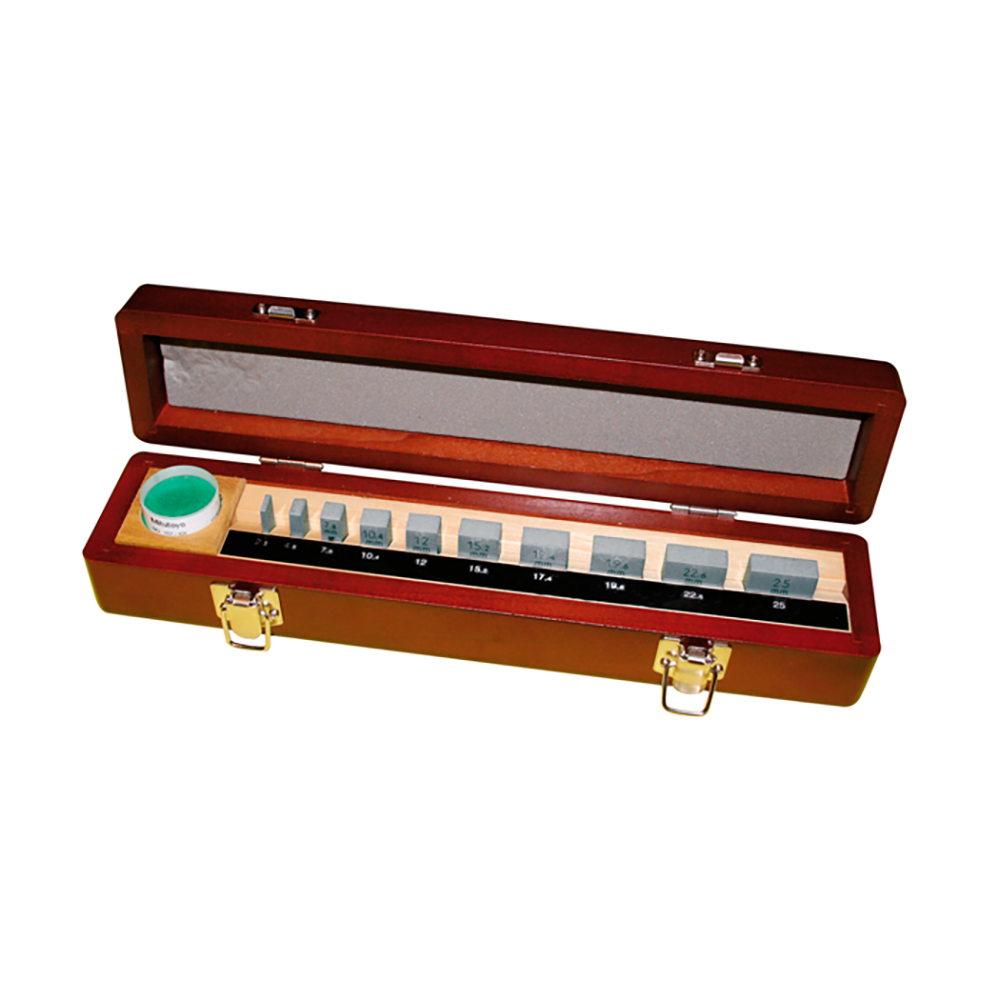

Individual dimensions 2,5/5,1/7,7/10,3/12,9/15/17,6/20,2/22,8/25 mm + optische Parallele (h=12 mm)
Max. length of application area 25 mm
Nominal dimension in assortment 2,5/5,1/7,7/10,3/12,9/15/17,6/20,2/22,8/25 mm + optische Parallele (h=12 mm) mm
Standard gauge block DIN EN ISO 3650
