Centring point live MK3 copying form

Centring point live MK3 copying form
Centring point live MK3 copying form Centring point live MK3 copying form
Price:
739,00 €
prices excl. vat plus shipping costs

Stock status
subsequent delivery
Add to shopping cart
Tool Finder

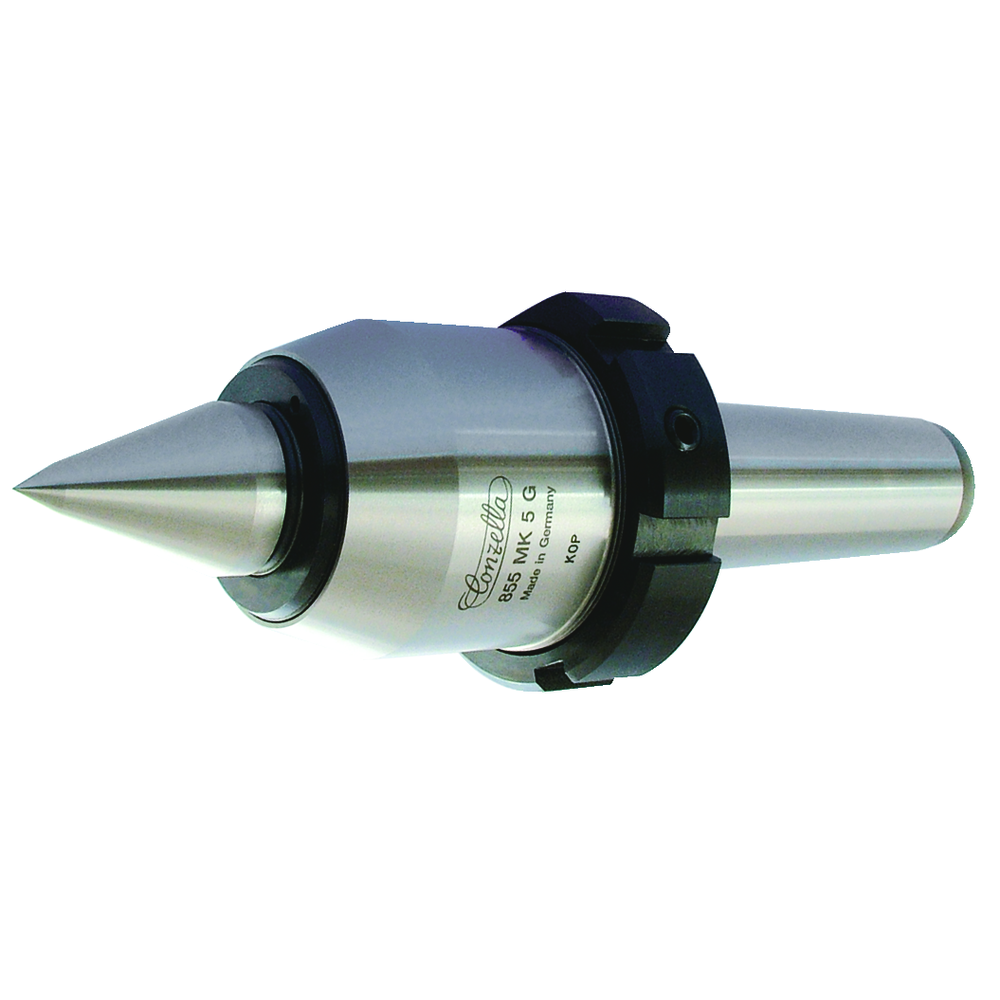

Live precision lathe centres
  • High-performance design specially for CNC lathes
  • Draw-off nut to company standards
  • For high speeds and axial loads
  • Excellent true-running accuracy thanks to the high-end bearing
  • Fully hardened and ground
  • Maintenance-free permanent lubrication
  • Shaft sealing ring prevents the ingress of dirt and coolant
  • With additional sealing, also suitable for grinding applications

Slim version
Live precision lathe centres
  • High-performance design specially for CNC lathes
  • Draw-off nut to company standards
  • For high speeds and axial loads
  • Excellent true-running accuracy thanks to the high-end bearing
  • Fully hardened and ground
  • Maintenance-free permanent lubrication
  • Shaft sealing ring prevents the ingress of dirt and coolant
  • With additional sealing, also suitable for grinding applications

Slim version
Article no./ATORN no.
4015210003
Vendor Article no.
835.3 KOP
Packaging unit
1
Catalogue page
KS-1114

Technical characteristics

Head diameter x head length 52 x 56 mm
Head diameter x head length 52 x 56 mm
Max. concentricity 0,003 mm
Max. concentricity 0,003 mm
Rotational speed max. 12000 r/min
Rotational speed max. 12000 r/min
Shank MK 3
Shank MK 3
Tip diameter 25 x 40 mm
Tip diameter 25 x 40 mm
Workpiece weight max. 200 kg
Workpiece weight max. 200 kg
