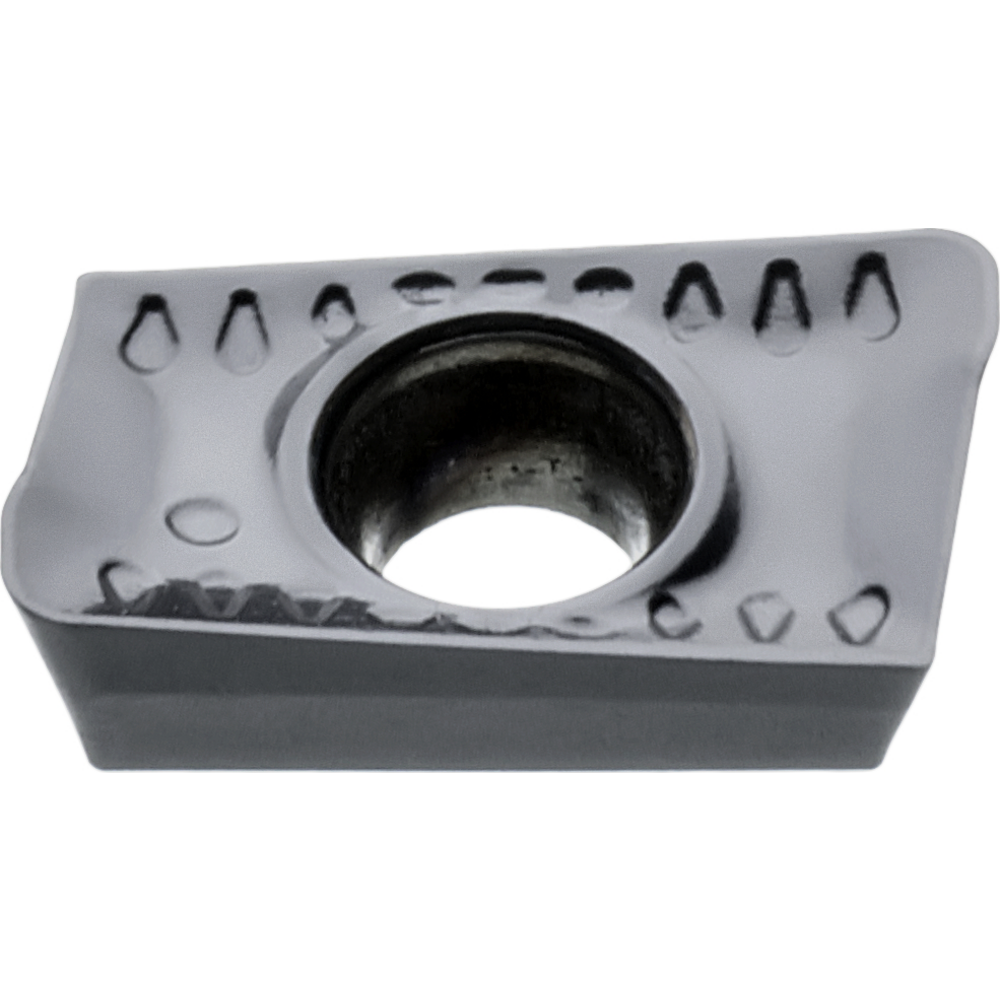

Wendeschneidplatte ADHX 090302-ER HC4640

Wendeschneidplatte ADHX 090302-ER HC4640
Wendeschneidplatte ADHX 090302-ER HC4640
Description
Milling
Supplier and manufacturer catalogues
Article no./ATORN no.
2820031001 / 10617634
Packaging unit
1
Stock status
in stock
Price
Individual price after or registration
Tool Finder

Technical characteristics

ap max. 8.5 mm
Application type of indexable insert Schlichtbearbeitung;Mittlere Bearbeitung;Schruppbearbeitung
Carbide type area ISO P;M
Carbide type ISO 0,08-0,12 mm/U
Carbide type ISO 0,5-8,5 mm
Carbide type ISO P30;P50;M30;M40
Clearance angle of indexable insert ISO D
Cutting material VHM
D1 2.8 mm
Harmonized System Code 82090020
Indexable insert type X
Indexable insert type ISO 0.06 mm/rev
Indexable insert type ISO 0.08 mm/rev
Indexable insert type ISO X
Inner circle diameter 9.6 mm
ISO code Stahl;Edelstahl
ISO designation ADHX 090302 ER
ISO M
ISO P
ISO standard ADHX
L1 9.6 mm
Max. Vc in stainless steel 0.5 mm
Max. Vc in stainless steel 220 m/min
Max. Vc in steel 0.08 mm/rev
Max. Vc in steel 0.12 mm/rev
Max. Vc in steel 220 m/min
Min. Vc in stainless steel 180 m/min
Min. Vc in stainless steel 8.5 mm
Min. Vc in steel 180 m/min
Quality HC4640
R 0.2 mm
S 3.1 mm
Shape of indexable insert ISO A
Surface Beschichtet
Tolerance class of indexable insert ISO H
Vc ISO P steel 0,06-0,08 mm/U
Vc ISO P steel 0,5-8,5 mm
WEEE (taking back waste electrical and electronic equipment) 0 - nicht zutreffend
Z 2 pc.
ASSET_MatSafetyDataSheet Download
