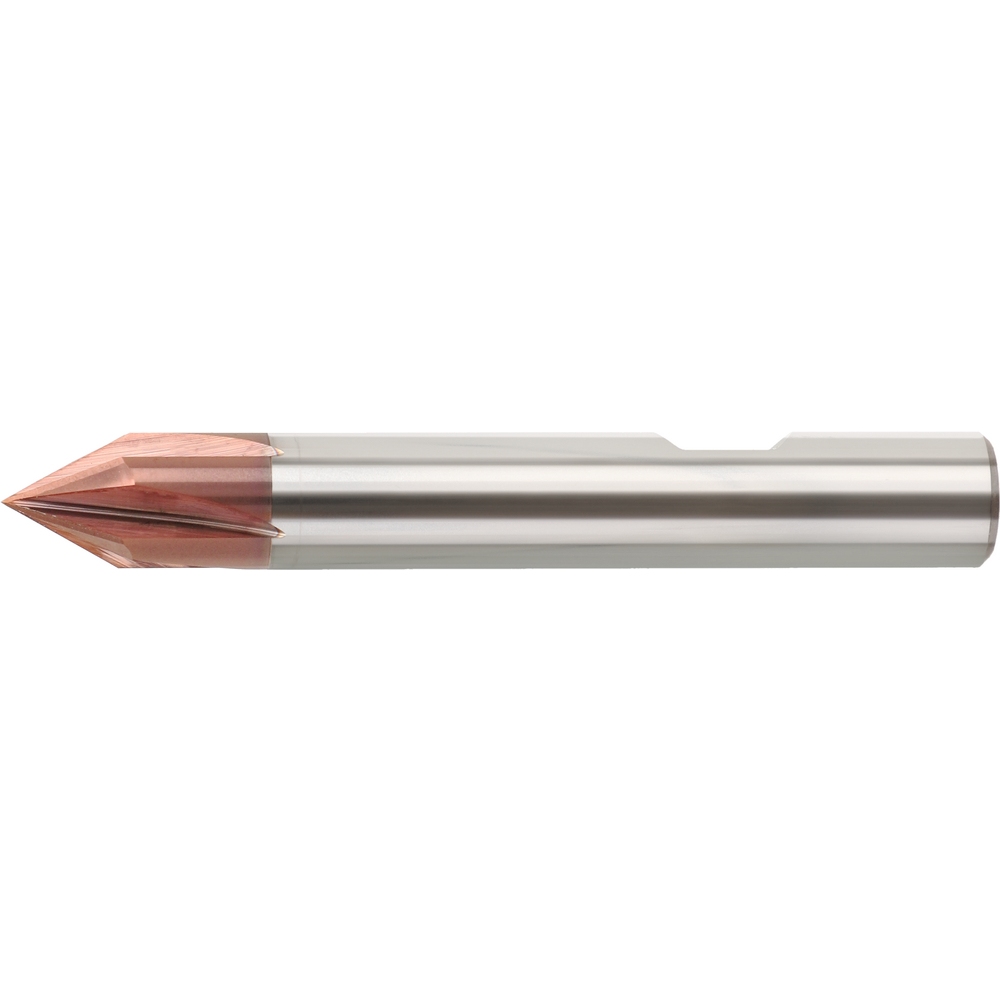

Entgrater VHM 60° ø12mm Z5 ULTRA HB

Entgrater VHM 60° ø12mm Z5 ULTRA HB
Entgrater VHM 60° ø12mm Z5 ULTRA HB
Description
Milling
Supplier and manufacturer catalogues
Article no./ATORN no.
2515580120 / 11201189
Packaging unit
1
Stock status
in stock

We charge a material cost surcharge of 6,90% on this product.


Price
152,00 €
Tool Finder

Technical characteristics

A-Measure 0,1 mm
Application direction milling Umsäumen und rampen
Coolant supply Extern
Countersink angle 60 °
Cutting direction Rechtsschneidend
Cutting material VHM
D 12 mm
D min./max. 1-16 mm
D1 12 mm
Direction of twist Rechts
Feed for side milling fz steel < 1000 mm² 0.06 mm/tooth
fitness stainless steel total 1.1 mm
Harmonized System Code 82079091
Insert diameter 1.1 mm
ISO code Universeller Einsatz
ISO K
ISO M
ISO N
ISO P
ISO S
L 83 mm
L1 10.9 mm
L1 24 mm
L1 38 mm
L2 24 mm
L4 45 mm
Max. diameter 16 mm
Min. diameter 1 mm
Overall length Normal
Picture ID according to DIN 4000 4000-81-06
S 60 °
Shank style Zylindrisch DIN 6535-HB
Surface ULTRA
Tolerance of cutting edge diameter h6
Tolerance of shank diameter h6
Tool holding device Zylinderschaft HB
Tool types according to DIN 4000 FSN3 - Winkelfräser V-Nut
Type N
WEEE (taking back waste electrical and electronic equipment) 0 - nicht zutreffend
Workpiece edge 30°
Z 5 pc.
γ 60 °

Usage characteristics

aluminium < 8 % Si
aluminium ≥ 8 % Si
brass long
brass short
bronze long
bronze short
cast iron GGG
fitness not iron total
fitness Titan/Nickel/Super total
Overall stainless steel suitability
stainless steel austenitic
stainless steel ferrit./martens.
steel < 1000 N/mm²
steel < 1400 N/mm²
steel < 700 N/mm²
superalloys Fe/NiCo based < 30 HRC
superalloys Fe/NiCo based ≥ 30 HRc
titanium alloys

very suitable
suitable
