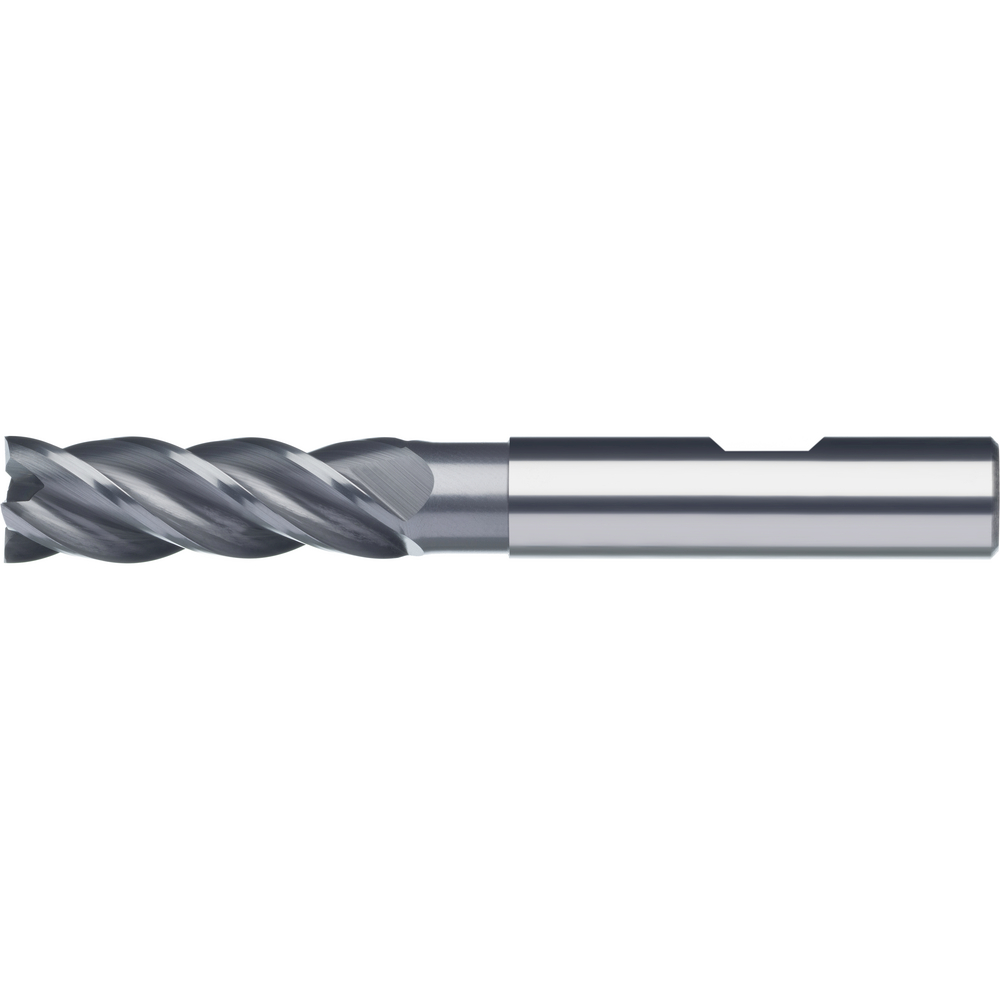

Schaftfräser VHM 40° 16mm, HPC, ULTRA-MS, HB (VA)

Schaftfräser VHM 40° 16mm, HPC, ULTRA-MS, HB (VA)
Schaftfräser VHM 40° 16mm, HPC, ULTRA-MS, HB (VA)
Description
Milling
Supplier and manufacturer catalogues
Article no./ATORN no.
2250++0395 / 11861395
Packaging unit
1
Stock status
in stock
Price
Individual price after or registration
Tool Finder

Technical characteristics

Application direction milling Umsäumen, rampen und bohren
Application milling HPC
Center cutting Ja
Coolant supply Extern
Cutting direction Rechtsschneidend
Cutting edge geometry Ungleich geteilt
Cutting material VHM
D 16 mm
D min./max. 4-20 mm
D1 16 mm
D3 15 mm
Design of cutting edges Schlichten
Edge protection for chamfer angle 45 °
F x 45° 0.3 mm
Feed for side milling fz stainless steel ferrit./martens. 0,00006 mm/tooth
Form Eck
Harmonized System Code 82077031
ISO code Stahl;Edelstahl;Sonderlegierung
ISO M
ISO P
ISO S
L 125 mm
L1 50 mm
L2 75 mm
Max. diameter 20 mm
Min. diameter 4 mm
Overall length Lang
Rake angle 10 °
Shank style Zylindrisch DIN 6535-HB
Surface ULTRA MS
Tolerance of cutting edge diameter e8
Tolerance of shank diameter h6
Tool holding device Zylinderschaft HB
Tool types according to DIN 4000 FSN2 - Langlochfräser
Twist angle 35° | 38°
Twist angle 35°;38°
Type VA
WEEE (taking back waste electrical and electronic equipment) 0 - nicht zutreffend
Z 4 pc.

Usage characteristics

fitness Titan/Nickel/Super total
Overall stainless steel suitability
stainless steel austenitic
stainless steel ferrit./martens.
steel < 1000 N/mm²
steel < 700 N/mm²
superalloys Fe/NiCo based < 30 HRC
superalloys Fe/NiCo based ≥ 30 HRc
titanium alloys

very suitable
suitable
