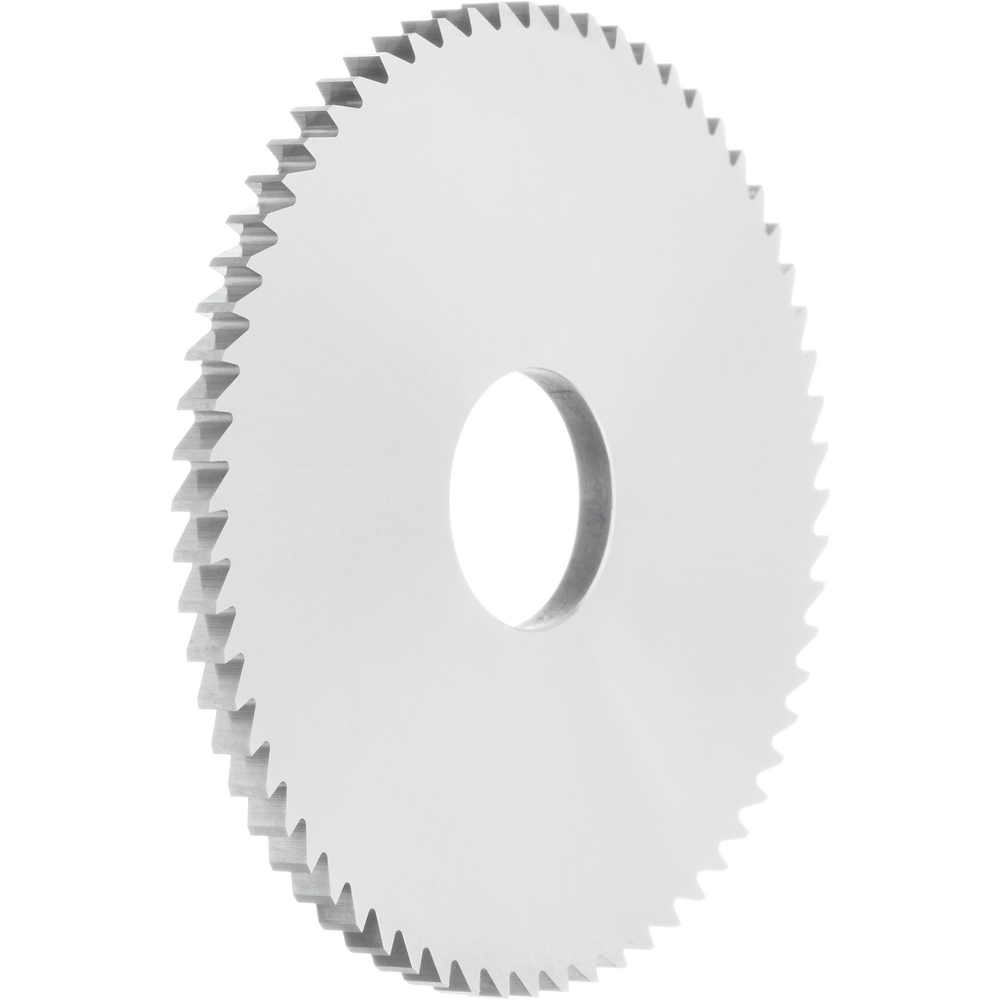

VHM-Kreissägeblatt VHM A 15 mm x 5,5 mm x 5 mm Z40

VHM-Kreissägeblatt VHM A 15 mm x 5,5 mm x 5 mm Z40
VHM-Kreissägeblatt VHM A 15 mm x 5,5 mm x 5 mm Z40
Description
Milling
Supplier and manufacturer catalogues
Article no./ATORN no.
2014020049 / 12310030
Packaging unit
1
Stock status
subsequent delivery
Price
Individual price after or registration

Technical characteristics

Bore hole Ø 5 mm
Cutting material VHM
D 15 mm
DIN 1837
Form A
hardened steel ≤ 65 HRC 02
Harmonized System Code 82023100
Number of teeth 40 pc.
Teeth type Fein
Thickness of cutting edge 5.5 mm
Tolerance of cutting edge diameter j15
Tolerance of cutting edge thickness j11
Tolerance of hole diameter H6
Tooth form A
WEEE (taking back waste electrical and electronic equipment) 0 - nicht zutreffend

Usage characteristics

aluminium < 8 % Si
aluminium ≥ 8 % Si
brass long
brass short
bronze long
bronze short
cast iron GGG
fitness not iron total
fitness Titan/Nickel/Super total
Overall stainless steel suitability
plastic
stainless steel austenitic
stainless steel ferrit./martens.
steel < 1000 N/mm²
steel < 1400 N/mm²
steel < 700 N/mm²
superalloys Fe/NiCo based < 30 HRC
superalloys Fe/NiCo based ≥ 30 HRc
titanium alloys

very suitable
suitable
