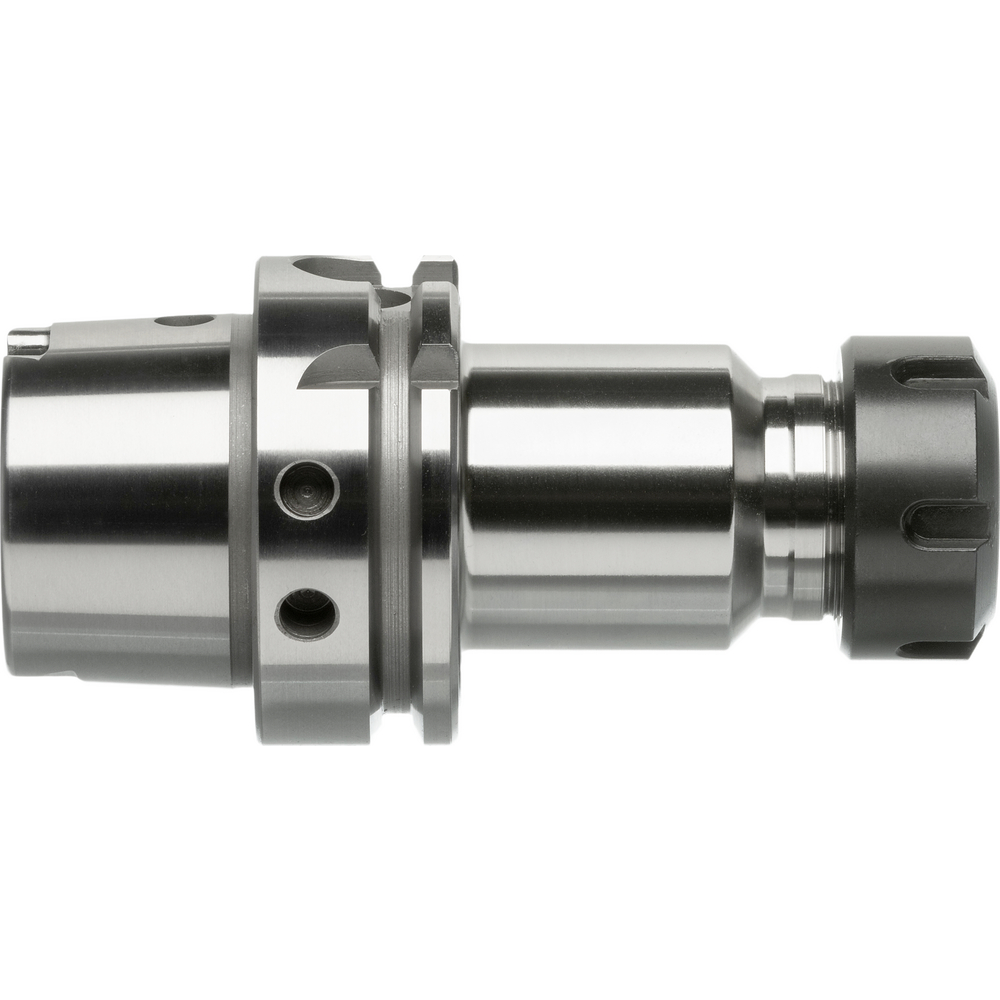

Spannzangenfutter HSK63 ER25 Auskraglänge 100 mm DIN 69893-A

Spannzangenfutter HSK63 ER25 Auskraglänge 100 mm DIN 69893-A
Spannzangenfutter HSK63 ER25 Auskraglänge 100 mm DIN 69893-A
Description
ER collet chuck
  • For DIN 6499 ER collets
  • Pre-balanced to G 2.5 / 25,000 rpm
  • Alloyed case-hardened steel with a core tensile strength of min. 950 N/mm², case-hardened to HRC 60 ± 2 (HV 700 ± 50), case depth 0.8 mm ± 0.2 mm, burnished
  • Taper angle tolerance quality < AT3 in accordance with DIN 7187 and DIN 2080, max. true running accuracy < 0.005 mm
  • Supplied with clamping nut
  • Additional shank designs and AD/AF version available on request
  • ER16 / 426E* tool holding fixtures supplied with hexagonal nut

Article no./ATORN no.
4323296182
Vendor Article no.
23296182
Packaging unit
1
Stock status
in stock
Price
Individual price after or registration
Add to shopping cart
Tool Finder

Technical characteristics

A 100 mm
Balancing quality G 6,3 bei 20000 1/min
Collet type ER 25
External Ø 42 mm
Max. clamping range 16 mm
Min. clamping range 1 mm
Shank HSK 63
Tool holding device HSK 63
