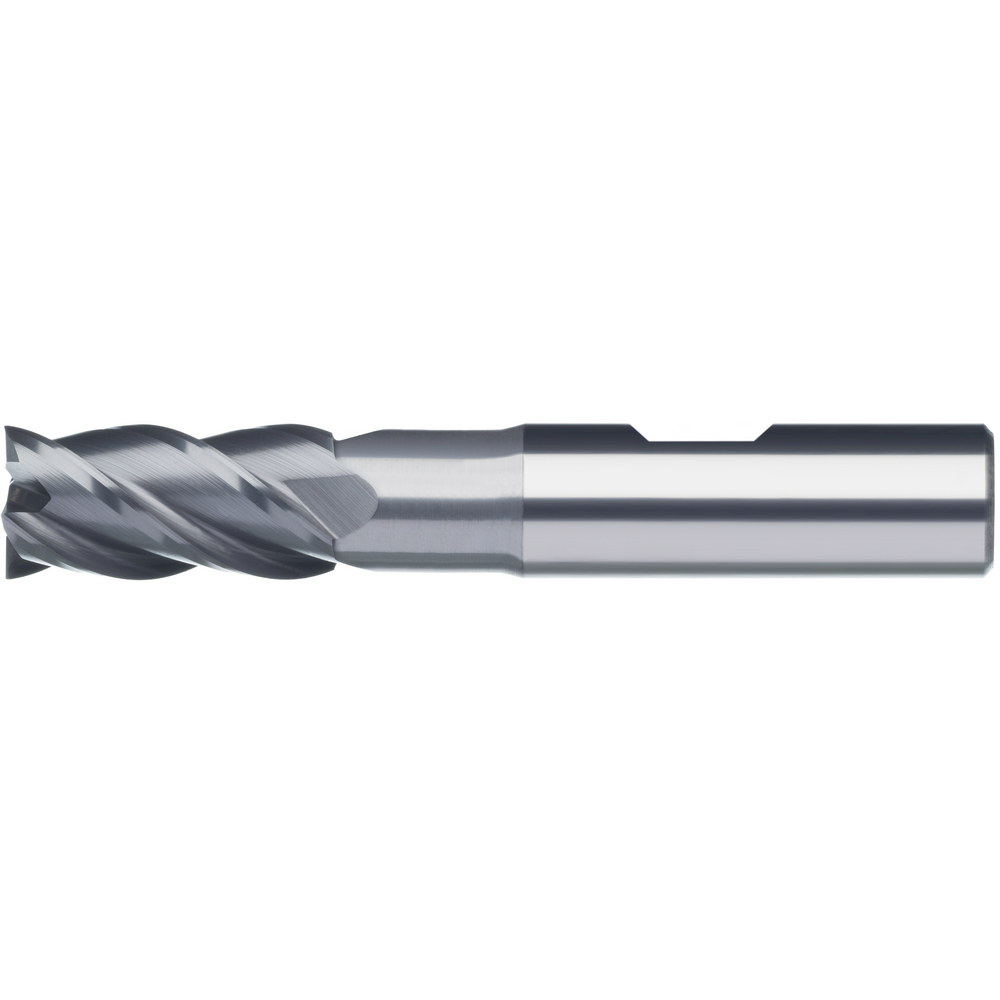

HPC-Schaftfräser VHM Durchmesser 20,0x38x104mm HB-Schaft Typ VA

HPC-Schaftfräser VHM Durchmesser 20,0x38x104mm HB-Schaft Typ VA
HPC-Schaftfräser VHM Durchmesser 20,0x38x104mm HB-Schaft Typ VA
Description
Milling
Supplier and manufacturer catalogues
Article no./ATORN no.
2516852720
Vendor Article no.
16852720
Packaging unit
1
Stock status
in stock
Price
Individual price after or registration

Technical characteristics

Application direction milling Umsäumen, rampen und bohren
Application milling HPC
Center cutting Ja
Coolant supply Extern
Cutting direction Rechtsschneidend
Cutting material VHM
D 20 mm
D min./max. 3-20 mm
D1 20 mm
D3 19.5 mm
Design of cutting edges Schlichten
Edge protection for chamfer angle 45 °
F x 45° 0.6 mm
Feed for side milling fz stainless steel ferrit./martens. 0,00012 mm/tooth
Form Eck
Harmonized System Code 82077031
ISO code Stahl;Edelstahl;Sonderlegierung
ISO M
ISO P
ISO S
L 104 mm
L1 38 mm
L2 54 mm
Max. diameter 20 mm
Min. diameter 3 mm
Overall length Normal
Shank style Zylindrisch DIN 6535-HB
Surface AlCrN
Tolerance of cutting edge diameter e8
Tolerance of shank diameter h6
Tool holding device Zylinderschaft HB
Tool types according to DIN 4000 FSN1 - Schaftfräser
Twist angle 40°;41°
Type VA
WEEE (taking back waste electrical and electronic equipment) 0 - nicht zutreffend
Z 4 pc.

Usage characteristics

fitness Titan/Nickel/Super total
Overall stainless steel suitability
stainless steel austenitic
stainless steel ferrit./martens.
steel < 1000 N/mm²
steel < 700 N/mm²
superalloys Fe/NiCo based < 30 HRC
titanium alloys

very suitable
suitable
