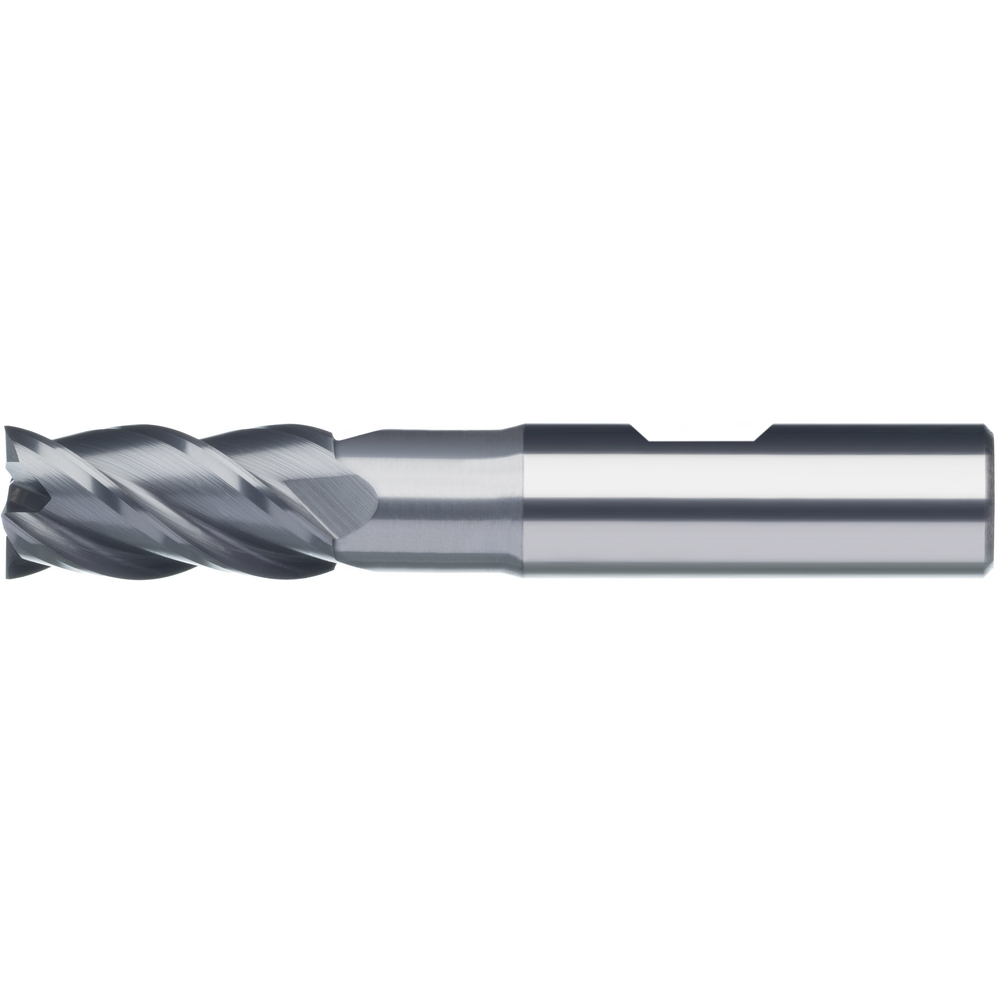

HPC-Schaftfräser VHM Durchmesser 8,0x19x63 mm HB-Schaft Typ VA

HPC-Schaftfräser VHM Durchmesser 8,0x19x63 mm HB-Schaft Typ VA
HPC-Schaftfräser VHM Durchmesser 8,0x19x63 mm HB-Schaft Typ VA
Description
Milling
Supplier and manufacturer catalogues
Article no./ATORN no.
2516852708
Vendor Article no.
16852708
Packaging unit
1
Stock status
subsequent delivery

We charge a material cost surcharge of 6,90% on this product.


Price
57,32 €
Add to shopping cart
Tool Finder

Technical characteristics

Application direction milling Umsäumen, rampen und bohren
Application milling HPC
Center cutting Ja
Coolant supply Extern
Cutting direction Rechtsschneidend
Cutting material VHM
D 8 mm
D min./max. 3-20 mm
D1 8 mm
D3 7.6 mm
Design of cutting edges Schlichten
Edge protection for chamfer angle 45 °
F x 45° 0.15 mm
Feed for side milling fz stainless steel ferrit./martens. 0,00005 mm/tooth
Form Eck
graphite 01
Harmonized System Code 82077010
ISO code Stahl;Edelstahl;Sonderlegierung
ISO M
ISO P
ISO S
L 63 mm
L1 19 mm
L2 27 mm
Max. diameter 20 mm
Min. diameter 3 mm
Overall length Normal
Shank style Zylindrisch DIN 6535-HB
Surface AlCrN
Tolerance of cutting edge diameter e8
Tolerance of shank diameter h6
Tool holding device Zylinderschaft HB
Tool types according to DIN 4000 FSN1 - Schaftfräser
Twist angle 40°;41°
Type VA
WEEE (taking back waste electrical and electronic equipment) 0 - nicht zutreffend
Z 4 pc.

Usage characteristics

fitness Titan/Nickel/Super total
Overall stainless steel suitability
stainless steel austenitic
stainless steel ferrit./martens.
steel < 1000 N/mm²
steel < 700 N/mm²
superalloys Fe/NiCo based < 30 HRC
titanium alloys

very suitable
suitable
