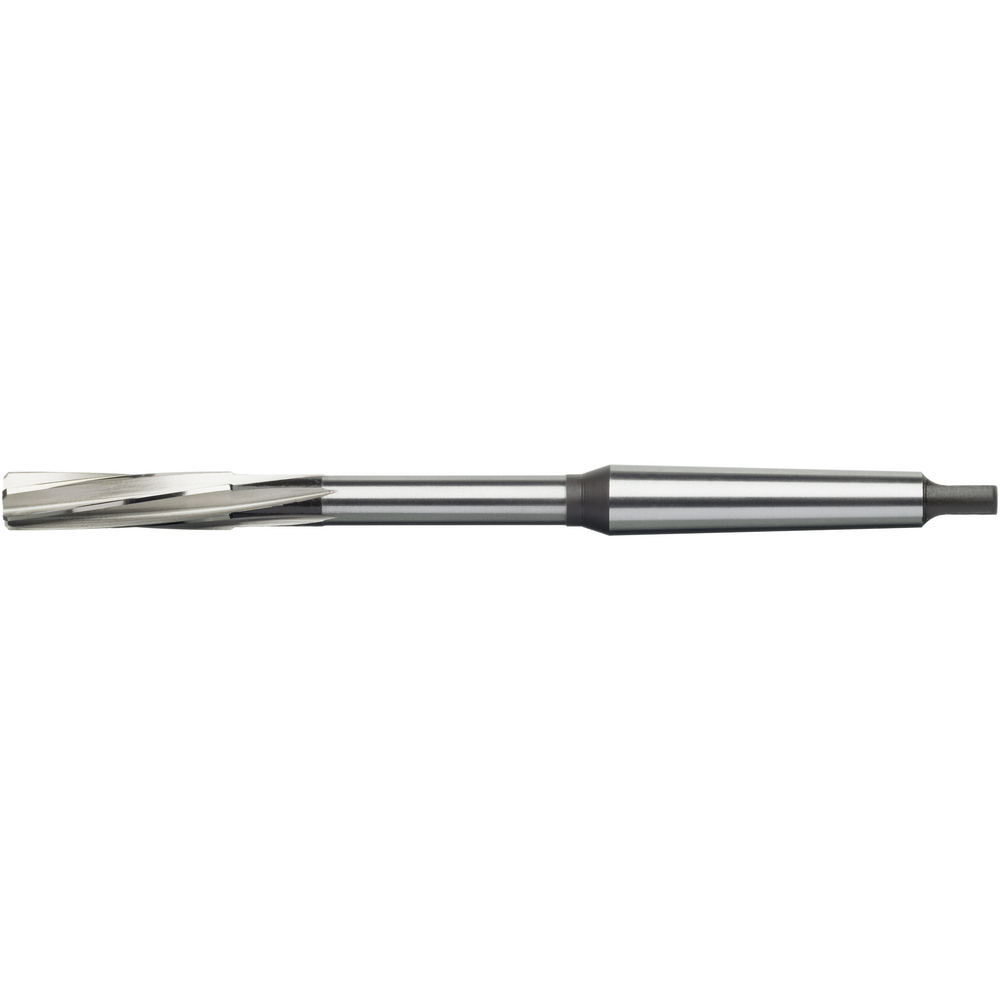

Reibahle HSSE Z=8 B 7-8 Grad 17,0 mm H7 x 214mm x 54mm MK DIN 208

Reibahle HSSE Z=8 B 7-8 Grad 17,0 mm H7 x 214mm x 54mm MK DIN 208
Reibahle HSSE Z=8 B 7-8 Grad 17,0 mm H7 x 214mm x 54mm MK DIN 208
Description
Supplier and manufacturer catalogues
ATORN brand catalogue
Article no./ATORN no.
1611642170
Vendor Article no.
11642170
Packaging unit
1
Stock status
subsequent delivery
Price
Individual price after or registration
Add to shopping cart
Tool Finder

Technical characteristics

A 134 mm
Coolant supply Extern
Cutting direction Rechtsschneidend
Cutting material HSSE
D 17 mm
D min./max. 3,0-40,0 mm
DIN 208
Feed f steel < 1000 N/mm² 0.2 mm/rev
Form B
Groove type Linksdrall 7-8°
Harmonized System Code 82076030
L 214 mm
L1 54 mm
Max. diameter 40.0 mm
Min. diameter 3.0 mm
Shank MK 2
Shank style Morsekegel
Suitable for blind hole Nein
Suitable for through hole Ja
Surface Unbeschichtet
Tolerance of fit H7
Tool holding device Morsekegelschaft
Tool types according to DIN 4000 RNN1 - Zylinderreibahle
WEEE (taking back waste electrical and electronic equipment) 0 - nicht zutreffend
Z 8 pc.

Usage characteristics

aluminium < 8 % Si
aluminium ≥ 8 % Si
brass long
brass short
bronze long
bronze short
cast iron GGG
fitness not iron total
fitness Titan/Nickel/Super total
Overall stainless steel suitability
plastic
stainless steel austenitic
stainless steel ferrit./martens.
steel < 1000 N/mm²
steel < 1400 N/mm²
steel < 700 N/mm²
superalloys Fe/NiCo based < 30 HRC
superalloys Fe/NiCo based ≥ 30 HRc
titanium alloys

very suitable
suitable
