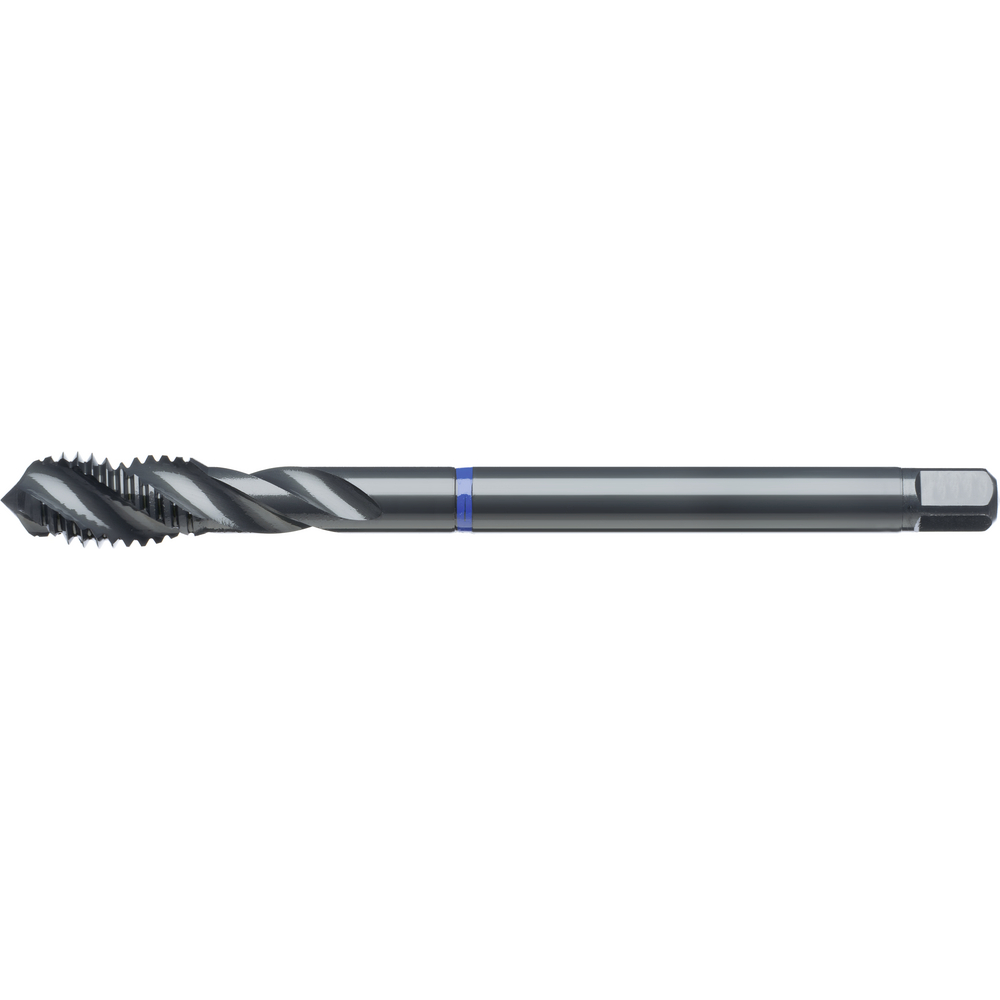

Gewindebohrer HSSE C 376 40 Grad M16 2 mm ISO2 S 2,5xD CNC kon. P

Gewindebohrer HSSE C 376 40 Grad M16 2 mm ISO2 S 2,5xD CNC kon. P
Gewindebohrer HSSE C 376 40 Grad M16 2 mm ISO2 S 2,5xD CNC kon. P
Description
Supplier and manufacturer catalogues
ATORN brand catalogue
Article no./ATORN no.
1313321160
Vendor Article no.
13321160
Packaging unit
1
Stock status
in stock

We charge a material cost surcharge of 6,90% on this product.


Price
47,71 €
Add to shopping cart
Tool Finder

Technical characteristics

Application type/machine type CNC;Konventionell
C 9 mm
Colour ring system Stähle
Coolant supply Extern
Cutting direction Rechtsschneidend
Cutting material HSSE
D M16
D1 12 mm
DIN 376
Form/Chamfer C
Harmonized System Code 82074010
L 110 mm
Max. thread depth 2,5xD
Nominal diameter 16 mm
Pitch 2 mm
Shank style Überlaufschaft
Suitable for thread M3-M30
Surface Vaporisiert
Tapping hole Ø 14 mm
Thread M
Threaded hole type Grundloch ≤ 2,5xD
Tolerance of screw taps ISO 2 (6H)
Tolerance of shank diameter h9
Tolerance of square shank h12
Tool types according to DIN 4000 BGN1 - Gewindebohrer mit abgesetztem Schaft
Twist angle 40° (rechts)
Type P MAX 1000
WEEE (taking back waste electrical and electronic equipment) 0 - nicht zutreffend

Usage characteristics

aluminium < 8 % Si
aluminium ≥ 8 % Si
brass long
brass short
bronze long
bronze short
cast iron GGG
fitness not iron total
plastic
stainless steel ferrit./martens.
steel < 1000 N/mm²
steel < 700 N/mm²

very suitable
suitable
