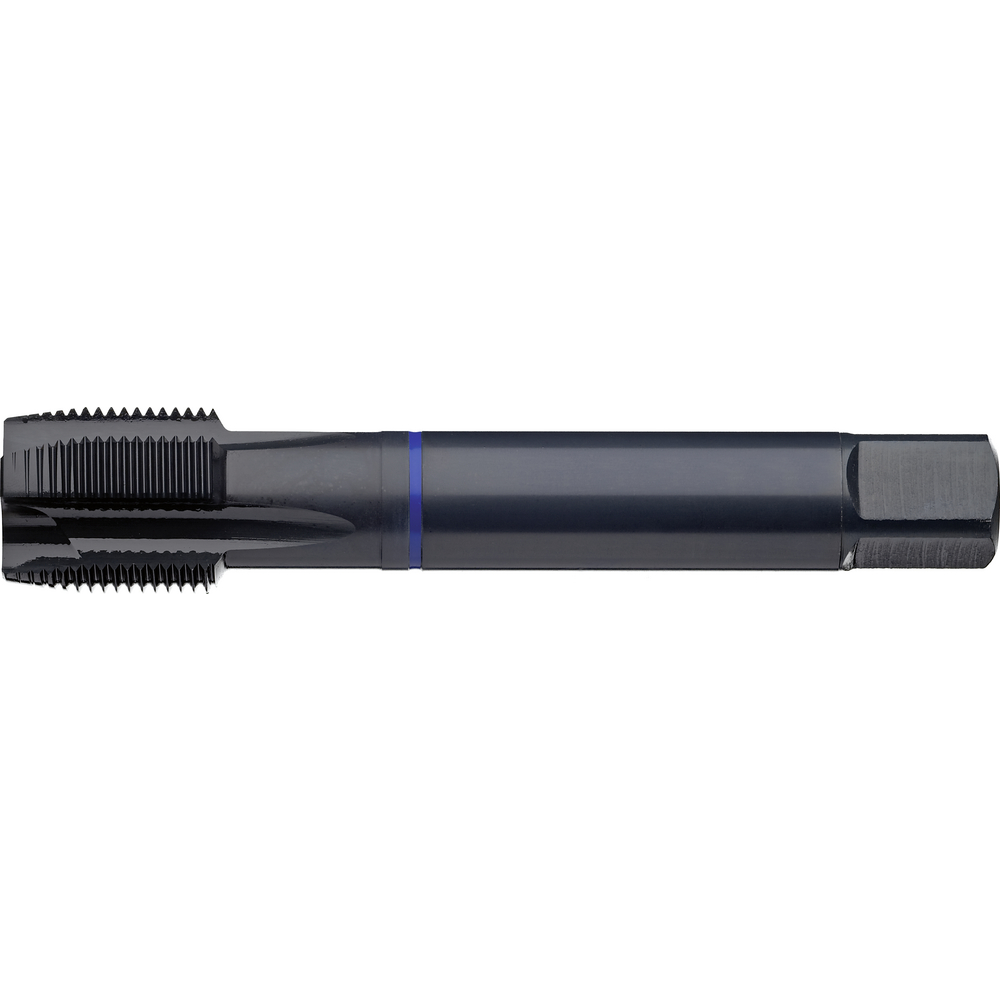

Gewindebohrer HSSE B 5156 0 Grad G3/4 Zoll ISO2 D 3xD CNC kon. P

Gewindebohrer HSSE B 5156 0 Grad G3/4 Zoll ISO2 D 3xD CNC kon. P
Gewindebohrer HSSE B 5156 0 Grad G3/4 Zoll ISO2 D 3xD CNC kon. P
Description
Supplier and manufacturer catalogues
ATORN brand catalogue
Article no./ATORN no.
1313209060
Vendor Article no.
13209060
Packaging unit
1
Stock status
in stock

We charge a material cost surcharge of 6,90% on this product.


Price
119,74 €
Add to shopping cart
Tool Finder

Technical characteristics

Application type/machine type CNC;Konventionell
C 16 mm
Colour ring system Stähle
Coolant supply Extern
Cutting direction Rechtsschneidend
Cutting material HSSE
D 3/4 in
D G 3/4 in
D1 20 mm
DIN 5156
Form/Chamfer B
Harmonized System Code 82074010
L 140 mm
Max. thread depth 3xD
Pitch 14 TPI
Shank style Überlaufschaft
Suitable for thread G 1/8-1 1/4
Surface Vaporisiert
Tapping hole Ø 24.5 mm
Thread G
Threaded hole type Durchgangsloch ≤ 3xD
Tolerance of screw taps ISO 2 (6H)
Tolerance of shank diameter h9
Tolerance of square shank h12
Tool types according to DIN 4000 BGN1 - Gewindebohrer mit abgesetztem Schaft
Twist angle 0°
Type P MAX 1000
WEEE (taking back waste electrical and electronic equipment) 0 - nicht zutreffend

Usage characteristics

aluminium < 8 % Si
aluminium ≥ 8 % Si
brass long
brass short
bronze long
bronze short
cast iron GGG
fitness not iron total
plastic
stainless steel ferrit./martens.
steel < 1000 N/mm²
steel < 700 N/mm²

very suitable
suitable
