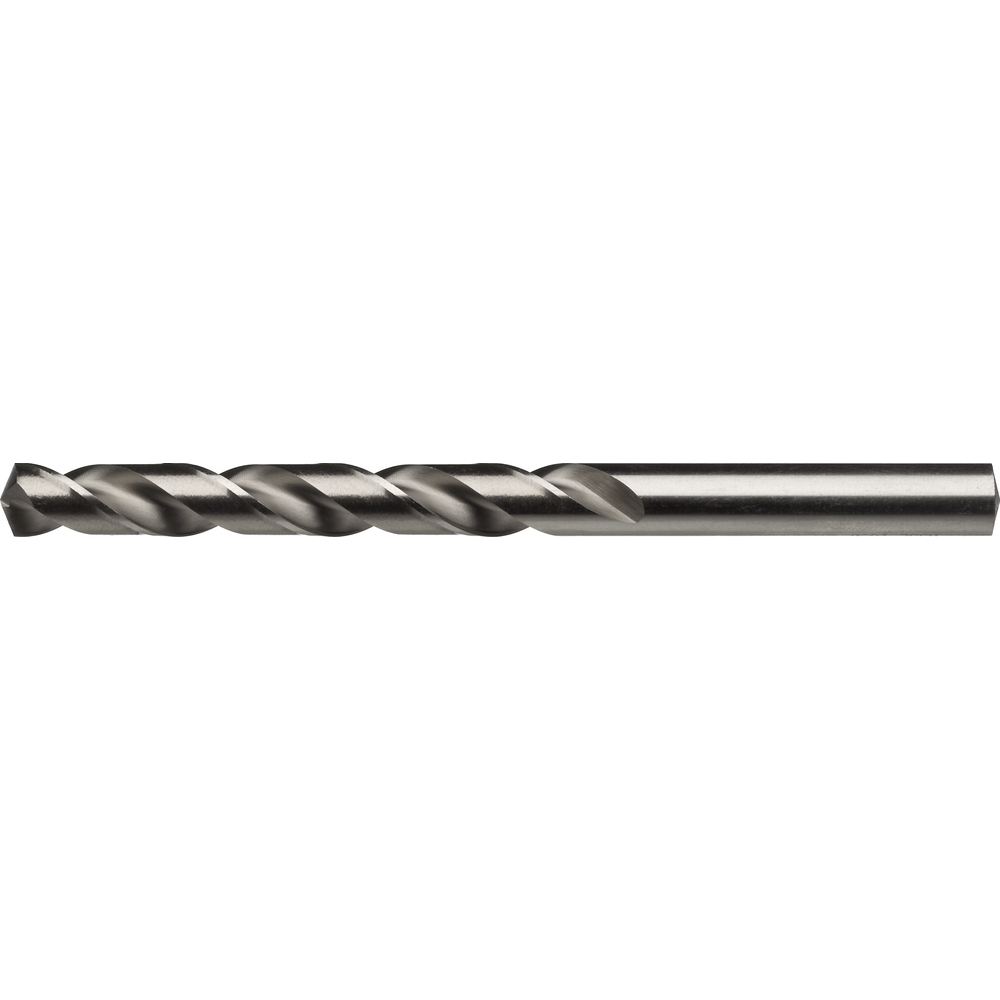

Spiralbohrer VA HSSE DIN 338 1,5 mm x 40 mm x 18 mm 130 Grad

Spiralbohrer VA HSSE DIN 338 1,5 mm x 40 mm x 18 mm 130 Grad
Spiralbohrer VA HSSE DIN 338 1,5 mm x 40 mm x 18 mm 130 Grad
Description
Supplier and manufacturer catalogues
ATORN brand catalogue
Article no./ATORN no.
1011028131
Vendor Article no.
11028131
Packaging unit
10
Stock status
in stock
External stock
available
Price
Individual price after or registration
Add to shopping cart
Tool Finder

Technical characteristics

A-Measure 0,35 mm
Coolant supply Extern
Cutting direction Rechtsschneidend
Cutting material HSSE
D 1.50 mm
D max. 13.0 mm
D min. 1.0 mm
D min./max. 1,0-13,0 mm
D1 1.5 mm
DIN 338
Direction of twist Rechts
Feed f stainless steel 0.03 mm/rev
Harmonized System Code 82075060
L 40 mm
L1 18 mm
L1 20 mm
L3 12 mm
L4 20 mm
Machining method Bohren MONO
Picture ID according to DIN 4000 4000-81-01
S 130 °
Shank style Zylindrisch DIN 6535-HA
Surface Unbeschichtet
System stability Gering;Gut;Sehr gut
Technology drilling mono Vollbohren
Tolerance of cutting edge diameter h8
Tolerance of shank diameter h8
Tool holding device Zylinderschaft HA
Tool performance Mittlere Leistung
Tool types according to DIN 4000 BNN1 - Vollbohrer
Twist angle 27°
Type VA
WEEE (taking back waste electrical and electronic equipment) 0 - nicht zutreffend
Z 2 pc.

Usage characteristics

aluminium < 8 % Si
aluminium ≥ 8 % Si
brass long
brass short
bronze long
bronze short
fitness not iron total
fitness Titan/Nickel/Super total
Overall stainless steel suitability
stainless steel austenitic
stainless steel ferrit./martens.
steel < 1000 N/mm²
steel < 1400 N/mm²
steel < 700 N/mm²
superalloys Fe/NiCo based < 30 HRC
superalloys Fe/NiCo based ≥ 30 HRc
titanium alloys

very suitable
suitable
