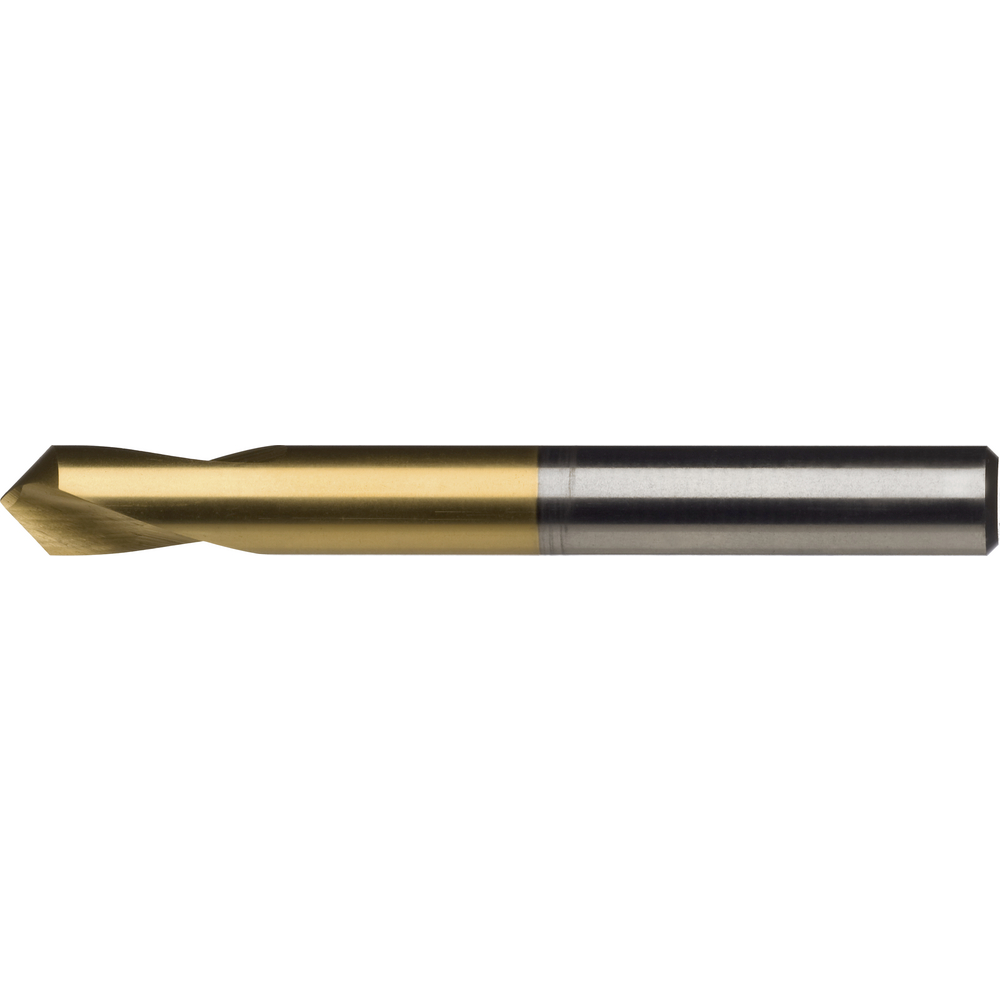

NC-Anbohrer HSSE-TiN 90 Grad 8,0 mm x 79 mm HA

NC-Anbohrer HSSE-TiN 90 Grad 8,0 mm x 79 mm HA
NC-Anbohrer HSSE-TiN 90 Grad 8,0 mm x 79 mm HA
Description
Supplier and manufacturer catalogues
ATORN brand catalogue
Article no./ATORN no.
1011019581
Vendor Article no.
11019581
Packaging unit
1
Stock status
subsequent delivery

We charge a material cost surcharge of 6,90% on this product.


Price
17,21 €
Add to shopping cart
Tool Finder

Technical characteristics

A-Measure 0,04 mm
Coolant supply Extern
Cutting direction Rechtsschneidend
Cutting material HSSE
D 8.00 mm
D max. 16 mm
D min. 4 mm
D min./max. 4-16 mm
D1 8 mm
Direction of twist Rechts
Feed f steel < 1000 N/mm² 0.07 mm/rev
Harmonized System Code 82075060
L 79 mm
L1 25 mm
L1 25.5 mm
L1 49 mm
L2 8 mm
L3 6 mm
L4 30 mm
Machining method Bohren MONO
Overall length Normal
Picture ID according to DIN 4000 4000-81-06
S 90 °
Shank style Zylindrisch DIN 6535-HA
Surface TiN
System stability Gering;Gut;Sehr gut
Technology drilling mono NC-Anbohren
Tolerance of shank diameter h6
Tool holding device Zylinderschaft HA
Tool performance Mittlere Leistung
Tool types according to DIN 4000 BNN6 - Anbohrer
WEEE (taking back waste electrical and electronic equipment) 0 - nicht zutreffend
Z 2 pc.

Usage characteristics

aluminium < 8 % Si
aluminium ≥ 8 % Si
brass long
brass short
bronze long
bronze short
cast iron GGG
fitness not iron total
fitness Titan/Nickel/Super total
graphite
Overall stainless steel suitability
plastic
stainless steel austenitic
stainless steel ferrit./martens.
steel < 1000 N/mm²
steel < 1400 N/mm²
steel < 700 N/mm²
superalloys Fe/NiCo based < 30 HRC
superalloys Fe/NiCo based ≥ 30 HRc
titanium alloys

very suitable
suitable
