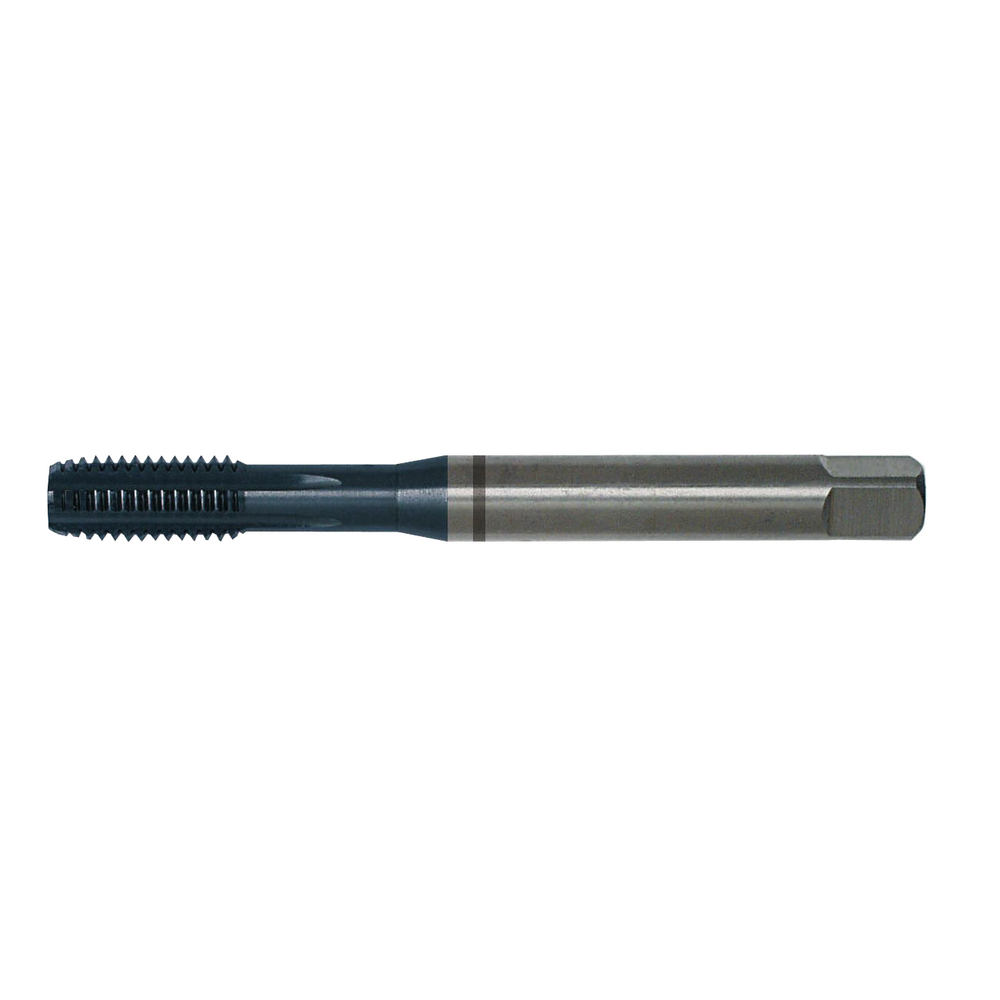

Maschinen-Gewindebohrer VHM DIN371C M6 Durchgang/Grundloch IK, TiAlN+C

Maschinen-Gewindebohrer VHM DIN371C M6 Durchgang/Grundloch IK, TiAlN+C
Maschinen-Gewindebohrer VHM DIN371C M6 Durchgang/Grundloch IK, TiAlN+C
Description
Supplier and manufacturer catalogues
ATORN brand catalogue
Article no./ATORN no.
1341700060 / 11290228
Packaging unit
1
Stock status
in stock

We charge a material cost surcharge of 6,90% on this product.


Price
184,00 €
Add to shopping cart
Tool Finder

Technical characteristics

Application type/machine type CNC;Konventionell
bronze long 02
C 4.9 mm
Coating TiAlN+C
Colour ring system Harte Werkstoffe
Coolant supply Intern axial
Cutting direction Rechtsschneidend
Cutting material Solid carbide
D M6
D1 6 mm
Design TiAlN+C beschichtet
DIN 371
Form/Chamfer C
Harmonized System Code 82074010
ISO code Hartmaterial;Gehärteter Stahl
L 80 mm
L1 16 mm
Max. thread depth 2xD
Nominal diameter 6 mm
Pitch 1 mm
Shank style Zylindrisch mit Vierkantantrieb
Suitable for thread M3-M16
Surface TiAlN plus
Tapping hole Ø 5.00 mm
Thread M
Thread angle Flankenwinkel 60° °
Thread dimension M6
Threaded hole type Durchgangs-/Grundloch ≤ 2xD
Tolerance of screw taps 6H
Tool types according to DIN 4000 BGN2 - Gewindebohrer mit verstärktem Schaft
Twist angle 0°
WEEE (taking back waste electrical and electronic equipment) 0 - nicht zutreffend

Usage characteristics

fitness stainless steel total
hardened steel < 60 HRc
hardened steel ≤ 55 HRC
hardened steel ≤ 65 HRC

very suitable
suitable
