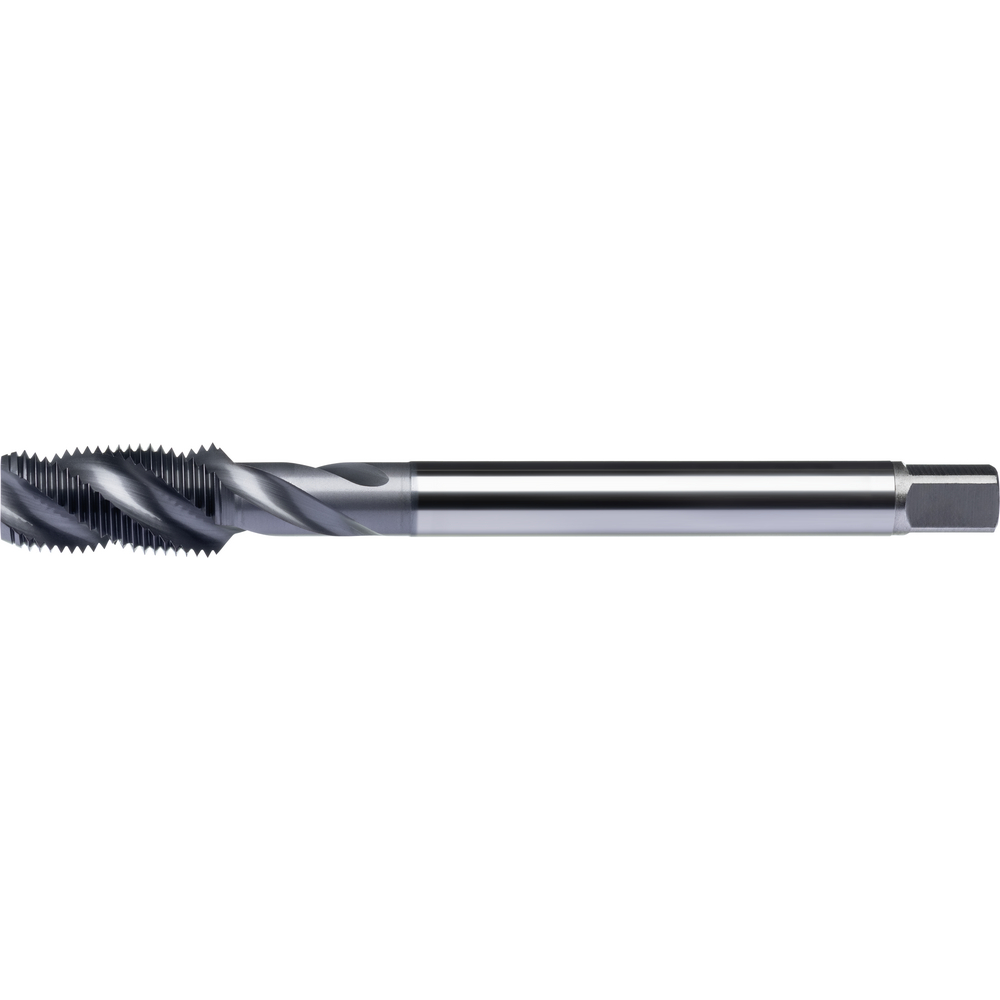

Maschinen-Gewindebohrer NPT 1-11,5 DIN5156/C HSSE-PM Grundloch 15° UNI TICN

Maschinen-Gewindebohrer NPT 1-11,5 DIN5156/C HSSE-PM Grundloch 15° UNI TICN
Maschinen-Gewindebohrer NPT 1-11,5 DIN5156/C HSSE-PM Grundloch 15° UNI TICN
Description
  • UNC/UNF/NPT
  • Form C, 2-3 thread chamfer, for blind-hole thread
  • Cutting material HSS-E-PM
  • Possible thread depth 2.5 x D
  • For universal application

Article no./ATORN no.
1320351115 / 12281162
Packaging unit
1
Stock status
in stock

We charge a material cost surcharge of 6,90% on this product.


Price
441,00 €
Add to shopping cart
Tool Finder

Technical characteristics

C 20 mm
Coolant supply External
Cutting material HSSE-PM
D1 25 mm
DIN 371/376
Form/Chamfer C
L 160 mm
L1 45 mm
Nominal diameter NPT 1 mm
Pitch 11,5 mm
Surface TiCN
Tapping hole Ø 28.5 mm
Thread NPT
Threaded hole type Grundloch ≤ 2,5xD
Twist angle 45°

Usage characteristics

aluminium < 8 % Si
aluminium ≥ 8 % Si
brass short
cast iron GGG
stainless steel austenitic
stainless steel ferrit./martens.
steel < 1000 N/mm²
steel < 1400 N/mm²
steel < 700 N/mm²
superalloys Fe/NiCo based < 30 HRC
superalloys Fe/NiCo based ≥ 30 HRc
titanium alloys

very suitable
suitable
