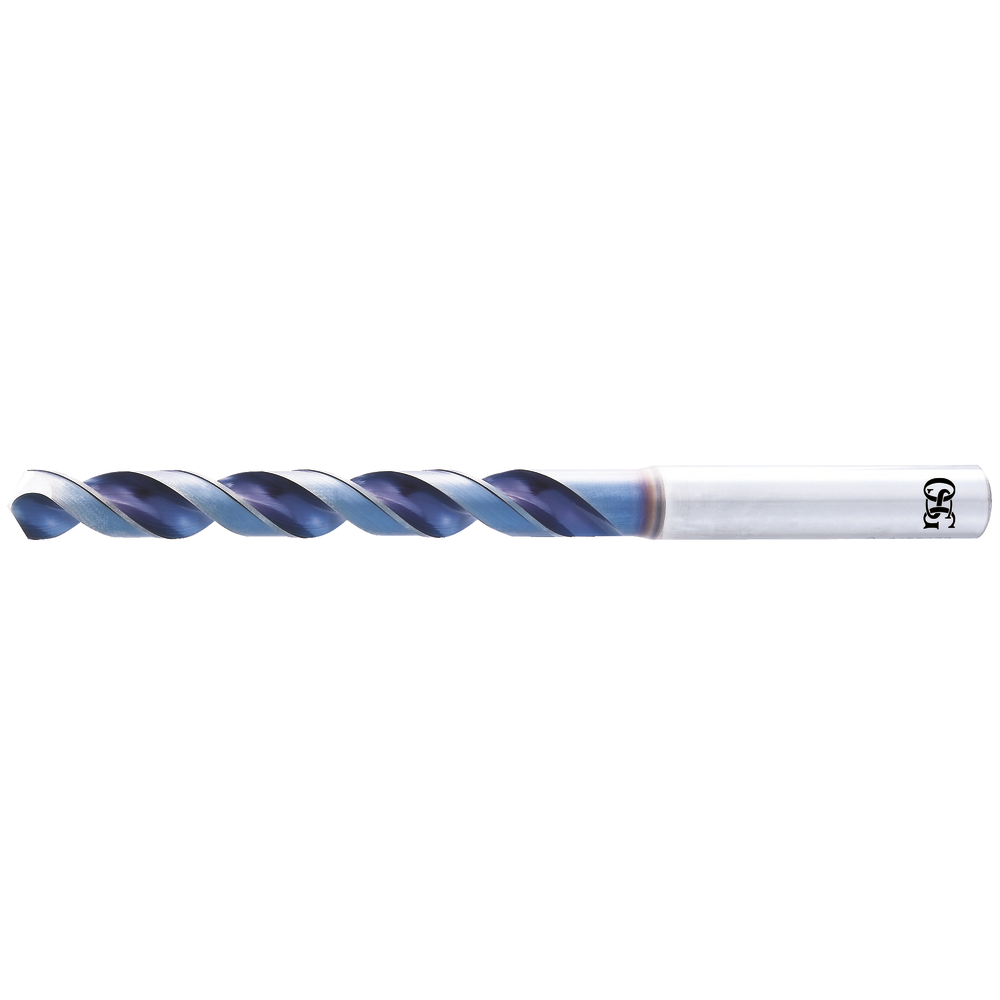

NEXUS-GDR high-performance drill HSS-E-V3 5xD 2,3mm WDI™-coated

NEXUS-GDR high-performance drill HSS-E-V3 5xD 2,3mm WDI™-coated
NEXUS-GDR high-performance drill HSS-E-V3 5xD 2,3mm WDI™-coated NEXUS-GDR high-performance drill HSS-E-V3 5xD 2,3mm WDI™-coated
Description
NEXUS-GDR twist drill
  • High spiral angle (35 - 40°) and unique flute shape reduce the cutting forces and the heat generated during machining
  • Short breakage chips even with tough materials such as stainless steel or copper
  • Shank design: straight
  • S°= point angle: < Ø 4 mm = 130°, > Ø 4 mm = 120°
  • Cutting material: high-quality vanadium alloy HSS, WDI™-coated
  • Wear-resistant, suitable for a broad range of materials thanks to multi-layer coating

Article no./ATORN no.
1140510230
Vendor Article no.
8655230
Packaging unit
1
Stock status
subsequent delivery
External stock
available
Price
20,35 €
Add to shopping cart
Tool Finder

Technical characteristics

Coating Cutting data Cutting material D D h8 D1 DIN Drilling depth Feed f steel < 700 N/mm² L L1 Max. drilling depth (D) Point angle S Shank Spiral angle Standard constructional dimensions DIN Tool holding device Twist angle Type Type
WDI Cutting angle Information - yes HSSE 2,30 mm 2,30 mm 3 mm ohne DIN 5xD 0,07 mm/rev 59 mm 27 mm 5xD Point angle 130° 130 ° Straight 35°-40° RH helix angle Non-DIN Zylinderschaft 37° | 40° Type VA Typ VA

Usage characteristics

aluminium < 8 % Si aluminium ≥ 8 % Si brass short cast iron GG/GTS cast iron GGG copper Cu-alloy graphite hardened steel < 55 HRc hardened steel < 60 HRc hardened steel ≤ 55 HRC hardened steel ≤ 65 HRC hardened steel ≥ 60 HRc stainless steel austenitic stainless steel duplex stainless steel ferrit./martens. steel < 1000 N/mm² steel < 1400 N/mm² steel < 700 N/mm² superalloys Fe/NiCo based < 30 HRC superalloys Fe/NiCo based ≥ 30 HRc titanium alloys

very suitable suitable

Cutting values Download
Cutting values Download
STEP Download
DXF Download
