Plug gauge DIN7162/7164 90mm K6

Plug gauge DIN7162/7164 90mm K6
Plug gauge DIN7162/7164 90mm K6
Description

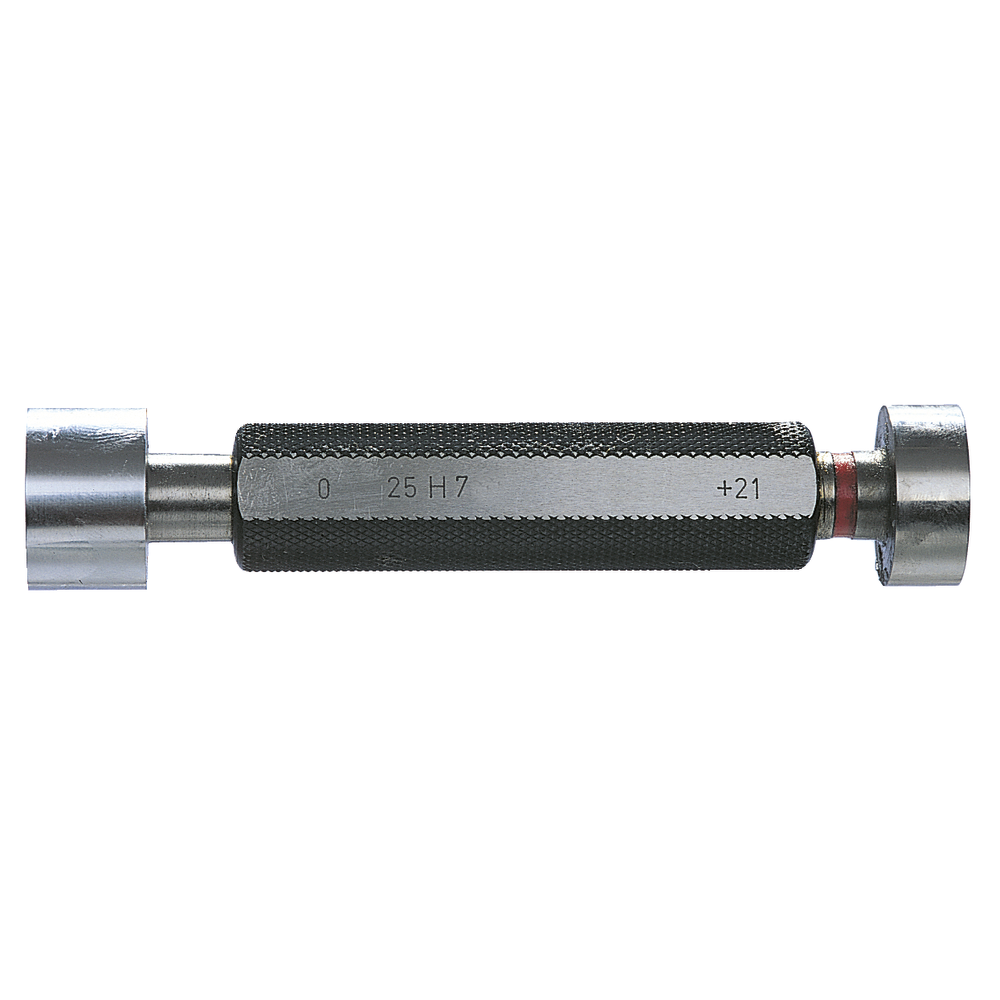

Limit plug gauges
  • Go/no-go bore testing
  • Tolerances and deviations in accordance with DIN EN ISO 1938-1 and DIN 7164
  • Go ends for limit plug gauges are supplied with additional wear allowances in accordance with DIN EN ISO 1938-1
  • Test pieces ground and lapped
  • Up to Ø 70 mm = go/no-go ends on a single handle; 2-part version above Ø 70 mm
  • Material: 540101.... to 540115....: Go/no-go made from wear-resistant gauge steel, hardened and aged
    540120....: Go end hard chrome-plated, no-go end gauge steel
  • Intermediate dimensions, other tolerance classes, numerical tolerances, carbide limit plug gauges or flat limit hole gauges are available on request!

Other tolerance classes
Limit plug gauges
  • Go/no-go bore testing
  • Tolerances and deviations in accordance with DIN EN ISO 1938-1 and DIN 7164
  • Go ends for limit plug gauges are supplied with additional wear allowances in accordance with DIN EN ISO 1938-1
  • Test pieces ground and lapped
  • Up to Ø 70 mm = go/no-go ends on a single handle; 2-part version above Ø 70 mm
  • Material: 540101.... to 540115....: Go/no-go made from wear-resistant gauge steel, hardened and aged
    540120....: Go end hard chrome-plated, no-go end gauge steel
  • Intermediate dimensions, other tolerance classes, numerical tolerances, carbide limit plug gauges or flat limit hole gauges are available on request!

Other tolerance classes
Article no./ATORN no.
5401150090
Packaging unit
1
Catalogue page
KS-1447
Stock status
subsequent delivery
Price
249,00 €
Add to shopping cart
Tool Finder

Technical characteristics

Design Design DIN DIN Nominal diameter Nominal diameter Standard constructional dimensions DIN
Steel, K6 Steel, K6 7150/2 2245 90 mm 90 mm 1938-1

Available options to this article:

DAkkS calibration go or no-go plug gauge up to 100 mm (2 pcs.)

Article no.: 073103D073

68,00 €

Inspection plate - next interval in months

Article no.: 0790010013

*

0,80 €

G r a v u r e:

Article no.: 0790010001

*

5,50 €
Catalogue page Download
Catalogue page Download
