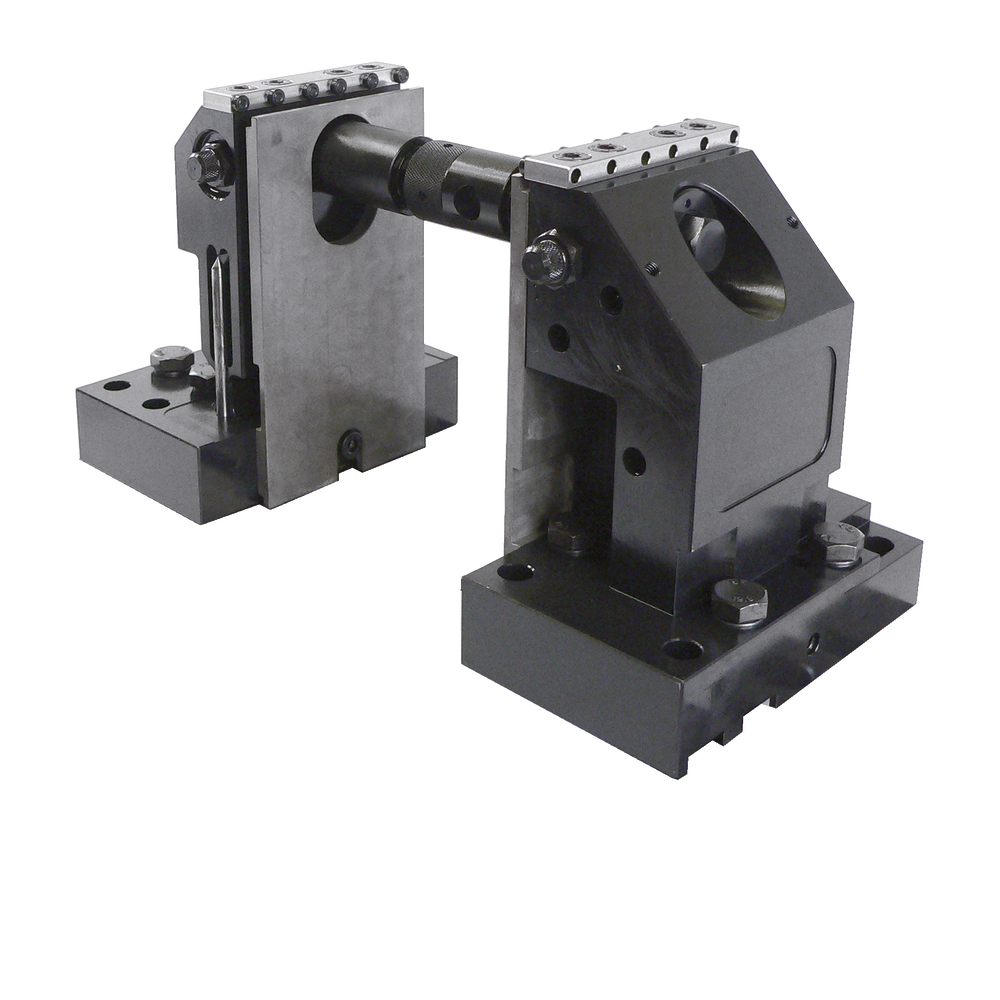

5-axis clamp set 5-AX 175 T-slot system incl. accessories

5-axis clamp set 5-AX 175 T-slot system incl. accessories
5-axis clamp set 5-AX 175 T-slot system incl. accessories
Description
5AX100 and 3AX100 5-axle clamping system
  • High clamping force (up to 42 kN) exactly where it is needed – due to the feed rod integrated directly below the workpiece support
  • No widening of the clamping jaws under load, no distortion of the work table
  • Allows maximum cutting forces due to extreme rigidity
  • The low clamping depth of 8 mm enables 5-sided machining without any protruding edges
  • Wide variety of clamping widths possible simply by moving the two jaws; options are limited only by the size of the work table
  • Clamps raw parts, machined parts, round and irregularly shaped parts
  • Positive-fit clamping with no knockout
  • 5 AX 100 can be set up on T-slot panels and tables, perforated grid plates and dedicated fixtures
  • Jaw width 100 mm
  • Supplied complete, without fixing or stop sets

5AX for slot spacing 63 - 126 mm
5AX100 and 3AX100 5-axle clamping system
  • High clamping force (up to 42 kN) exactly where it is needed – due to the feed rod integrated directly below the workpiece support
  • No widening of the clamping jaws under load, no distortion of the work table
  • Allows maximum cutting forces due to extreme rigidity
  • The low clamping depth of 8 mm enables 5-sided machining without any protruding edges
  • Wide variety of clamping widths possible simply by moving the two jaws; options are limited only by the size of the work table
  • Clamps raw parts, machined parts, round and irregularly shaped parts
  • Positive-fit clamping with no knockout
  • 5 AX 100 can be set up on T-slot panels and tables, perforated grid plates and dedicated fixtures
  • Jaw width 100 mm
  • Supplied complete, without fixing or stop sets

5AX for slot spacing 63 - 126 mm
Article no./ATORN no.
4591000175 / 21340051
Packaging unit
1
Stock status
subsequent delivery
Price
1.839,00 €
Add to shopping cart
Tool Finder

Technical characteristics

Clamp force Clamp force Clamping height Clamping height Clamping width Clamping width L4 L4 model model
5 - 42 kN 5 - 42 kN 175 mm 175 mm 22 - 236 mm 22 - 236 mm 8 mm 8 mm 5AX100/175 5AX100/175
STEP Download
Clamping jaws for 5-axis clamp, standard
Being ordered
205,00 €
Order quantity
Round clamping heads (4x) with 4 screws
Being ordered
117,00 €
Order quantity
Pin 6mm cup point
Pin 6mm cup point
4590100005
Being ordered
9,95 €
Order quantity
Extension shaft 60mm with union nut
Being ordered
96,00 €
Order quantity
Extension shaft 120mm with union nut
Being ordered
127,00 €
Order quantity
Extension shaft 240mm with union nut
Being ordered
159,00 €
Order quantity
Extension shaft 480mm with union nut
Being ordered
300,00 €
Order quantity
