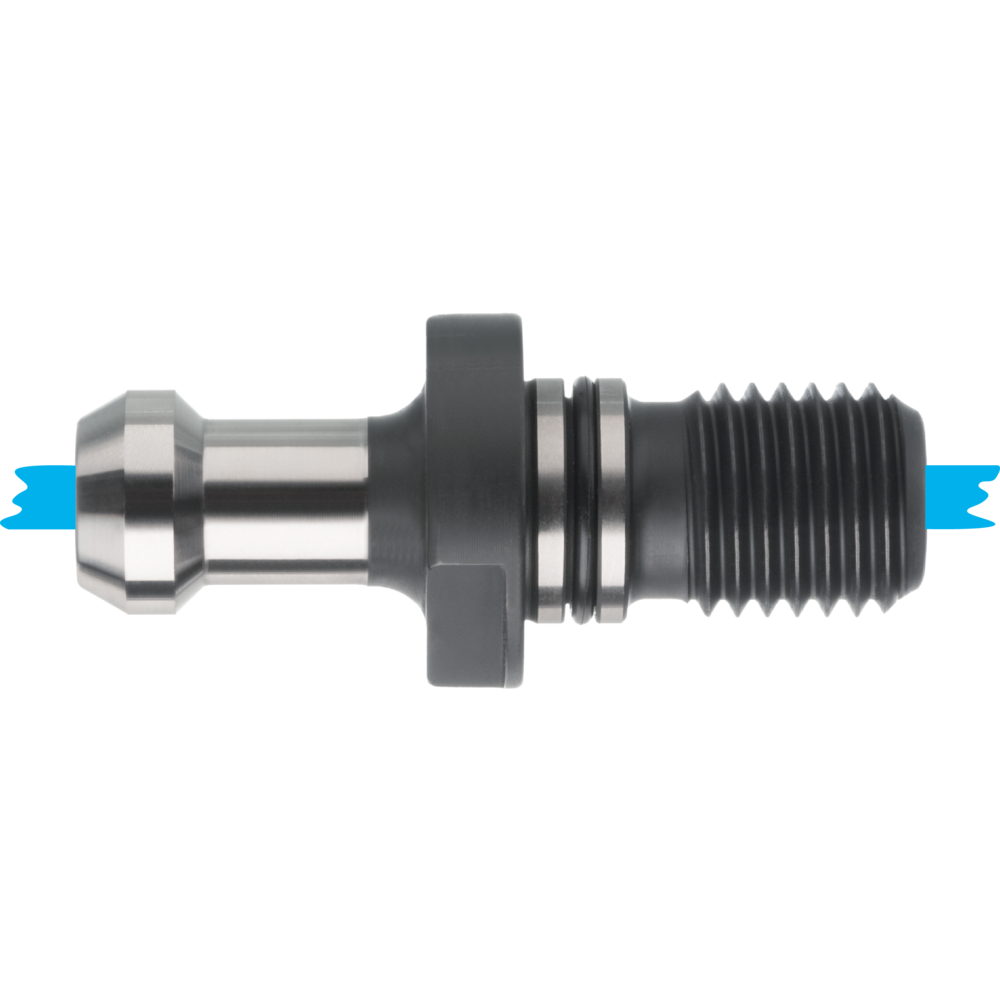

Pull stud MAS BT40 45°, with bore

Pull stud MAS BT40 45°, with bore
Pull stud MAS BT40 45°, with bore Pull stud MAS BT40 45°, with bore
Description
Pull studs
  • For tools with a steep-angle taper in accordance with DIN 69871 and JIS B 6339 (MAS-BT)
  • All pull studs made from 16MnCr5, case hardened to HRC 58 ± 2
  • Soft thread and bore, burnished and ground
  • Pull studs with O-ring = sealed
  • Other versions available on request (machine model must be specified)

DIN ISO 7388-3 JD 45°, with bore
Pull studs
  • For tools with a steep-angle taper in accordance with DIN 69871 and JIS B 6339 (MAS-BT)
  • All pull studs made from 16MnCr5, case hardened to HRC 58 ± 2
  • Soft thread and bore, burnished and ground
  • Pull studs with O-ring = sealed
  • Other versions available on request (machine model must be specified)

DIN ISO 7388-3 JD 45°, with bore
Article no./ATORN no.
4385094540 / 20800051
Packaging unit
1
Catalogue page
KS-1172
Stock status
in stock
External stock
available
Price
13,10 €
Add to shopping cart
Tool Finder

Technical characteristics

Aussendurchmesser Bohrdurchmesser Coolant supply Coolant supply D D D D D1 D1 Design Design Drill hole Drill hole for thread for thread Gewindedurchmesser L L L1 L1 Standard constructional dimensions DIN Standard constructional dimensions DIN Suitable for tool holding device Suitable for tool holding device Winkel Zapfenlänge
15 mm 4 mm Yes Yes 15 mm 17 mm 15 mm 17 mm 10 mm 10 mm With O-ring mm With O-ring mm 4 mm 4 mm M16 M16 16 mm 60 mm 60 mm 35 mm 35 mm 7388-2 B 7388-2 B SK 40 SK 40 45 ° 35 mm
ASSET_MatSafetyDataSheet Download
Catalogue page Download
