Maschinen-Gewindebohrer S-POT 6GX MF22x1,5 6GX

Maschinen-Gewindebohrer S-POT 6GX MF22x1,5 6GX
Maschinen-Gewindebohrer S-POT 6GX MF22x1,5 6GX Maschinen-Gewindebohrer S-POT 6GX MF22x1,5 6GX
Description

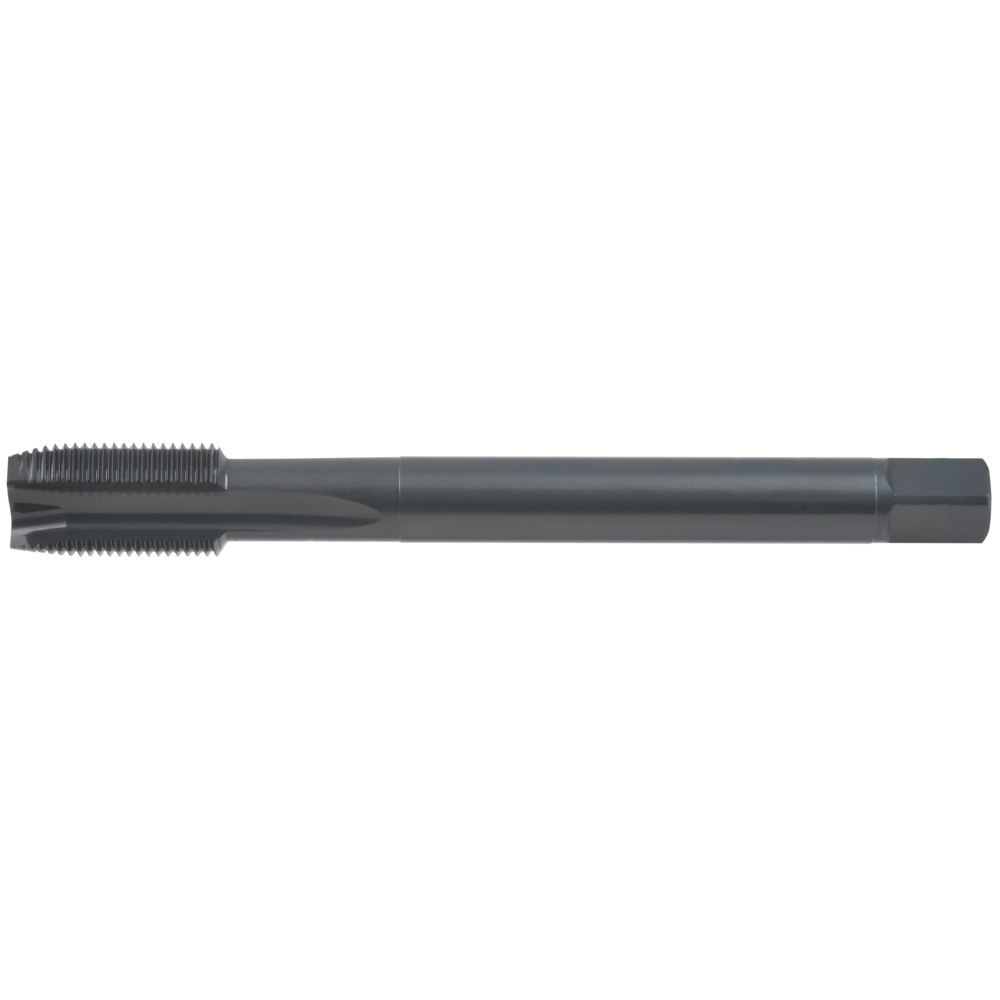

Machine tap S-POT 6GX
  • Metric ISO3-6GX fine thread
  • straight-fluted with spiral point
  • Form B, 4-thread chamfer
  • Cutting material HSS-E, vapour-treated
  • For through-hole threads

Article no./ATORN no.
1339722215
Vendor Article no.
48272240
Packaging unit
1
Catalogue page
KS-0267
Cutting values
SW-0401
Stock status
Only 2 pieces left!
Special offer
46,40 €
(113,00 € catalogue price / 59% saved)
Add to shopping cart
Tool Finder

Technical characteristics

C Coolant supply Cutting data Cutting material D D1 DIN Form/Chamfer L L1 Max. thread depth Pitch Surface Tapping hole Ø Thread Thread angle Threaded hole type Tolerance of screw taps Twist angle
14,5 Nein Schnittw. Info-ja HSSE MF 22 18 mm 374 B 125 mm 25 mm 3xD 1,5 mm Vaporisiert 20,5 mm Metrisches Feingewinde 60 ° Durchgangsloch ≤ 3xD ISO 3 (6G) 0 - nicht zutreffend

Usage characteristics

aluminium < 8 % Si aluminium ≥ 8 % Si brass short cast iron GG/GTS cast iron GGG graphite hardened steel < 60 HRc hardened steel ≤ 55 HRC hardened steel ≤ 65 HRC stainless steel austenitic stainless steel duplex stainless steel ferrit./martens. steel < 1000 N/mm² steel < 1400 N/mm² steel < 700 N/mm² superalloys Fe/NiCo based < 30 HRC superalloys Fe/NiCo based ≥ 30 HRc titanium alloys

very suitable suitable

Catalogue page Download
Cutting values Download
