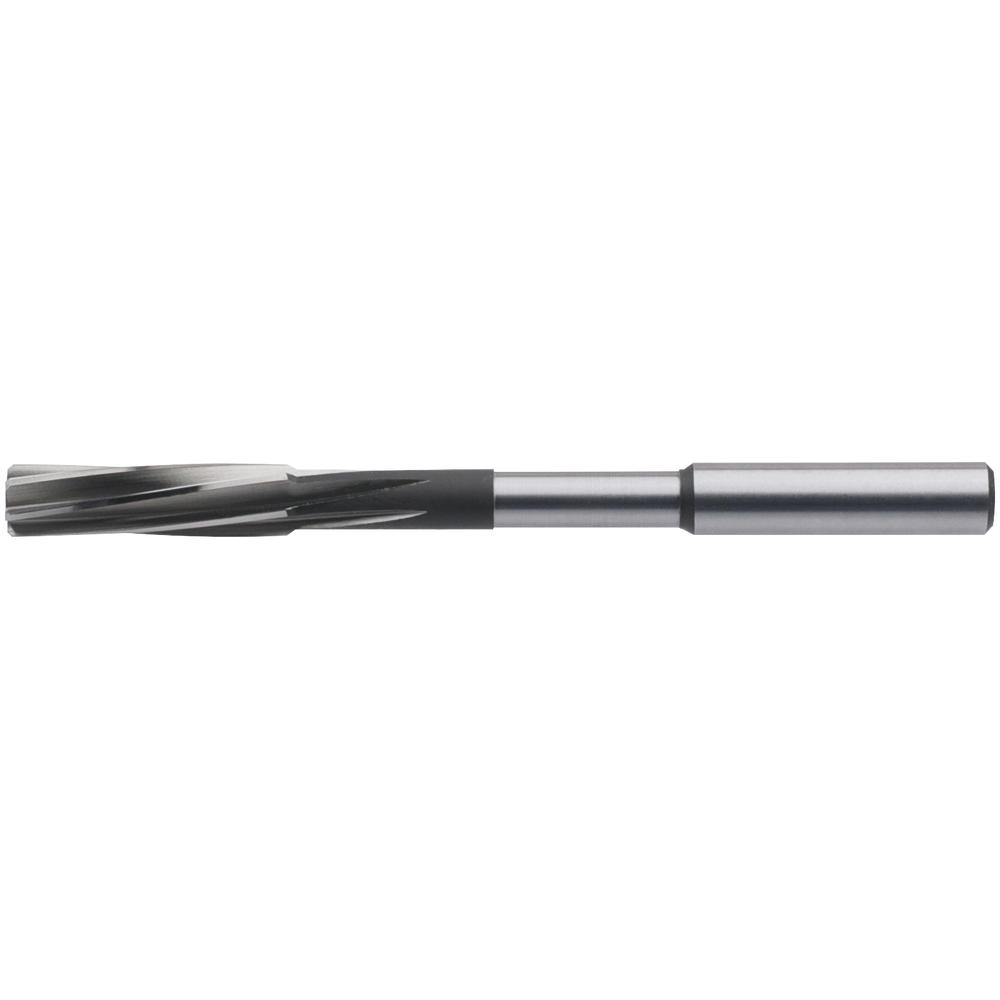

NC-Maschinen-Reibahle HSS-E ähnl. DIN212D 2,00mm H7

NC-Maschinen-Reibahle HSS-E ähnl. DIN212D 2,00mm H7
NC-Maschinen-Reibahle HSS-E ähnl. DIN212D 2,00mm H7
Description
Drilling
Additional and special catalogues
NC machine reamers
  • For H7 fit
  • Right-hand cutting
  • Cutting material: HSS-E
  • Straight shank without square end
  • Form D: spiral-fluted with offset shank
  • To ensure maximum true running accuracy for use in hydraulic expansion chucks and high-precision chucks, these reamers are delivered with even shank diameters suitable
  • for reaming through-holes and blind holes
  • Also available in TiN-coated version

Single
Article no./ATORN no.
1610100020 / 10048355
Packaging unit
1
Stock status
subsequent delivery
Price
18,20 €
Add to shopping cart
Tool Finder

Technical characteristics

Coating Coolant supply Cutting data Cutting material D D1 DIN Feed f steel < 1000 N/mm² L L1 L4 Surface Tolerance of fit Tolerance of shank diameter Tool holding device Twist angle Z
uncoated External Cutting angle Information - yes HSSE 2 mm 2 mm 212 0,1 mm/rev 49 mm 11 mm 25 mm Uncoated H7 h6 HA parallel shank 9° (left) 4 pc.

Usage characteristics

aluminium < 8 % Si aluminium ≥ 8 % Si brass long brass short bronze long bronze short cast iron GG/GTS cast iron GGG graphite hardened steel < 60 HRc hardened steel ≤ 55 HRC hardened steel ≤ 65 HRC plastic stainless steel austenitic stainless steel duplex stainless steel ferrit./martens. steel < 1000 N/mm² steel < 1400 N/mm² steel < 700 N/mm² superalloys Fe/NiCo based < 30 HRC superalloys Fe/NiCo based ≥ 30 HRc titanium alloys

very suitable suitable
