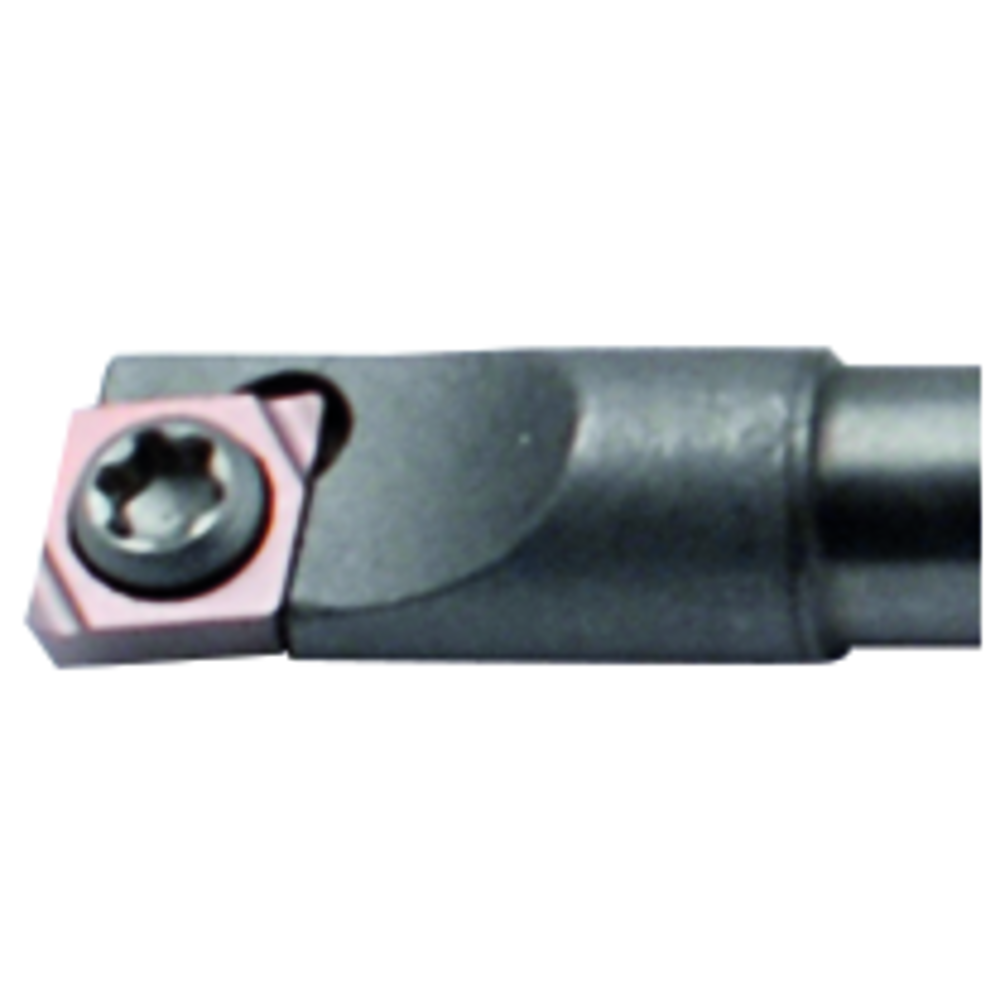

SC boring bar C05H SCLC-L-03 setting angle 95°, for II CC..0301.., IC

SC boring bar C05H SCLC-L-03 setting angle 95°, for II CC..0301.., IC
SC boring bar C05H SCLC-L-03 setting angle 95°, for II CC..0301.., IC SC boring bar C05H SCLC-L-03 setting angle 95°, for II CC..0301.., IC
Description
Boring bar, positive SCLC
  • SCLC R/L 95°
  • Setting angle 95°, for rhombic indexable insert positive 7°, 80° point angle
  • Used for longitudinal turning, very well suited for small holes
  • With internal cooling
  • D min from 5.0 mm
  • Note: right boring bar = left WP, left boring bar = right WP

Solid carbide version
Article no./ATORN no.
3211020105 / 11111259
Packaging unit
1
Catalogue page
KS-0942
Stock status
subsequent delivery
Price
276,00 €
Add to shopping cart
Tool Finder

Technical characteristics

Anstellwinkel Coolant supply D min. D1 Design DIN F Freiwinkel H ISO designation Klemmsystem L L2 Schaftausführung Schneidenlänge suitable indexable inserts Wendeschneidplattenform ISO Wendeschneidplattenwinkel
95 ° Internal 6 mm 5 mm Left 8024 3 mm 7 ° 4 mm E 05 H SCLC R/L 03 S 100 mm 10 mm C 3 mm CC.. 0301.. C 80 °
STEP Download
ASSET_MatSafetyDataSheet Download
Catalogue page Download
Clamping screw SDX XPM 04 (0.5 Nm)
Being ordered
20,50 €
Order quantity
