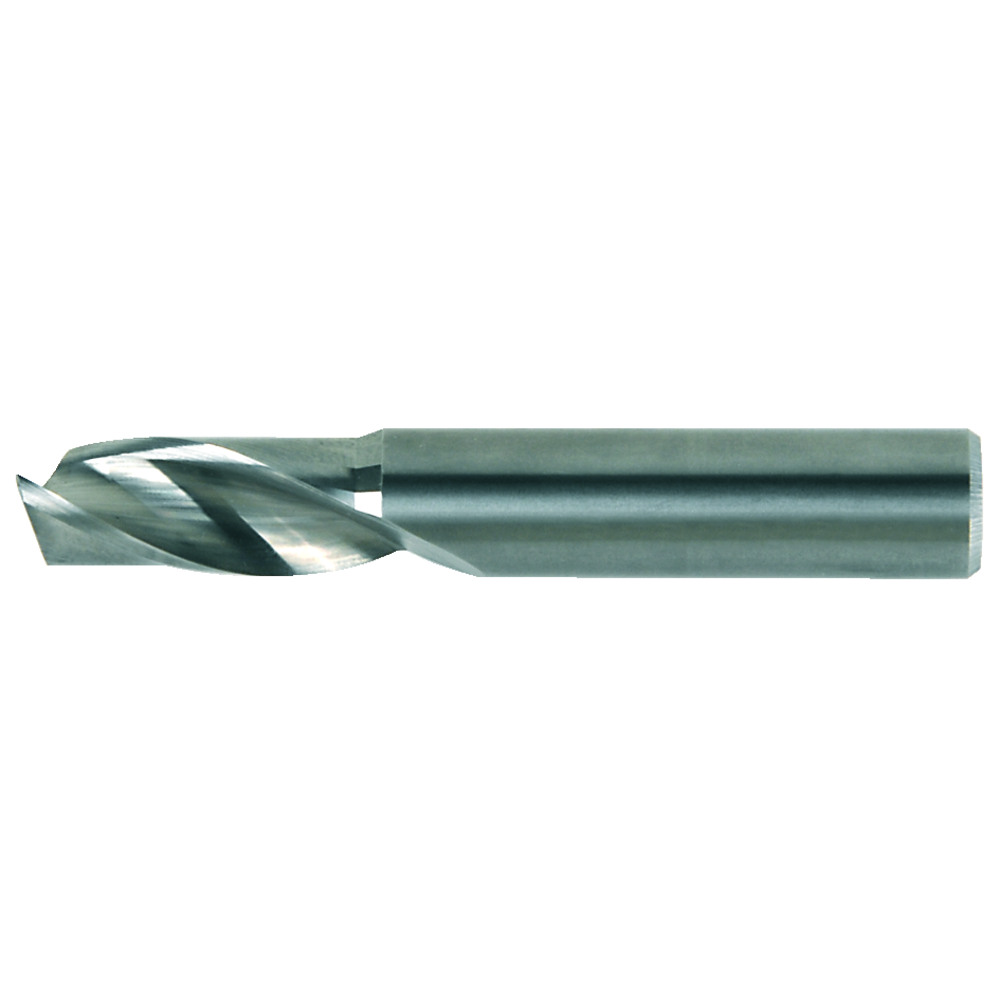

Solid carbide end milling cutter HSC 1,2mm Z=1 HA

Solid carbide end milling cutter HSC 1,2mm Z=1 HA
Solid carbide end milling cutter HSC 1,2mm Z=1 HA Solid carbide end milling cutter HSC 1,2mm Z=1 HA
Description
Also very good for synthetic materials

Single-blade end milling cutter
  • Especially for machining non-ferrous materials

Article no./ATORN no.
2500010012
Vendor Article no.
VHAE10120380310
Packaging unit
1
Catalogue page
KS-0464
Cutting values
SW-0754
Stock status
subsequent delivery
Price
45,20 €
Add to shopping cart
Tool Finder

Technical characteristics

Application direction milling Coolant supply Cutting data Cutting material D D1 F x 45° Feed fz aluminium < 8 % Si Feed fz aluminium < 8 % Si L L1 Milling technology Overall length Surface Tolerance of cutting edge diameter Tolerance of shank diameter Tool holding device Twist angle Z
Lining, ramping and drilling Extern Cutting angle Information - yes Solid carbide 1,2 mm 3 mm - mm 0,01435 mm/tooth 0,0205 mm/tooth 38 mm 5 mm HSC Normal Uncoated e8 h5 HA parallel shank 30° 1 pc.

Usage characteristics

aluminium < 8 % Si aluminium ≥ 8 % Si brass short cast iron GG/GTS cast iron GGG graphite hardened steel < 60 HRc hardened steel ≤ 55 HRC hardened steel ≤ 65 HRC stainless steel austenitic stainless steel duplex stainless steel ferrit./martens. steel < 1000 N/mm² steel < 1400 N/mm² steel < 700 N/mm² superalloys Fe/NiCo based < 30 HRC superalloys Fe/NiCo based ≥ 30 HRc titanium alloys

very suitable suitable
