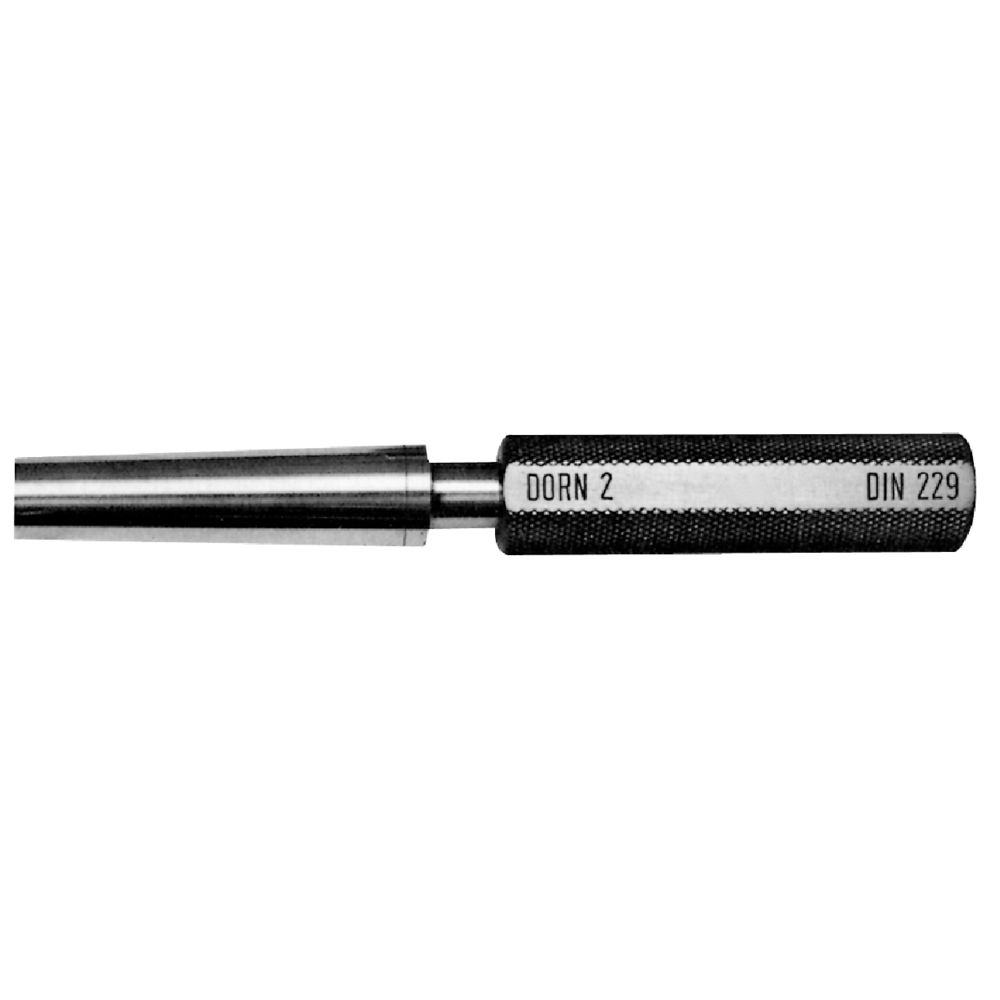

Morse taper plug gauge DIN229 without tang MK5

Morse taper plug gauge DIN229 without tang MK5
Morse taper plug gauge DIN229 without tang MK5
Description
Morse taper gauges
  • Testing of conical shanks and drill holes on tools and machine tools
  • Wear-resistant gauge steel, aged and hardened
  • Ground, with lapped taper surfaces
  • 540501.... Taper plug gauge without tang DIN 229
    540505.... Taper sleeve gauge without tang DIN 229

  • The following plug gauges and gauge sleeves and/or ring gauges are available on request:
    Taper gauges for steep-angle taper DIN 2079 and 2080
    Metric taper gauges according to DIN 234 and 235
    Drill chuck taper gauges according to DIN 2221 and 2222
    Serration gauges according to DIN 5481
    Gauges for splined shafts and splined profile hubs according to
    DIN 5462, 5463, 5464, 5465, 5471, 5472 and 5641
    Special-purpose gauges to your specifications

Morse taper plug gauge
Morse taper gauges
  • Testing of conical shanks and drill holes on tools and machine tools
  • Wear-resistant gauge steel, aged and hardened
  • Ground, with lapped taper surfaces
  • Tolerance class AT4
  • 540501.... Taper plug gauge without tang DIN 229
    540505.... Taper sleeve gauge without tang DIN 229

  • The following plug gauges and gauge sleeves and/or ring gauges are available on request:
    Taper gauges for steep-angle taper DIN 2079 and 2080
    Metric taper gauges according to DIN 234 and 235
    Drill chuck taper gauges according to DIN 2221 and 2222
    Serration gauges according to DIN 5481
    Gauges for splined shafts and splined profile hubs according to
    DIN 5462, 5463, 5464, 5465, 5471, 5472 and 5641
    Special-purpose gauges to your specifications

Morse taper plug gauge
Article no./ATORN no.
5405010005
Packaging unit
1
Catalogue page
KS-1449
Stock status
subsequent delivery
Price
278,00 €
Add to shopping cart
Tool Finder

Technical characteristics

DIN DIN Taper shank size Taper shank size
229 229 MT 5 MT 5

Available options to this article:

Factory calibration taper plug gauge up to 50 mm

Article no.: 073103W138

46,00 €

Inspection plate - next interval in months

Article no.: 0790010013

*

0,80 €

G r a v u r e:

Article no.: 0790010001

*

5,50 €
