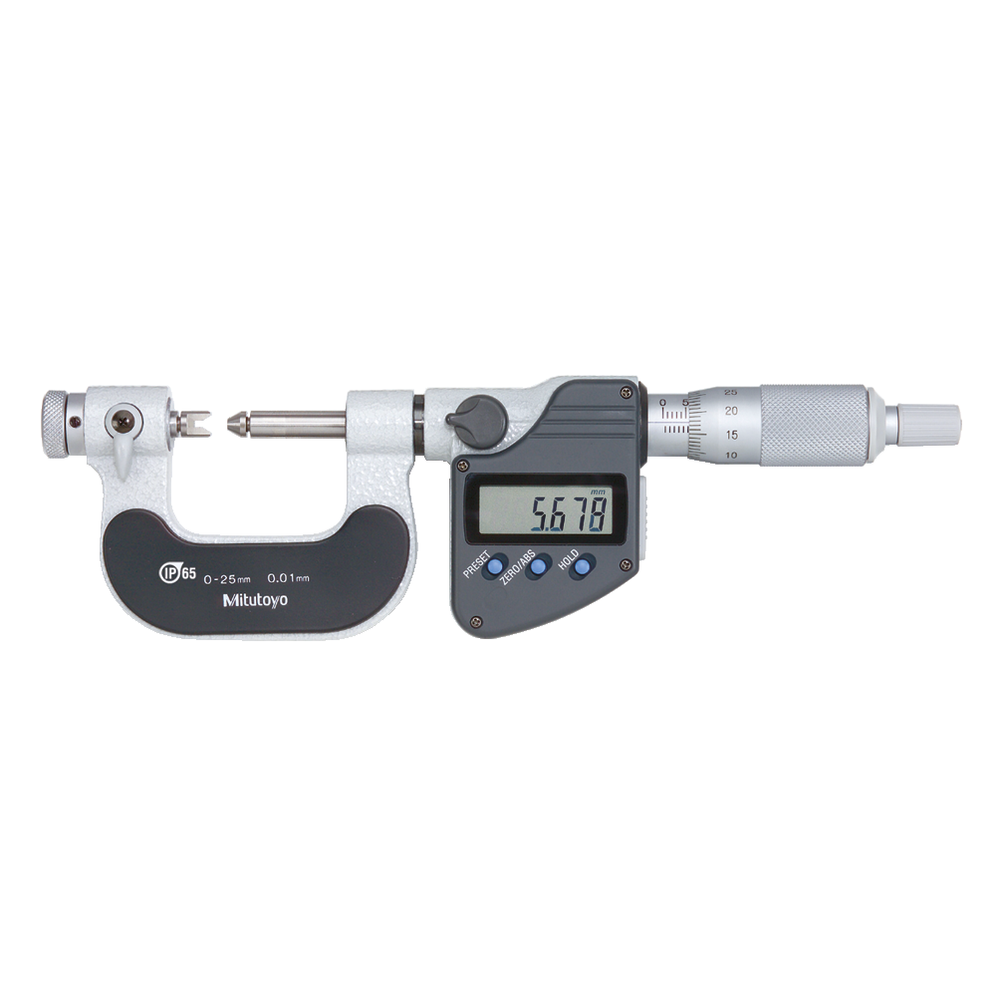

Digital outside micrometer 0-25mm D18 (0,001mm) for thread measuring inserts

Digital outside micrometer 0-25mm D18 (0,001mm) for thread measuring inserts
Digital outside micrometer 0-25mm D18 (0,001mm) for thread measuring inserts Digital outside micrometer 0-25mm D18 (0,001mm) for thread measuring inserts Digital outside micrometer 0-25mm D18 (0,001mm) for thread measuring inserts
Description
Special-purpose outside micrometers for testing external threads
  • Type D18, with locating bores for optional thread inserts
  • For measuring pitch diameters on external threads
  • Painted steel frame with hand protection, spindle fixed by means of a locking lever
  • Scale barrel Ø: 18 mm
  • Spindle Ø: 6.35 mm
  • Calibration includes setting gauge
  • Measuring inserts not included

Digital
  • LCD display with 7.5 mm high digits
  • 0.001 mm readings
  • Automatic switch-off, battery check
  • Supplied with SR44 battery (no. 500534 0001) and adjustment key, versions over 25 mm include 60° setting gauge
  • Optional accessories: Digimatic cable type B, no. 563100 0011 (1 m), no. 563100 0012 (2 m); USB cable type B-USB, no. 563110 0002

Article no./ATORN no.
5036151025
Vendor Article no.
326-251-30
Packaging unit
1
Catalogue page
KS-1382
Stock status
subsequent delivery
Price
874,00 €
Add to shopping cart
Tool Finder

Technical characteristics

A Data transmission type Depth Digit increment DIN Display Included in delivery Measurement chuck Measurement range Measuring spindle increments Output data format Packaging / Shipment Protection type Reading Standard constructional dimensions DIN
25 mm DIGIMATIC/USB 25 mm 0,001 mm 863/3 Digital Sturdy box Spindle pitch 0.5 mm 0-25 mm 0,5 mm Digimatic Sturdy box IP 65 0.001 mm readings DIN 863/3

Available options to this article:

Factory calibration threaded micrometer up to 25 mm

Article no.: 071260W001

24,00 €

Inspection plate - next interval in months

Article no.: 0790010013

*

0,80 €

G r a v u r e:

Article no.: 0790010001

*

5,50 €
Catalogue page Download
Catalogue page Download
