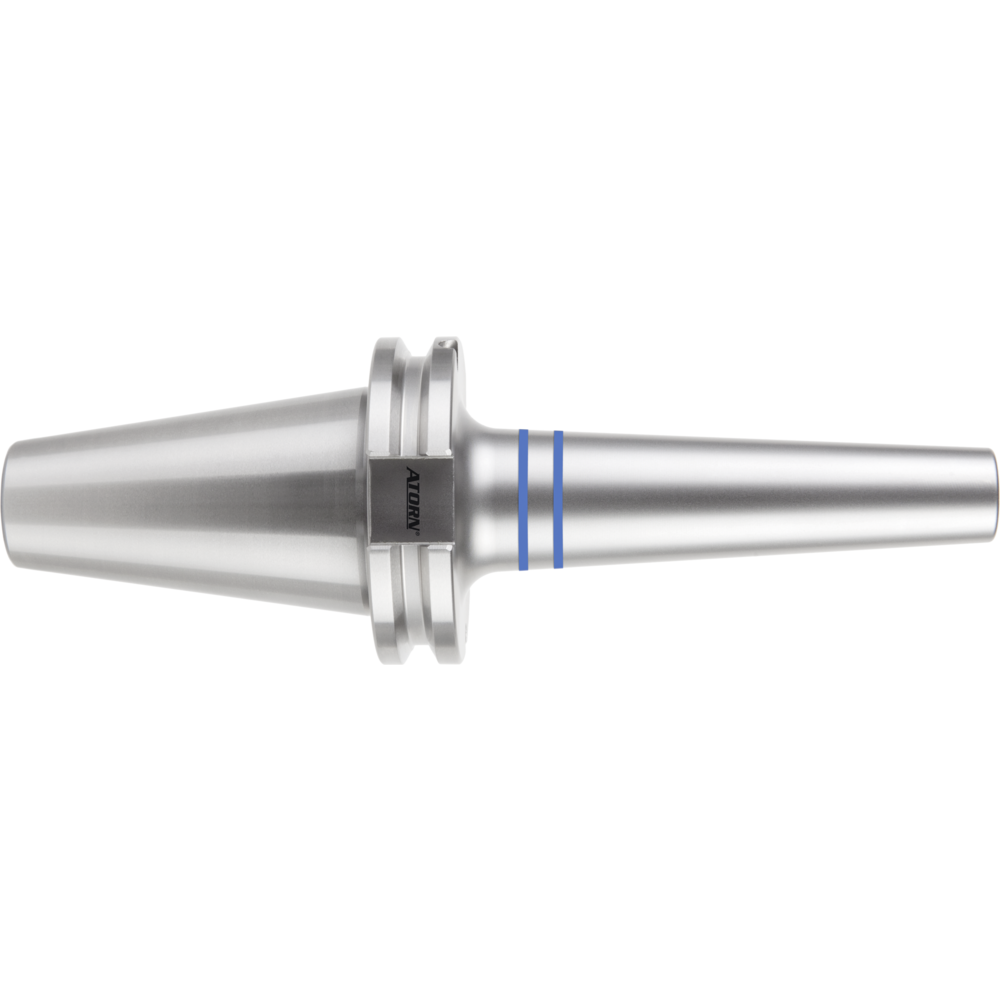

Shrink fit holder SK40 DIN69871/ISO 7388-1 Type AD/AF, 18mm slim version, 3°

Shrink fit holder SK40 DIN69871/ISO 7388-1 Type AD/AF, 18mm slim version, 3°
Shrink fit holder SK40 DIN69871/ISO 7388-1 Type AD/AF, 18mm slim version, 3° Shrink fit holder SK40 DIN69871/ISO 7388-1 Type AD/AF, 18mm slim version, 3°
Description
Shrink fit holding fixtures 3°, slim version
  • High torque transfer
  • High true running accuracies 0.003 mm
  • 3° range, slim version
  • High contour flexibility
  • Heat-resistant mild steel
  • Further shank designs available on request
  • Balanced to G 2.5 / 25,000 rpm
  • With Balluffchip bore

DIN ISO 7388-1 / DIN 69871 AD/AF
  • Internal coolant supply

Article no./ATORN no.
4404302018 / 21044795
Packaging unit
1
Stock status
in stock
Price
314,00 €
Add to shopping cart
Tool Finder

Technical characteristics

A Aussendurchmesser Coolant supply D D1 D2 DIN Einspanntiefe max. Form L2 L3 L4 Overall length Rundlauftoleranz Shank Standard constructional dimensions DIN Suitable for thread Taper type Thread Thread dimension Tool holding device Weight Wr. width Wuchtgüte
200 mm 36 mm Internal axial/internal radial 36 mm 18 mm 24 mm 69871-1 50 mm AD/AF 50 mm 10 mm 40 mm Slim-long 0,003 mm SK40 7388-1 M12 x 1 SK40 M12 x 1 M12 x 1 SK 40 2,8 kg 5 mm G 2,5 bei 25000 1/min
ASSET_MatSafetyDataSheet Download
