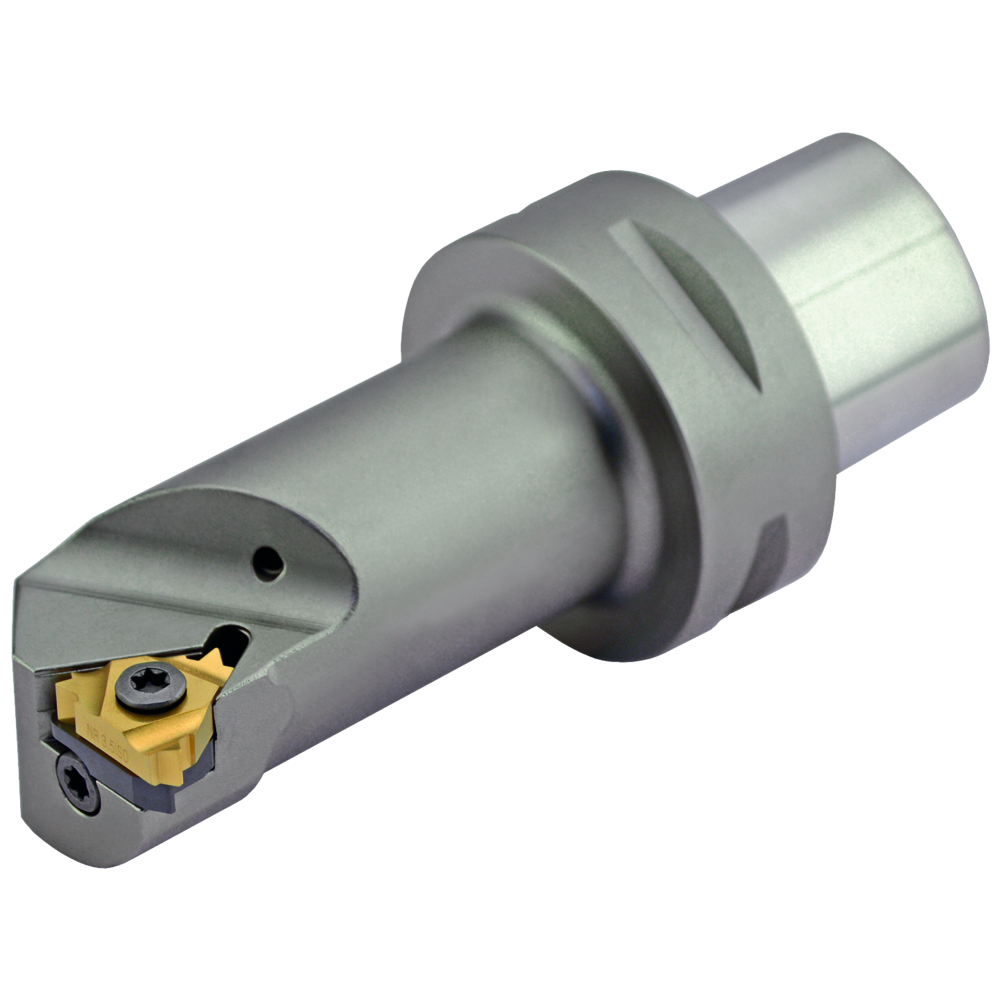

Polygonal thread internal holder PSC50 SIL22090 16 for indexable insert IL16

Polygonal thread internal holder PSC50 SIL22090 16 for indexable insert IL16
Polygonal thread internal holder PSC50 SIL22090 16 for indexable insert IL16 Polygonal thread internal holder PSC50 SIL22090 16 for indexable insert IL16
Description
Polygonal thread boring bar SI90°
  • SI 90°
  • For ISO thread turning insert types IR16 and IR22, setting angle 90º
  • For ISO thread turning insert types IL16 and IL22, setting angle 90º
  • Surface hardness 58 - 60 HRC
  • Core strength HV 670 N/mm²
  • Case depth 0.8 mm ± 0.2 mm
  • Fully burnished and precision-ground
  • Taper surface accuracy max. 1 μm

Article no./ATORN no.
3120280002
Packaging unit
1
Stock status
subsequent delivery
Price
392,00 €
Add to shopping cart
Tool Finder

Technical characteristics

Coolant design D min. D1 D5 Design F1 for indexable inserts ISO designation L1 L3
Internal axial 40 mm 32,0 mm 50 mm Left-hand 22 mm IL..16 PSC50 SI.. 22090 16 90 mm 69 mm
