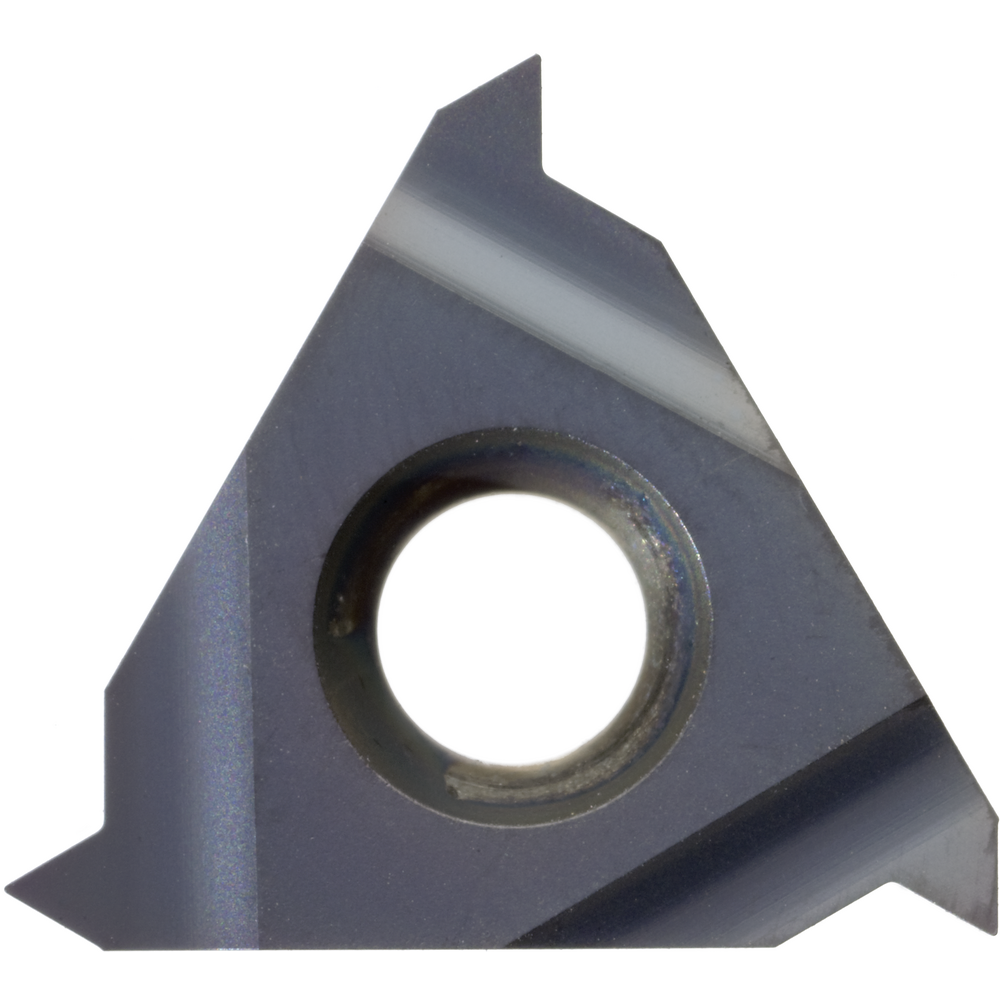

Threading insert partial profile 55° 22ER N55 HC5630 (7-5 thread/inch)

Threading insert partial profile 55° 22ER N55 HC5630 (7-5 thread/inch)
Threading insert partial profile 55° 22ER N55 HC5630 (7-5 thread/inch) Threading insert partial profile 55° 22ER N55 HC5630 (7-5 thread/inch) Threading insert partial profile 55° 22ER N55 HC5630 (7-5 thread/inch)
Description
Thread cutting inserts, partial profile, 55°
  • Partial profile, 55°
  • Inserts available in left-hand version on request

Partial profile, 55° external right-hand, ground
Article no./ATORN no.
3424010527 / 11941063
Packaging unit
2
Catalogue page
KS-0968
Cutting values
SW-1100
Stock status
Only 4 pieces left!
Special offer
15,24 €
(37,40 € catalogue price / 59% saved)
Add to shopping cart
Tool Finder

Technical characteristics

Carbide type Design Designation Gangzahl pro Zoll max. Gangzahl pro Zoll min. ISO designation ISO H ISO K ISO M ISO N ISO P ISO S L Min./max. number of thread starts per inch Min./max. Vc in cast iron Min./max. Vc in stainless steel Min./max. Vc in steel Vc in Edelstahl max. Vc in Edelstahl min. Vc in Guss max. Vc in Guss min. Vc in Stahl max. Vc in Stahl min.
HC5630 HC 5630 22 ER N55 5 7 22 (ER/EL) N55 1 1 1 3 1 1 22 mm 7-5 100-110 m/min 80-100 m/min 90-120 m/min 100 m/min 80 m/min 110 m/min 100 m/min 120 m/min 90 m/min
ASSET_MatSafetyDataSheet Download
Catalogue page Download
Cutting values Download
