Cutting insert Z22.0815.01 metric ISO partial profile 1,5mm HC8620

Cutting insert Z22.0815.01 metric ISO partial profile 1,5mm HC8620
Cutting insert Z22.0815.01 metric ISO partial profile 1,5mm HC8620
Description
Further tools for bore diameters 10 to 33 mm available on request

Tool system for machining drill holes MINI-MILL
  • Type ZH 22 from bore Ø 22 mm
  • Solid carbide inserts, quality grade HC 8620
  • Solid carbide milling cutter shank with internal coolant supply
  • Steel milling cutter shank with internal coolant supply
  • 3-rib toothing
  • For machining grooves, circlip grooves, ISO metric threads, Whitworth pipe threads and full radius grooves, as well as for chamfering and deburring

Cutting inserts for ISO metric threads, partial profile
Article no./ATORN no.
2631040015
Vendor Article no.
Z22.0815.01/AL41F
Packaging unit
1
Catalogue page
KS-0610
Cutting values
SW-0802
Stock status
in stock
External stock
available
Price
52,50 €
Add to shopping cart
Tool Finder

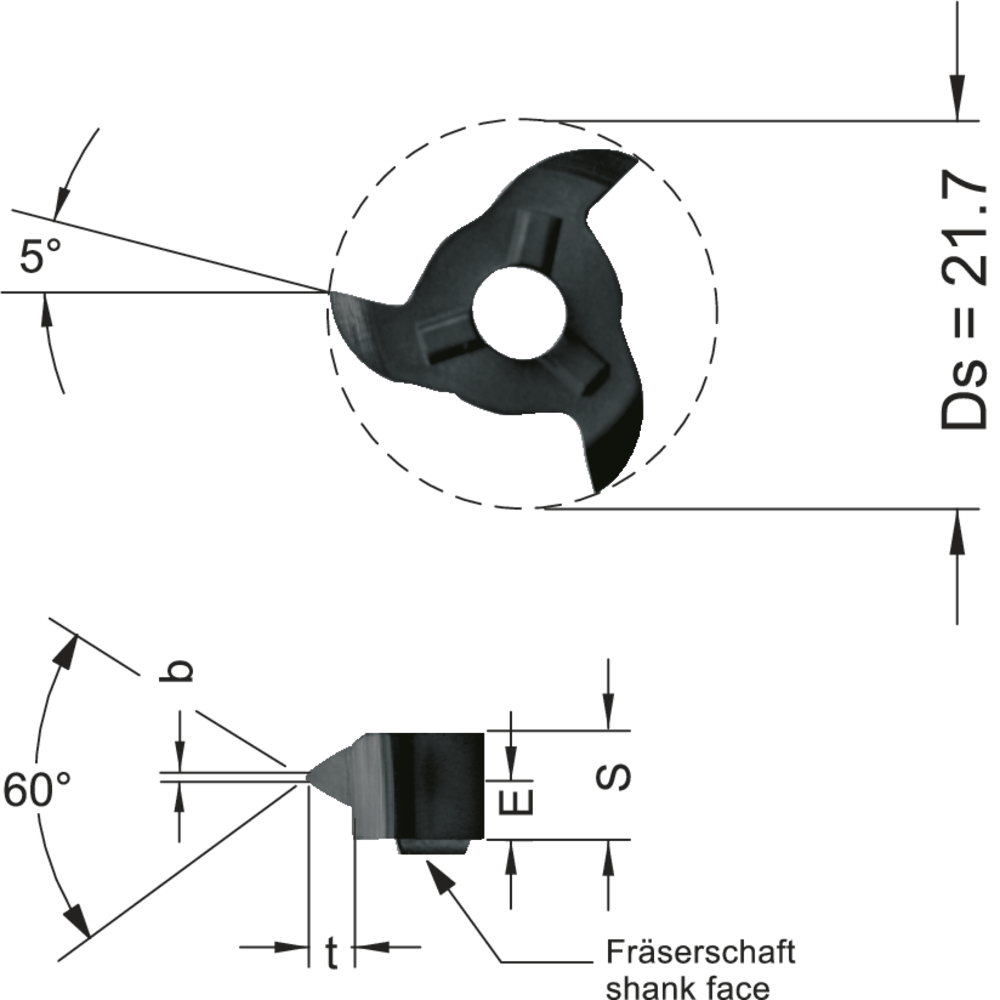

Technical characteristics

B Design Designation E Pitch P S T
0,18 mm HC8620 Z 22.0815.01 4,8 mm 1,5 - 2,75 mm 5,85 mm 1,62 mm

Usage characteristics

aluminium < 8 % Si aluminium ≥ 8 % Si brass short cast iron GG/GTS cast iron GGG graphite hardened steel < 60 HRc hardened steel ≤ 55 HRC hardened steel ≤ 65 HRC stainless steel austenitic stainless steel duplex stainless steel ferrit./martens. steel < 1000 N/mm² steel < 1400 N/mm² steel < 700 N/mm² superalloys Fe/NiCo based < 30 HRC superalloys Fe/NiCo based ≥ 30 HRc titanium alloys

very suitable suitable

Catalogue page Download
Cutting values Download
