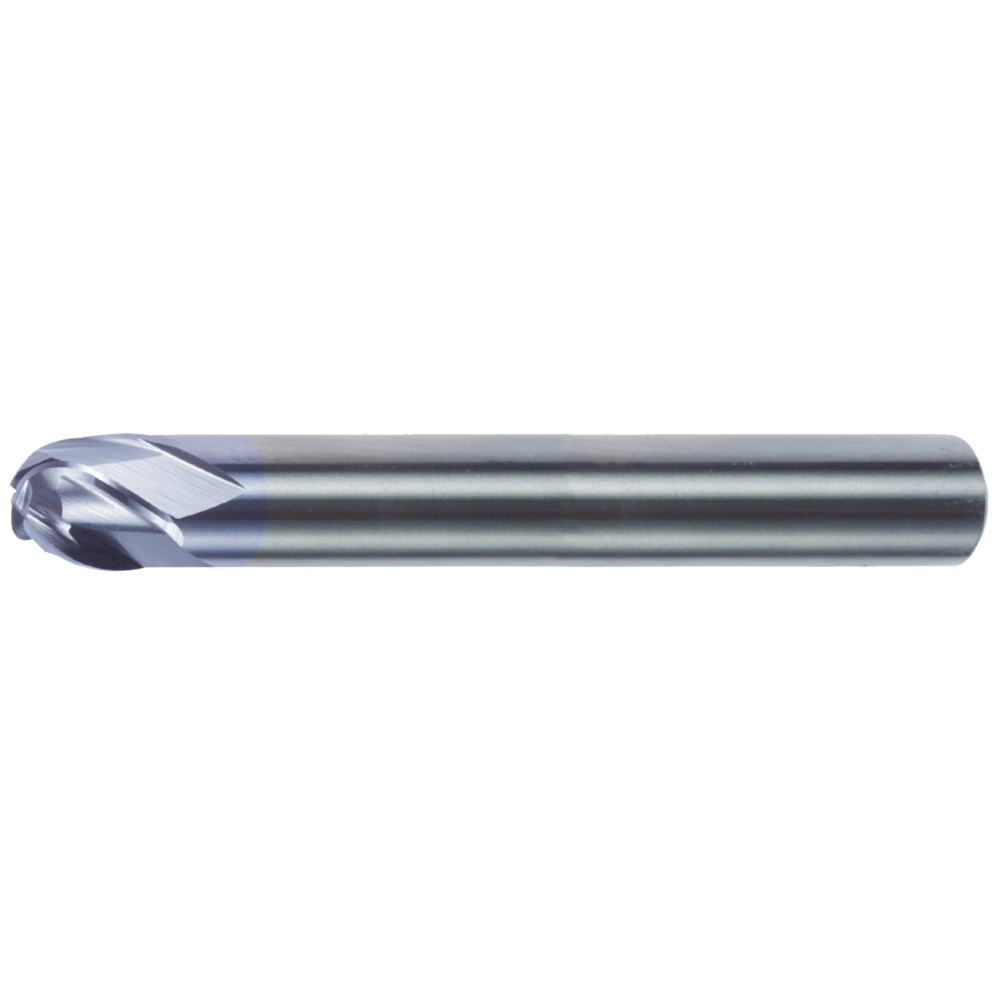

Solid carbide radius milling cutters 2mm Z=4 long, HA, TiAlN

Solid carbide radius milling cutters 2mm Z=4 long, HA, TiAlN
Solid carbide radius milling cutters 2mm Z=4 long, HA, TiAlN Solid carbide radius milling cutters 2mm Z=4 long, HA, TiAlN
Description
Radius milling cutter
  • Long version
  • Cutting material: ultra-fine grain solid carbide, TiAlN-coated

Article no./ATORN no.
2540130020
Packaging unit
1
Catalogue page
KS-0443
Cutting values
SW-0752
Stock status
in stock
External stock
available
Price
59,70 €
Add to shopping cart
Tool Finder

Technical characteristics

Application direction milling Application milling Coating Cutting data Cutting material D D1 Feed fz steel < 1000 N/mm² L L1 Tolerance of cutting edge diameter Tolerance of shank diameter Tool holding device Twist angle Z
Lining, ramping and drilling HSC TiAlN Cutting angle Information - yes Solid carbide 2,0 mm 6,0 mm 0,025 mm/tooth 50 mm 5 mm h9 h5 HA parallel shank 30° 4 pc.

Usage characteristics

aluminium < 8 % Si aluminium ≥ 8 % Si brass short cast iron GG/GTS cast iron GGG graphite hardened steel < 60 HRc hardened steel ≤ 55 HRC hardened steel ≤ 65 HRC stainless steel austenitic stainless steel duplex stainless steel ferrit./martens. steel < 1000 N/mm² steel < 1400 N/mm² steel < 700 N/mm² superalloys Fe/NiCo based < 30 HRC superalloys Fe/NiCo based ≥ 30 HRc titanium alloys

very suitable suitable

STEP Download
DXF Download
Catalogue page Download
Cutting values Download
