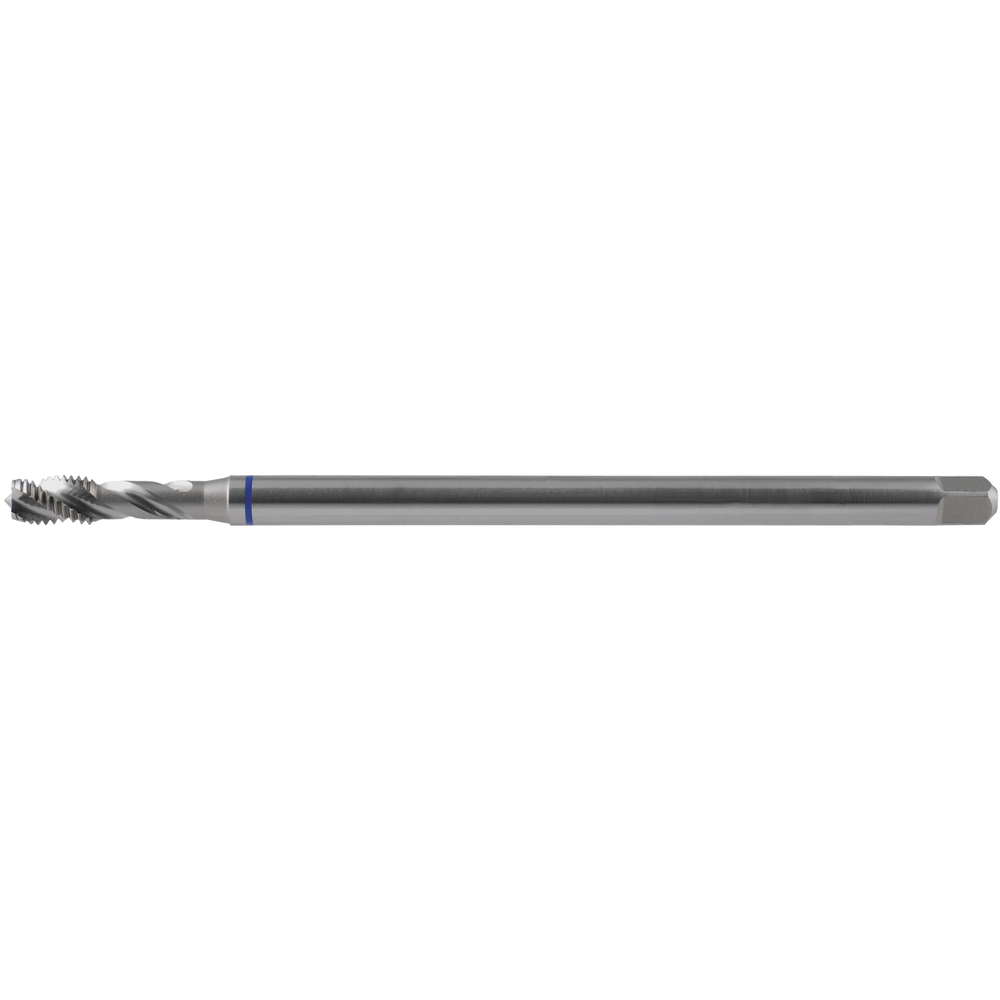

Machine tap HSS-E WN type C 40°, M6 blind-hole thread L=160mm

Machine tap HSS-E WN type C 40°, M6 blind-hole thread L=160mm
Machine tap HSS-E WN type C 40°, M6 blind-hole thread L=160mm Machine tap HSS-E WN type C 40°, M6 blind-hole thread L=160mm
Description
Machine tap, long
  • ISO 6H metric thread
  • 40°, spiral-fluted
  • Type C, 2-3 thread chamfer
  • Constructional dimensions similar to DIN 371 = up to M10, similar to DIN 376 = from M12
  • Cutting material: HSS-E
  • For blind-hole threads
  • Strong chip removal to the rear for long-chipping materials
  • Minimal thread relief grinding
  • Possible thread depth 2.5 x D

Machine tap, long
  • ISO 6H metric thread
  • 40°, spiral-fluted
  • Type C, 2-3 thread chamfer
  • Constructional dimensions similar to DIN 371 = up to M10, similar to DIN 376 = from M12
  • Cutting material: HSS-E
  • For blind-hole threads
  • Strong chip removal to the rear for long-chipping materials
  • Minimal thread relief grinding
  • Possible thread depth 2.5 x D

Article no./ATORN no.
1342200060 / 11290373
Packaging unit
1
Stock status
in stock
External stock
available
Price
46,90 €
Add to shopping cart
Tool Finder

Technical characteristics

C C Coating Coating Cutting data Cutting data Cutting material Cutting material D D D1 D1 DIN DIN Form/Chamfer Form/Chamfer L L L1 L1 L2 L2 Max. thread depth Max. thread depth Pitch Pitch Tapping hole Ø Tapping hole Ø Thread Thread Thread angle Thread angle Threaded hole type Threaded hole type Tolerance of screw taps Tolerance of screw taps Twist angle Twist angle
4,9 mm 4,9 mm uncoated uncoated Cutting angle Information - yes Cutting angle Information - yes HSSE HSSE M 6 mm M 6 mm 6 mm 6 mm Company standard Company standard C C 160 mm 160 mm 10 mm 10 mm 30 mm 30 mm 2,5xD 2,5xD 1 mm 1 mm 5,00 mm 5,00 mm M M 60 ° 60 ° Stud hole Stud hole ISO 2 (6H) ISO 2 (6H) 40° 40°

Usage characteristics

aluminium < 8 % Si aluminium < 8 % Si aluminium ≥ 8 % Si aluminium ≥ 8 % Si brass short brass short cast iron GG/GTS cast iron GG/GTS cast iron GGG cast iron GGG graphite graphite hardened steel < 60 HRc hardened steel < 60 HRc hardened steel ≤ 55 HRC hardened steel ≤ 55 HRC hardened steel ≤ 65 HRC hardened steel ≤ 65 HRC stainless steel austenitic stainless steel austenitic stainless steel duplex stainless steel duplex stainless steel ferrit./martens. stainless steel ferrit./martens. steel < 1000 N/mm² steel < 1000 N/mm² steel < 1400 N/mm² steel < 1400 N/mm² steel < 700 N/mm² steel < 700 N/mm² superalloys Fe/NiCo based < 30 HRC superalloys Fe/NiCo based < 30 HRC superalloys Fe/NiCo based ≥ 30 HRc superalloys Fe/NiCo based ≥ 30 HRc titanium alloys titanium alloys

very suitable suitable

Cutting values Download
Cutting values Download
STEP Download
