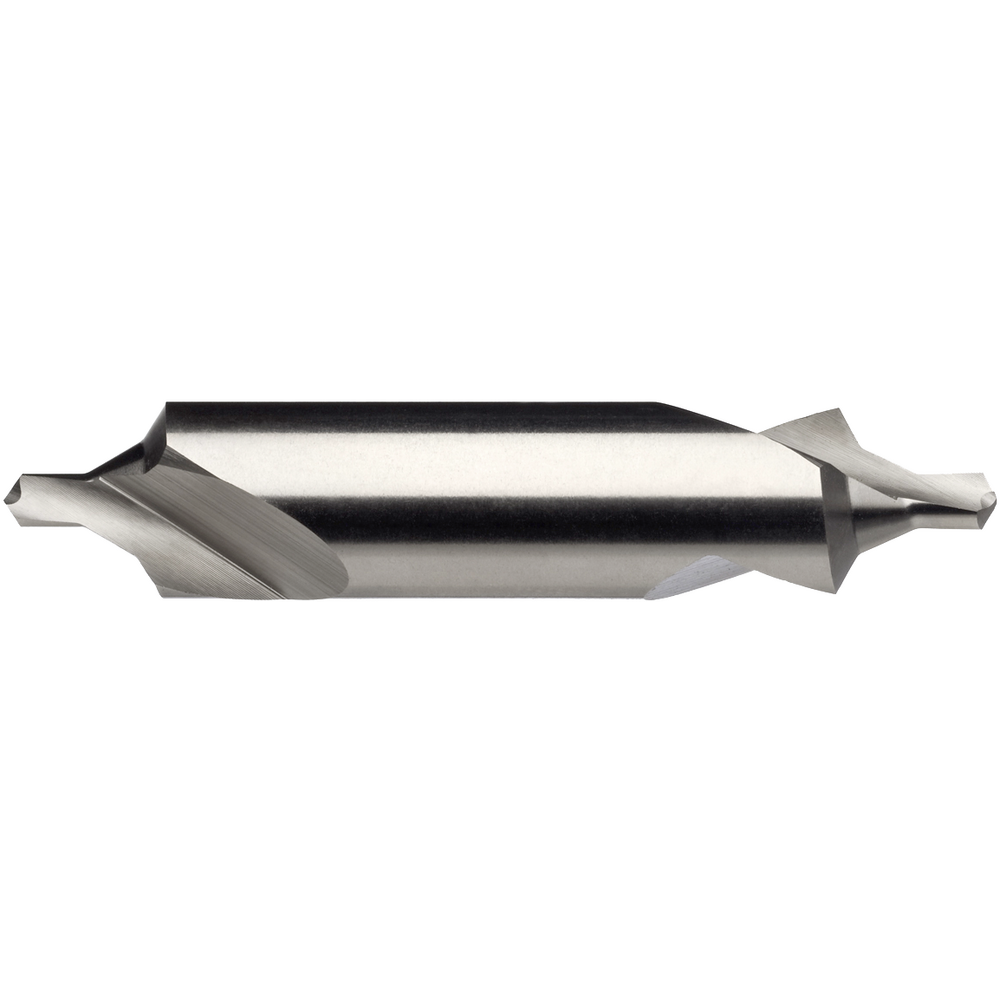

Centring drill DIN333 HSS type B 3,15mm

Centring drill DIN333 HSS type B 3,15mm
Centring drill DIN333 HSS type B 3,15mm Centring drill DIN333 HSS type B 3,15mm Centring drill DIN333 HSS type B 3,15mm
Description
Centring drills with protected centre
  • For centring holes with protected centre DIN 332 B
  • 60° centre holes, 120° tapered countersunk recess
  • Application of the workpiece to the centre point over a large surface area with the advantages of a bell-type countersink
  • Suitable for workpieces which are subject to deformation tension during machining
  • Spiral-fluted, bare surface

Article no./ATORN no.
1001050315 / 10440081
Packaging unit
1
Catalogue page
KS-0058
Cutting values
SW-0356
Stock status
in stock
Price
15,60 €
Add to shopping cart
Tool Finder

Technical characteristics

A-Maß Anzahl Spitzen Coolant supply Countersink angle Cutting data Cutting material D D1 DIN Drallwinkel Durchmesser 2 Eignung Edelstahl gesamt Eignung nicht Eisen gesamt Eignung Titan/Nickel/Super gesamt f Stahl 700 Feed f steel < 1000 N/mm² fitness hartl total Form Halslänge Kraglänge L L1 min./max. Nutzlänge Schneidendurchmesser max. Schneidendurchmesser min. Schneidendurchmesser min./max. Schneidenlänge 2 Schneidenlänge max. Schneidenlänge min. Schnittgeschwindigkeit (Bronze kurz) Eignung Schnittgeschwindigkeit (Bronze kurz) Vc Schnittgeschwindigkeit (Bronze lang) Eignung Schnittgeschwindigkeit (Bronze lang) Vc Schnittgeschwindigkeit (Kunststoff ) Eignung Schnittgeschwindigkeit (Kunststoff ) Vc Schnittgeschwindigkeit (Messing lang) Eignung Schnittgeschwindigkeit (Messing lang) Vc Spannutlänge Spitzenwinkel Surface Tolerance of cutting edge diameter Tolerance of shank diameter Tool holding device Z
0,95 mm 2 pc. External 60 ° Cutting angle Information - yes HSS 3,15 mm 11,2 mm 333 13° 12,50 mm 3 1 3 0,05 mm/rev 0,07 mm/rev 3 B 8,19 mm 31,00 mm 60 mm 3,9-4,4 mm 8,19 mm 4,0 mm 1,6 mm 1,6-4,0 mm 4,25 mm 4,4 mm 3,9 mm 1 35,00 m/min 1 30,00 m/min 1 20,00 m/min 1 35,00 m/min 19,50 mm 118 ° Uncoated k12 h7 HA parallel shank 2 pc.

Usage characteristics

aluminium < 8 % Si aluminium ≥ 8 % Si brass short cast iron GG/GTS cast iron GGG graphite hardened steel < 60 HRc hardened steel ≤ 55 HRC hardened steel ≤ 65 HRC stainless steel austenitic stainless steel duplex stainless steel ferrit./martens. steel < 1000 N/mm² steel < 1400 N/mm² steel < 700 N/mm² superalloys Fe/NiCo based < 30 HRC superalloys Fe/NiCo based ≥ 30 HRc titanium alloys

very suitable suitable

STEP Download
DXF Download
ASSET_MatSafetyDataSheet Download
Catalogue page Download
Cutting values Download
