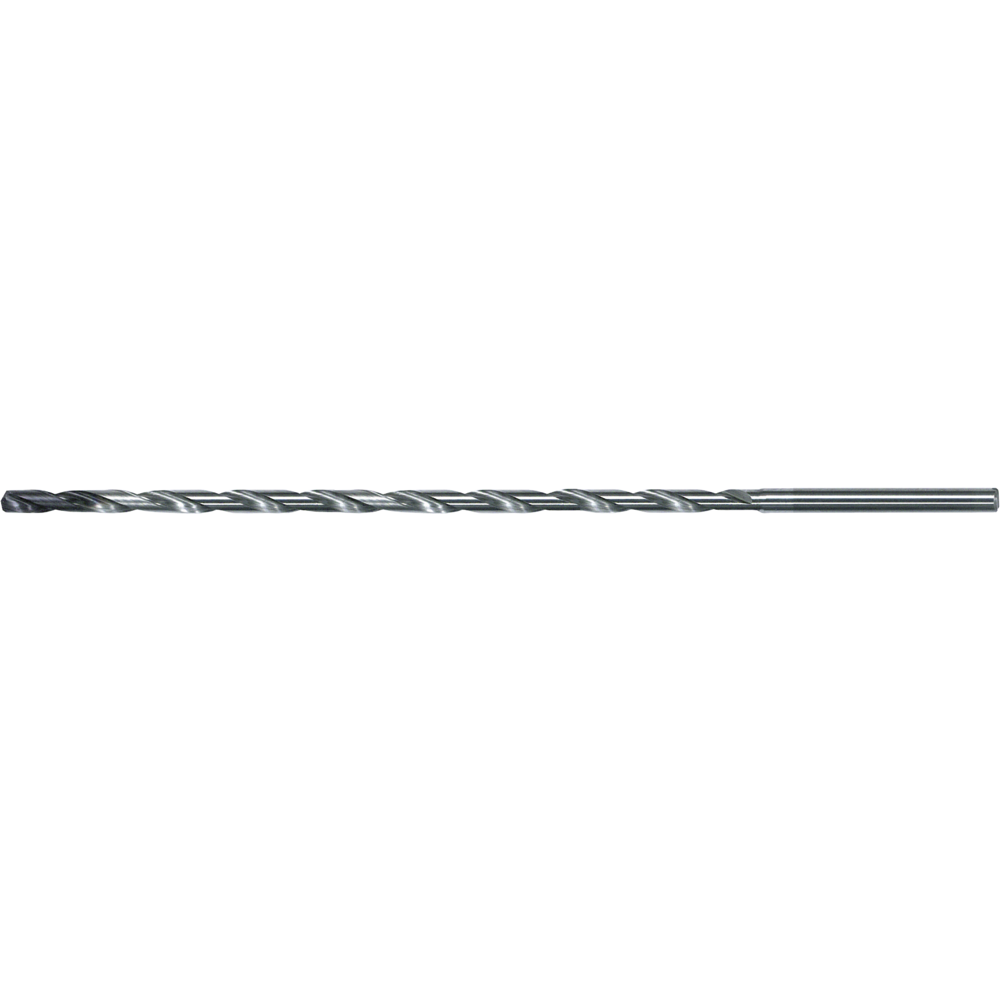

High-performance drill, solid carbide 15xD ADO 3.7 mm IC D1=HA TiAlN

High-performance drill, solid carbide 15xD ADO 3.7 mm IC D1=HA TiAlN
High-performance drill, solid carbide 15xD ADO 3.7 mm IC D1=HA TiAlN High-performance drill, solid carbide 15xD ADO 3.7 mm IC D1=HA TiAlN High-performance drill, solid carbide 15xD ADO 3.7 mm IC D1=HA TiAlN
Description
Solid carbide deep-hole drill ADO-15D
  • With optimised shank diameter tolerance, suitable for use in shrink-fit holders
  • Cutting material: SC EgiAs-coated
  • High-performance drill for cost-efficient manufacturing of deep bores up to 15xD with no step
  • Optimum chip removal with special cutting geometry and large chip spaces
  • True running accuracy of the tool when clamped: max. 0.02mm
  • Cutting edge tolerance e8

Programme expanded - now from Ø 2 mm

Solid carbide deep-hole drill ADO-15D
  • With optimised shank diameter tolerance, suitable for use in shrink-fit holders
  • Cutting material: SC EgiAs-coated
  • High-performance drill for cost-efficient manufacturing of deep bores up to 15xD with no step
  • Optimum chip removal with special cutting geometry and large chip spaces
  • True running accuracy of the tool when clamped: max. 0.02mm
  • Cutting edge tolerance e8

Article no./ATORN no.
1117160037
Vendor Article no.
8698370
Packaging unit
1
Catalogue page
KS-0140
Cutting values
SW-0374
Stock status
subsequent delivery
External stock
available
Price
210,00 €
Add to shopping cart
Tool Finder

Technical characteristics

Coating Coating Coolant design Coolant supply Cutting data Cutting data Cutting material Cutting material D D D1 D1 h6 DIN Drilling depth Feed f steel < 1000 N/mm² Feed f steel < 1000 N/mm² L L L1 L1 Max. drilling depth (D) Point angle S Shank Spiral angle Standard constructional dimensions DIN Tool holding device Twist angle Type Type
TiAlN TiAlN Internal axial Internal axial Cutting angle Information - yes Cutting angle Information - yes Solid carbide Solid carbide 3,7 mm 3,7 mm 4 mm 4 mm Non-DIN 15xD 0,07 mm/rev 0,07 mm/rev 125 mm 125 mm 65 mm 65 mm 15xD Point angle 140° mm 140 ° Straight, DIN 6535 HA 30° RH helix angle Non-DIN Cylinder shaft HA 30° (rights) Type TLP Typ TLP

Usage characteristics

aluminium < 8 % Si aluminium < 8 % Si aluminium ≥ 8 % Si aluminium ≥ 8 % Si brass short cast iron GG/GTS cast iron GG/GTS cast iron GGG cast iron GGG copper Cu-alloy graphite graphite hardened steel < 55 HRc hardened steel < 60 HRc hardened steel < 60 HRc hardened steel ≤ 55 HRC hardened steel ≤ 65 HRC hardened steel ≥ 60 HRc stainless steel austenitic stainless steel austenitic stainless steel duplex stainless steel duplex stainless steel ferrit./martens. stainless steel ferrit./martens. steel < 1000 N/mm² steel < 1000 N/mm² steel < 1400 N/mm² steel < 1400 N/mm² steel < 700 N/mm² steel < 700 N/mm² superalloys Fe/NiCo based < 30 HRC superalloys Fe/NiCo based < 30 HRC superalloys Fe/NiCo based ≥ 30 HRc superalloys Fe/NiCo based ≥ 30 HRc titanium alloys titanium alloys

very suitable suitable

Catalogue page Download
Cutting values Download
Catalogue page Download
Cutting values Download
