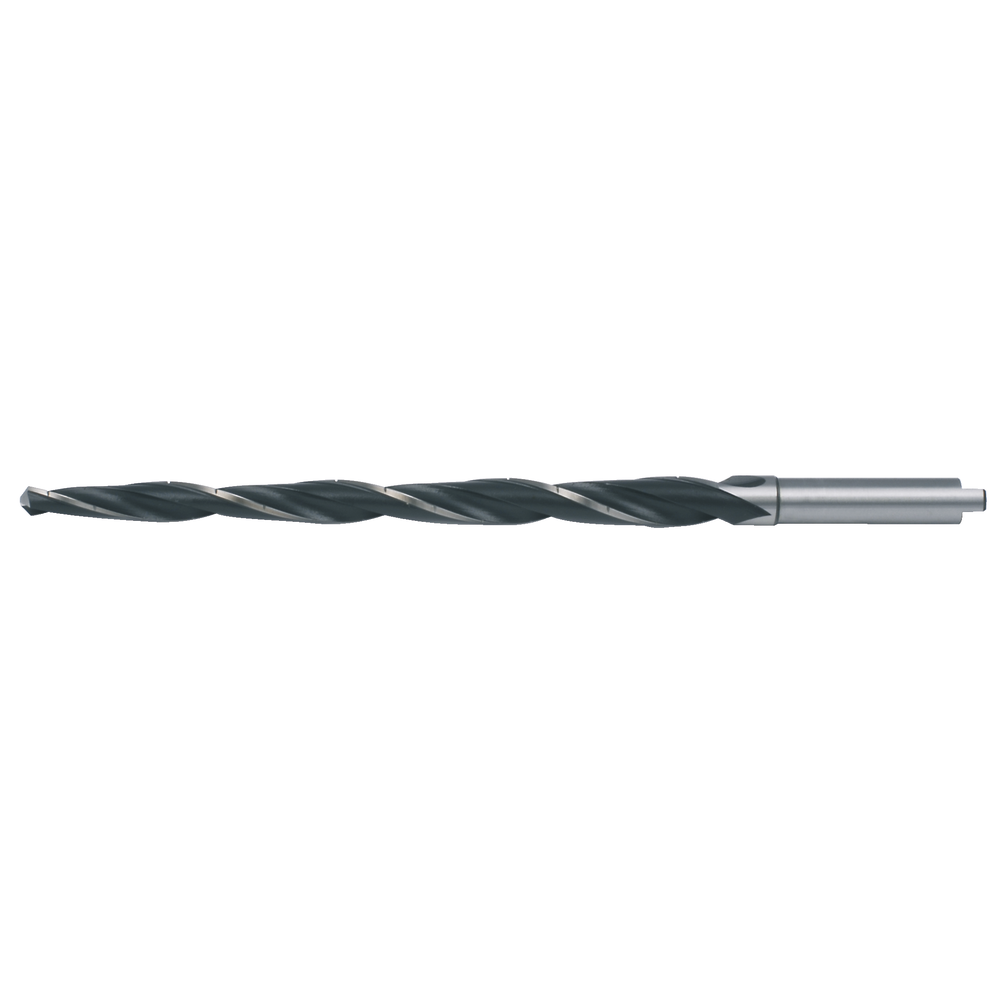

Conical pin-hole drill HSS 28° DIN1898A 118° 6mm

Conical pin-hole drill HSS 28° DIN1898A 118° 6mm
Conical pin-hole drill HSS 28° DIN1898A 118° 6mm Conical pin-hole drill HSS 28° DIN1898A 118° 6mm
Description
Pin hole drills
  • Cutting edges with conical gradient and chip-breaking flutes
  • Used to drill conical drill holes 1:50 for taper pins in compliance with ISO 2339 (DIN 1) and ISO 8736 (DIN 7978) in one operation.
  • Further sizes available on request
  • Driving plane in accordance with DIN 1809
  • Note: drill using a low feed rate

Article no./ATORN no.
1010250600 / 10646006
Packaging unit
1
Stock status
subsequent delivery
Price
105,50 €
Add to shopping cart
Tool Finder

Technical characteristics

Coating Coolant supply Cutting data Cutting material D D max. D min. D1 DIN Feed f steel < 700 N/mm² L L1 S Tool holding device Twist angle
uncoated 0 - nicht applicable Cutting angle Information - yes HSS 6,0 mm 8,00 mm 5,9 mm 8,00 mm 1898A 0,05 mm/rev 160 mm 105 mm 118 ° Parallel shank with chuck arbour 25°

Usage characteristics

aluminium < 8 % Si aluminium ≥ 8 % Si brass short cast iron GG/GTS cast iron GGG graphite hardened steel < 60 HRc hardened steel ≤ 55 HRC hardened steel ≤ 65 HRC stainless steel austenitic stainless steel duplex stainless steel ferrit./martens. steel < 1000 N/mm² steel < 1400 N/mm² steel < 700 N/mm² superalloys Fe/NiCo based < 30 HRC superalloys Fe/NiCo based ≥ 30 HRc titanium alloys

very suitable suitable

Cutting values Download
