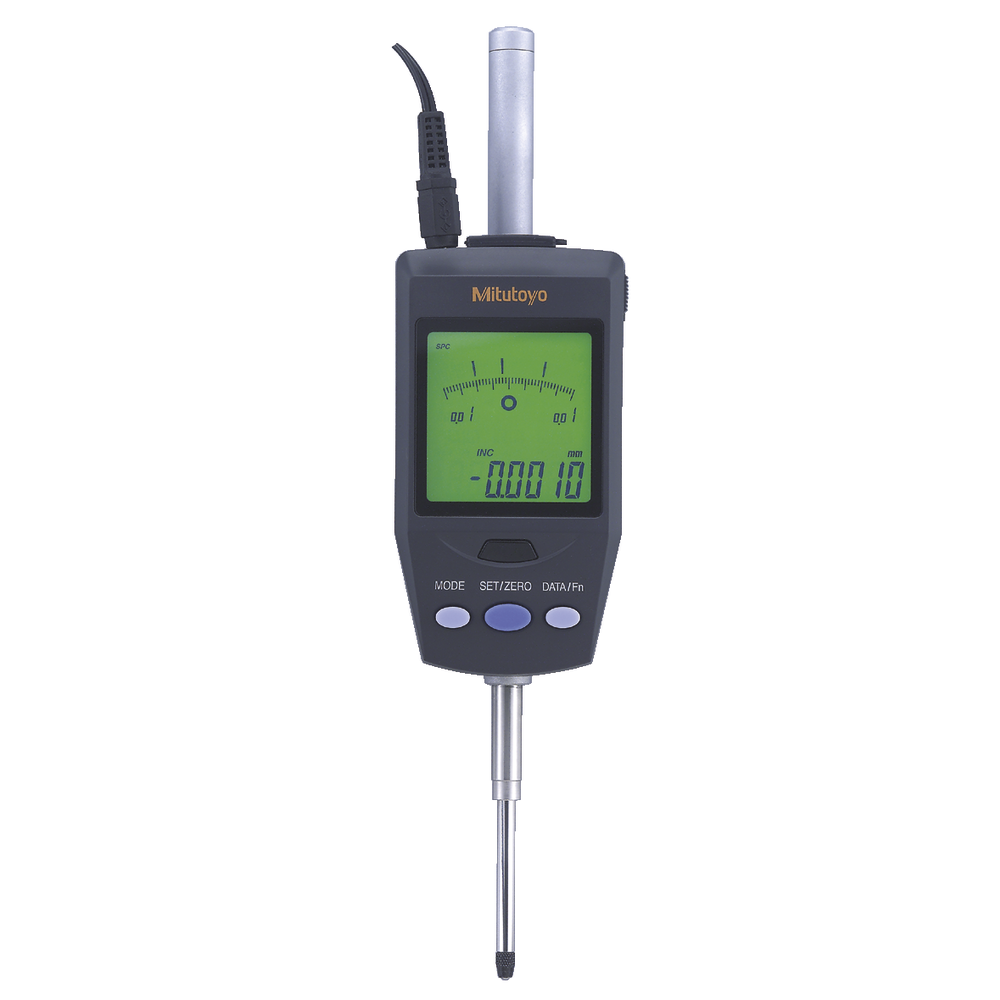

Digital dial indicator 30mm (0,001/0,0005mm) ID-H

Description

Digital dial indicator IDH

Can be remote controlled
Power supply via mains adapter
Photoelectric backlit glass scale
Max. travel speed 1,000 mm/sec.
Backlit LCD display
Combined digital and analogue display
Max., min. or difference values (TIR) can be selected for run-out measurements
Optional remote control available
Combined Digimatic / RS-232 C interface data output, can be used in both directions
Clamping shank Ø 8 mm
Functions: ON/OFF, MODE for switching from normal mode to tolerance evaluation, resolution for digital and analogue display, setup menu, MAX, MIN and TIR, toggle between 0.001 mm and 0.01 mm, (+/-) sign selection, SET/ZERO for confirming inputs and the display zero point, DATA/fn for data transfer and keypad lock
Supplied in moulded packaging with mains adapter and factory certificate
Optional accessories: Digimatic cable type D, no. 563100 0031 (1 m), no. 563100 0032 (2 m), USB cable type D-USB, no. 563110 0004

Dial indicator

Article no./ATORN no.

5120350030

Vendor Article no.

543-561D

Packaging unit

Catalogue page

KS-1418

Stock status

in stock

External stock

available

940,00 €

Add to shopping cart

Compare

Tool Finder

Technical characteristics

Data transmission type	Digit increment	DIN	Display	Error limit	Function	Included in delivery	Measurement range	Measuring force max.	Measuring functions	Output data format	Packaging / Shipment	Power supply	Reading	Standard constructional dimensions DIN
DIGIMATIC/USB	0,001 / 0,0005 mm	Company standard	Digital	0,002 mm	Run-out measurement	Manufacturer’s test certificate	30,4 mm	2,0 N	Run-out measurement	Digimatic	Manufacturer’s test certificate	Power supply	0,001 / 0,0005 mm	Non-DIN

Available options to this article:

	Factory calibration dial indicator 0-30 mm Article no.: 073009W005	20,00 € ^[^<>'""%%!/#\\}$%:;)(^{*=\|']+$
	Inspection plate - next interval in months Article no.: 0790010013 *	0,80 € You are only allowed to insert numbers.
	G r a v u r e: Article no.: 0790010001 *	5,50 € You entered invalid digits.

Catalogue page	Download
Catalogue page	Download
