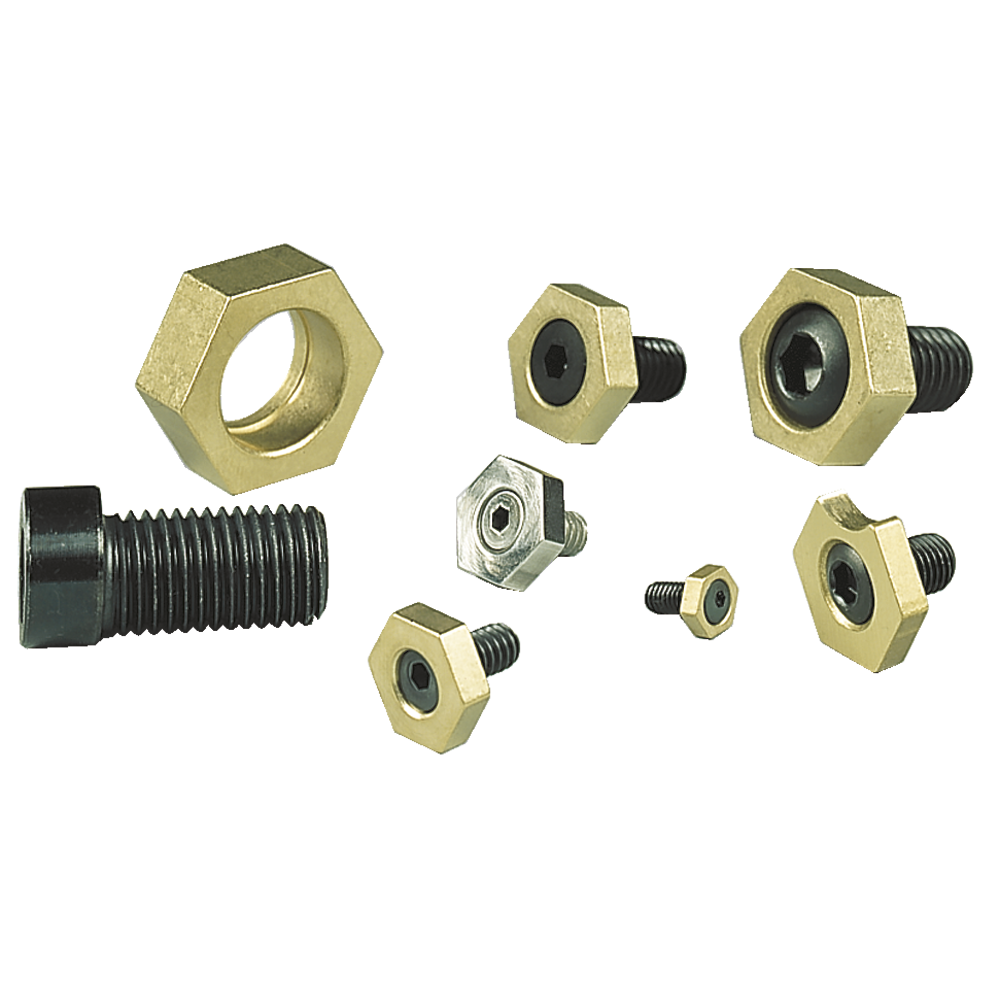

Eccentric clamp M 8x1,25 V2A (set of 4 pcs.)

Eccentric clamp M 8x1,25 V2A (set of 4 pcs.)
Eccentric clamp M 8x1,25 V2A (set of 4 pcs.) Eccentric clamp M 8x1,25 V2A (set of 4 pcs.) Eccentric clamp M 8x1,25 V2A (set of 4 pcs.) Eccentric clamp M 8x1,25 V2A (set of 4 pcs.) Eccentric clamp M 8x1,25 V2A (set of 4 pcs.)
Description
Eccentric clamps
  • For fixture plates
  • Eccentric head causes the clamping motion and clamping force (up to 27 kN)
  • The hexagonal brass washer acts as a clamp
  • Any workpiece shape can be clamped with positioning pins and one or two clamping screws
  • Low height allows workpiece surfaces to be machined easily
  • No need to consider the position of clamping claws in CNC programming
  • Space-saving multi-clamping due to low height

Eccentric anchor clamps
Article no./ATORN no.
4750010015
Vendor Article no.
X50207
Packaging unit
1
Catalogue page
KS-1299
Stock status
subsequent delivery
Price
136,50 €
Add to shopping cart
Tool Finder

Technical characteristics

Clamp force Contents Eccentric travel Interior hexagon Thread Thread length Wr. width Wr. width height
3,63 kN 4 units 1 mm 5 mm M8/V2A 16 mm 20 mm 6,4 mm
Catalogue page Download
Spare screws M8 V2A (set of 8 pcs.)
Being ordered
202,00 €
Order quantity
Spare hexagonal washers M8 V2A (set of 8 pcs.)
Being ordered
102,00 €
Order quantity
