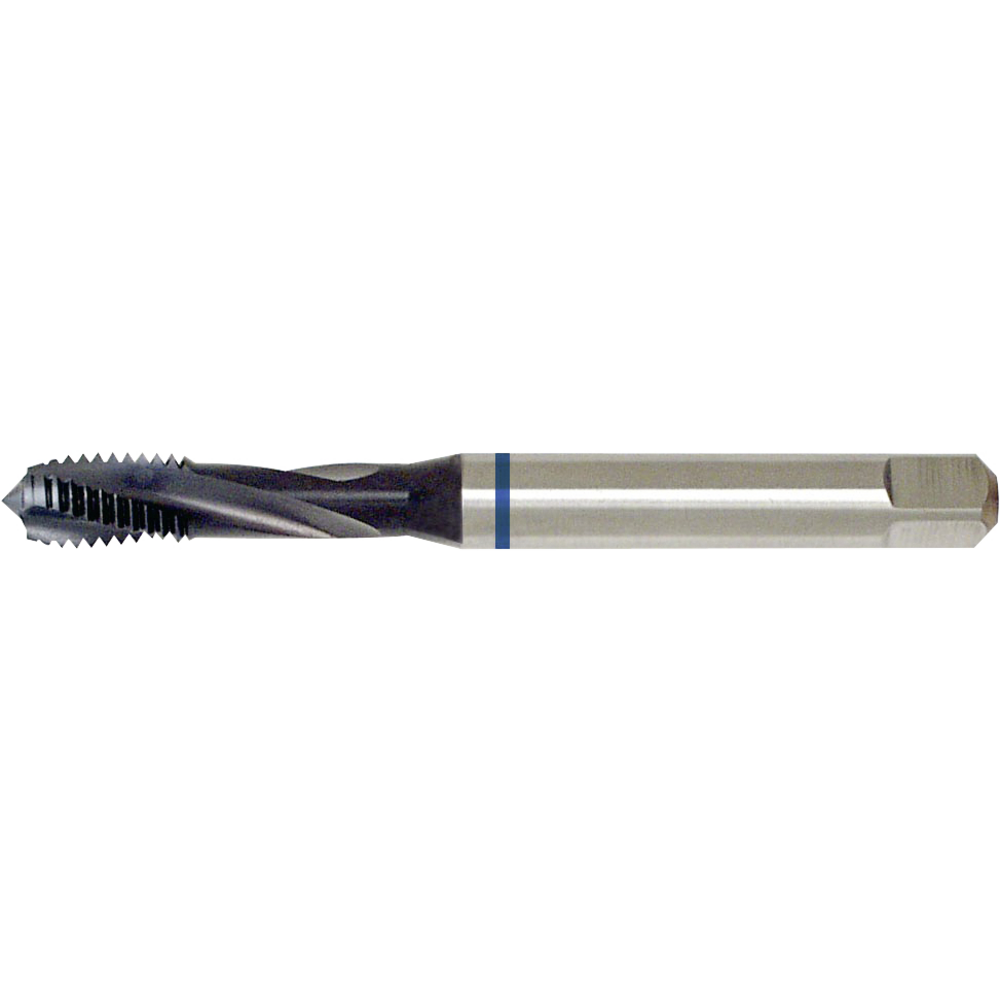

Machine tap HSS-E DIN376C 15° M16 blind-hole thread TiCN

Machine tap HSS-E DIN376C 15° M16 blind-hole thread TiCN
Machine tap HSS-E DIN376C 15° M16 blind-hole thread TiCN Machine tap HSS-E DIN376C 15° M16 blind-hole thread TiCN
Description
Supplier and manufacturer catalogues
ATORN brand catalogue
Article no./ATORN no.
1341900160 / 11290287
Packaging unit
1

We charge a material cost surcharge of 6,90% on this product.


Price
81,00 €
The item is currently not available to order. Please contact your customer manager.

Technical characteristics

Application type/machine type CNC;Konventionell
C 9 mm
Coating TiCN
Colour ring system Stähle
Coolant supply Extern
Cutting material HSSE
D M16
D1 12 mm
Design TiCN
DIN 376
Form/Chamfer C
Harmonized System Code 82074010
ISO code Stahl
L 110 mm
L1 28 mm
Max. thread depth 2xD
Nominal diameter 02
Nominal diameter 16 mm
Pitch 2 mm
Shank style Zylindrisch mit Vierkantantrieb
Spiral angle 15° RH helix angle
Suitable for thread M3-M20
Surface TiCN
Tapping hole Ø 14.00 mm
Thread ISO metric thread
Thread angle 60° thread angle °
Thread dimension M16
Threaded hole type Grundloch ≤ 2xD
Tolerance of screw taps 6H
Tool types according to DIN 4000 BGN1 - Gewindebohrer mit abgesetztem Schaft
Twist angle 15° (rechts)
WEEE (taking back waste electrical and electronic equipment) 0 - nicht zutreffend

Usage characteristics

steel < 1000 N/mm²
steel < 700 N/mm²

very suitable
suitable
