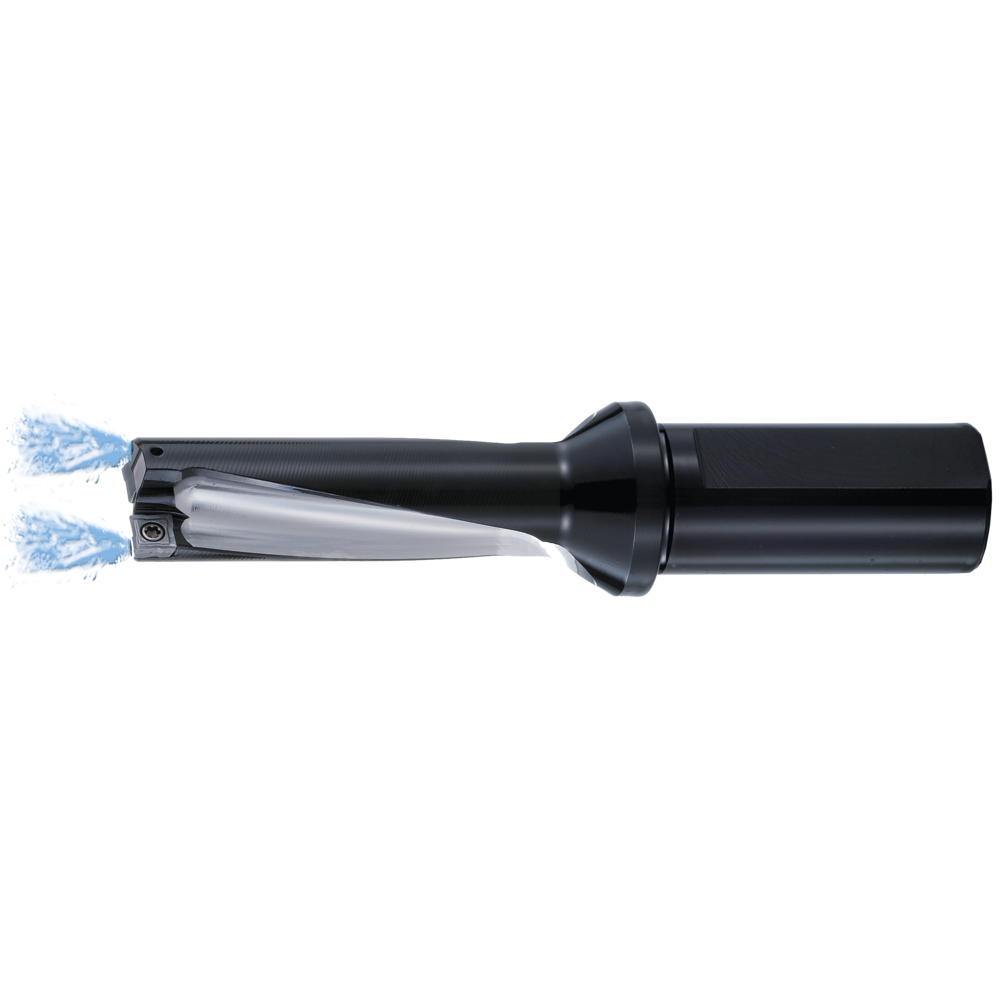

Wendeplatten-Vollbohrer P3D 3xD 25,5mm Typ B

Wendeplatten-Vollbohrer P3D 3xD 25,5mm Typ B
Wendeplatten-Vollbohrer P3D 3xD 25,5mm Typ B Wendeplatten-Vollbohrer P3D 3xD 25,5mm Typ B Wendeplatten-Vollbohrer P3D 3xD 25,5mm Typ B
Price
392,00 €
prices excl. vat plus shipping costs

Stock status
subsequent delivery
Tool Finder
Range expanded

Indexable inserts solid drill bits PHOENIX PD
  • Optimised substrate geometry for increased stability, improved chip removal and reduced cutting forces
  • Available in tool lengths of 2xD, 3xD, 4xD and 5xD
  • Diameter 12-63mm
  • Wide range of applications in steel, stainless steel, cast iron and aluminium materials
  • Short chips due to additional chip breaker in the chip flute
  • High efficiency thanks to 4 effective cutting edges per indexable insert
  • Same indexable insert can be used as centre and periphery plate
  • With internal coolant supply
  • Please note: Supplied without chuck key (Torx-Plus), please order separately!

P3D - 3xD
  • Bore tolerances:
    Ø 15-20.5 mm > 0/+0.25 mm; Ø 21-49 mm > 0/+0.3 mm; Ø 50-63 mm > 0/+0.35 mm

Range expanded

Indexable inserts solid drill bits PHOENIX PD
  • Optimised substrate geometry for increased stability, improved chip removal and reduced cutting forces
  • Available in tool lengths of 2xD, 3xD, 4xD and 5xD
  • Diameter 12-63mm
  • Wide range of applications in steel, stainless steel, cast iron and aluminium materials
  • Short chips due to additional chip breaker in the chip flute
  • High efficiency thanks to 4 effective cutting edges per indexable insert (from Ø 15 mm)
  • Same indexable insert can be used as centre and periphery plate
  • With internal coolant supply
  • Please note: Supplied without clamping key (Torx-Plus), please order separately.

P3D - 3xD
  • Bore tolerances:
    Ø 15-20.5 mm > 0/+0.25 mm; Ø 21-49 mm > 0/+0.3 mm; Ø 50-63 mm > 0/+0.35 mm

Article no./ATORN no.
1242031255
Vendor Article no.
7803295
Packaging unit
1
Catalogue page

Technical characteristics

Coolant design Internal axial
Coolant supply Intern axial
Cutting data Cutting angle Information - yes
Cutting data Cutting angle Information - yes
DIN ohne DIN
Drilling depth 3xD
Max. drilling depth (D) 3xD
Shank Straight with driving plane
Standard constructional dimensions DIN Non-DIN
Tool holding device Zylinderschaft HB

Usage characteristics

cast iron GG/GTS
cast iron GGG
stainless steel austenitic
stainless steel austenitic
stainless steel duplex
stainless steel ferrit./martens.
stainless steel ferrit./martens.
steel < 1000 N/mm²
steel < 1000 N/mm²
steel < 1400 N/mm²
steel < 1400 N/mm²
steel < 700 N/mm²
steel < 700 N/mm²
superalloys Fe/NiCo based < 30 HRC
superalloys Fe/NiCo based < 30 HRC
titanium alloys
titanium alloys

very suitable
suitable
